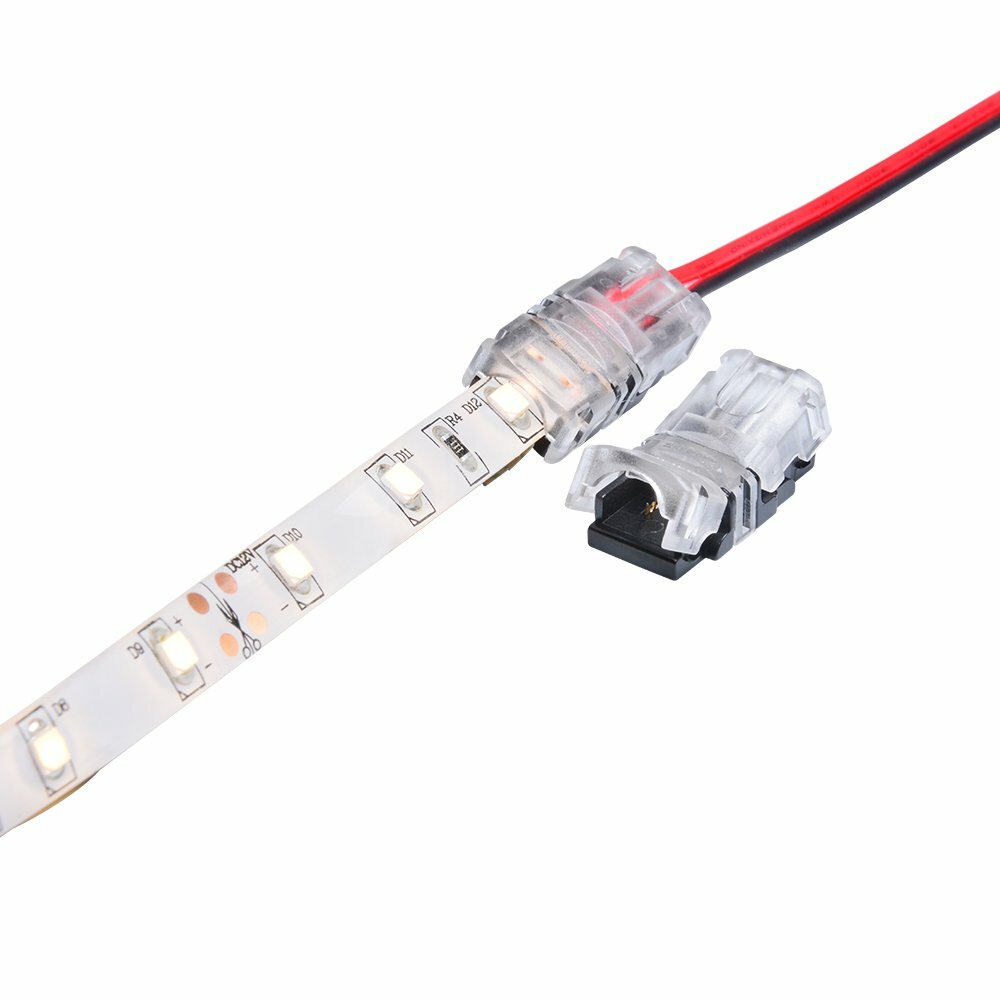

10 PCS LED Connector for Strip Light 8mm 2 Pin Strip to Wire Connector
Store category Sign Up Now ! You may also like 10x 2-Pin Strip to Wire Quick Connector for Non-Waterproof 8mm LED Strip Light Product Description Improvement Connect--Insulation-Piercing Contact--The sharp pin of connector can pierce flexible PCB board on the backing of strip light and make contact inside PCB thickness without soldering.--The sharp pin of connector can pierce insulation of wire to contact conductor inside wire without stripping. NOTE: 1. Make sure your LED light strip is 8mm width 2 pin NON-WATERPROOF single color strip light. Not work for waterproof or 10mm width led strip lights.2. Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire. Installation Guides--Strip End 1.Ensure your LED light strip is waterproof 10mm width and has 2 contacts (+, -). All contacts are clean and cut the strip straightly.2.Open the transparent cover of connector up to 90 degrees.3.Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the LED light strip into clasp side, with the 2 contacts of the LED strip sitting on the 2 pins of the clasp.--Wire End 1.Cut the desired wire length you need and separated the 2 wires (20-22AWG) around connection part.2. Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires.3.Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface)Tools Need: A pliers Package includes 10x Strip to Wire Connectors for 8mm Width Non-Waterproof 2 Pin LED Strip Light Payment Delivery details About Return Contact us Terms of sale Payment Accept PayPal Only! Delivery details Ship to US only. EXCLUDES: APO/FPO, Alaska, Hawaii, Guam, Puerto Rico, Virgin Island and US Territories. Ship to eBay registered address, buyer please contact us via eBay message to notify any changed address. Seller are not responsible for any wrong or undeliverable address. About Return Item returned must be labelled with a Return Merchandise Authorization (RMA) Number. Please do Contact us for the RMA number before return it. Replacement or full refund will be made for defective products returned without any hesitance. Contact us We have 100% satisfactory guarantee, if you are not satisfied with your purchase for any reason, please DO contact us and we will help And normally emails will be responsed within 1 business day. Terms of sale High quality and reliable. When purchasing our products, you can expect quality in both the material and performance of the items backed by amazing customer service and support. All items will be always reasonably priced. Feedback
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| LED Chip Code | 5050/3528 |
| Power Source | Corded |
| Color | Black |
| MPN | Does Not Apply |
| Material | Plastic |
| Installation Area | Indoor |
| Brand | SUPERNIGHT |
| Connectors | 2 Pin |
| Bulb Shape Code | 3528/5050 |
| Type | Wire Connector |
| IP Rating | non waterproof |
| Voltage | 12 V |
| Model | 2-Pin Quick Connector |
| Amperage | 5 A |
| Features | For non waterproof |
| LED String/Strip Type | WS2812 |
| Country/Region Of Manufacture | China |
| Output Voltage | 12 V |
| Lighting Technology | LED |
