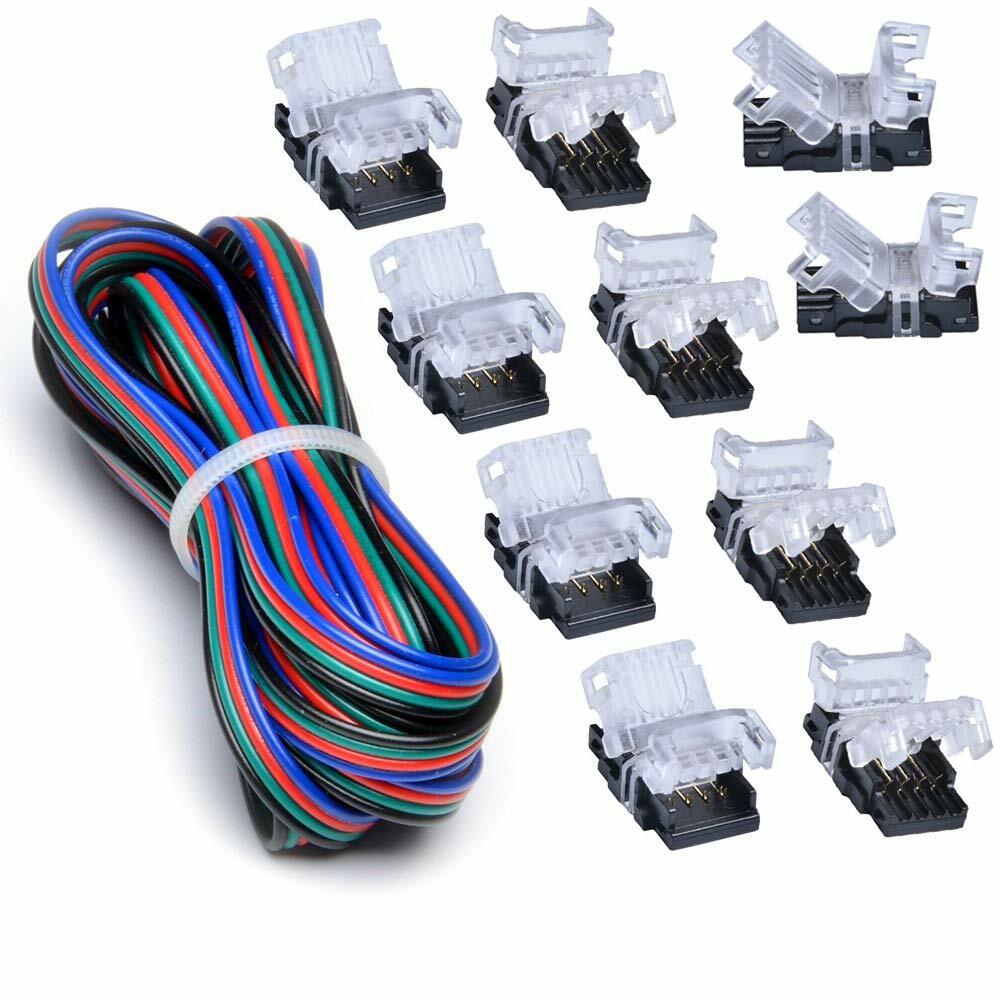

10PCS 4-Pin Quick Connector for 10mm RGB Waterproof LED Strip+5M Extension Cable
Product DescriptionThese NEWEST DESIGN strip to wire connectors are solution for waterproof 10mm 5050 5630 RGB LED light strip connection and extension needs, DIY extension for whatever the wire length you want to connect. About this item1-Connect strip to wire without stripping insulation, no soldering, no need to peel off the waterproof cover, quick and flexible connection, save 2/3 time2-Work for IP65 PU surface waterproof (not Silicone surface)10mm width 5050 5630 RGB 4 pin strip light 30-120 LEDs/Meter, suit for 22-20 AWG Solid Wire / Strand Wire.3-Compatible with 5v, 12v, 24v led strips, support up to 5A ( R, G, B 3 channel ) current-carrying, allow you to connect longer LED strips by one connector.4-DIY led strip to wire connection length you want, no matter strip-to-wire extension or strip-to-strip jumper, free from the limit of terminal position5-High-quality PVC plastic wire cover and tin-plated copper core ensure steady, safety and long-lasting connection; Fire-proof Nylon housing and high precision brass connector is durable and powerful, firmly bite through the led light strip, much stronger than old-style connectorsNOTE:Make sure your LED light strip is 10mm width 4 pin IP65 WATERPROOF RGB strip light. Not work for non-waterproof or 8mm width led strip lights.Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire.Installation GuidesStrip EndEnsure your LED light strip is waterproof 10mm width and has 4 contacts (+, B, R, G). All contacts are clean and cut the strip straightly.Open the transparent cover of connector up to 90 degrees.Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the waterproof LED light strip into clasp side, with the 4 contacts of the LED strip sitting on the 4 pins of the clasp. (Note: No need to peel off the silicone on the surface of led strip around soldering line area)Close the clasp down with force by pliers.Wire EndCut the desired wire length you need and separated the 4 wires (20-22AWG) around connection part.Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires.Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface)Tools Need: A pliersPackage includes10x Strip to Wire Connectors for 10mm Width Waterproof RGB LED Strip1x 16.4ft 22 Gauge 4 Conductor Extension CablePayment Delivery detailsShip to US only. EXCLUDES: APO/FPO, Alaska, Hawaii, Guam, Puerto Rico, Virgin Island and US Territories.Ship to eBay registered address, buyer please contact us via eBay message to notify any changed address.Seller are not responsible for any wrong or undeliverable address.Contact usWe have 100% satisfactory guarantee, if you are not satisfied with your purchase for any reason, please DO contact us and we will help to resolve your problem.And normally emails will be responsed within 1 business day.Item returned must be labelled with a Return Merchandise Authorization (RMA) Number.Please do Contact us for the RMA number before return it.Replacement or full refund will be made for defective products returned without any heisitance.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Features | Waterproof |
| Connectors | 4 Pin |
| MPN | Does Not Apply |
| Department | Adults |
| Voltage | 12V/24V |
| Lighting Technology | LED |
| IP Rating | IP65 |
| Country/Region Of Manufacture | China |
| Model | 4-Pin Quick Connector |
| LED Chip Code | 5050 |
| Bulb Shape Code | 5050/3528 |
| Brand | SUPERNIGHT |
| Color | White |
| Output Voltage | 12V/24V |
| Installation Area | Indoor & Outdoor |
Product DescriptionThese NEWEST DESIGN strip to wire connectors are solution for waterproof 10mm 5050 5630 RGB LED light strip connection and extension needs, DIY extension for whatever the wire length you want to connect. About this item1-Connect strip to wire without stripping insulation, no soldering, no need to peel off the waterproof cover, quick and flexible connection, save 2/3 time2-Work for IP65 PU surface waterproof (not Silicone surface)10mm width 5050 5630 RGB 4 pin strip light 30-120 LEDs/Meter, suit for 22-20 AWG Solid Wire / Strand Wire.3-Compatible with 5v, 12v, 24v led strips, support up to 5A ( R, G, B 3 channel ) current-carrying, allow you to connect longer LED strips by one connector.4-DIY led strip to wire connection length you want, no matter strip-to-wire extension or strip-to-strip jumper, free from the limit of terminal position5-High-quality PVC plastic wire cover and tin-plated copper core ensure steady, safety and long-lasting connection; Fire-proof Nylon housing and high precision brass connector is durable and powerful, firmly bite through the led light strip, much stronger than old-style connectorsNOTE:Make sure your LED light strip is 10mm width 4 pin IP65 WATERPROOF RGB strip light. Not work for non-waterproof or 8mm width led strip lights.Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire.Installation GuidesStrip EndEnsure your LED light strip is waterproof 10mm width and has 4 contacts (+, B, R, G). All contacts are clean and cut the strip straightly.Open the transparent cover of connector up to 90 degrees.Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the waterproof LED light strip into clasp side, with the 4 contacts of the LED strip sitting on the 4 pins of the clasp. (Note: No need to peel off the silicone on the surface of led strip around soldering line area)Close the clasp down with force by pliers.Wire EndCut the desired wire length you need and separated the 4 wires (20-22AWG) around connection part.Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires.Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface)Tools Need: A pliersPackage includes10x Strip to Wire Connectors for 10mm Width Waterproof RGB LED Strip1x 16.4ft 22 Gauge 4 Conductor Extension CablePayment Delivery detailsShip to US only. EXCLUDES: APO/FPO, Alaska, Hawaii, Guam, Puerto Rico, Virgin Island and US Territories.Ship to eBay registered address, buyer please contact us via eBay message to notify any changed address.Seller are not responsible for any wrong or undeliverable address.Contact usWe have 100% satisfactory guarantee, if you are not satisfied with your purchase for any reason, please DO contact us and we will help to resolve your problem.And normally emails will be responsed within 1 business day.Item returned must be labelled with a Return Merchandise Authorization (RMA) Number.Please do Contact us for the RMA number before return it.Replacement or full refund will be made for defective products returned without any heisitance.
