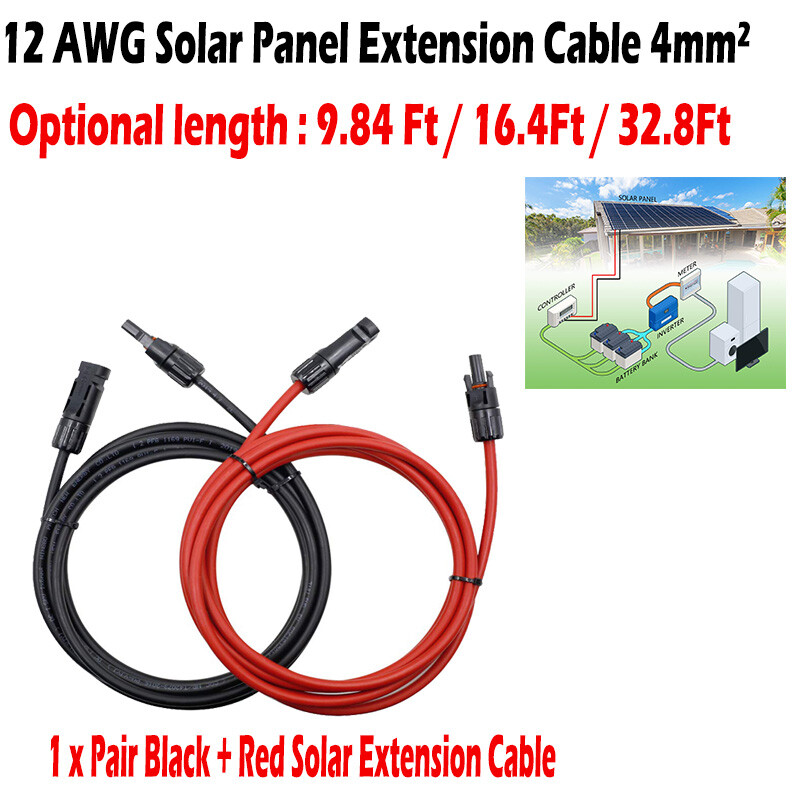

12 AWG 4mm² Solar Panel Extension Cable PV Wire Solar Connector Pair Black & Red
12 AWG 4mm² Solar Panel Extension Cable PV Wire Solar Connector Pair Black & Red 【Product Descriptions】 1. Cable Model: PV1-F 1*4 mm²(12 AWG) 2. Product Standard: TÜV 2PfG 1169/08.2007 PV1-F 3. Voltage Rating: AC 600V/1000V, DC 1800V 4. Conductor: Tinned copper wire, in compliance with EN 60228, IEC 60228 Class 5 5. Insulation: halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, white 6. Jacket: Halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, black/red 7. Current Carrying Capacity: 40A 8. Outer Diameter: 4.1mm 9. Service Life: 25 years. 10. Bending Class: 5D 11. Fire-resistance Performance: IEC 60332-1 【Product Features & Advantages】 1. Cable oxidation resistance, Halogen-free, flame retardant, low toxicity 2. The Jacket is UV, ozone and hydrolysis resistant. High resistance against UV, Ozone, heat, fire, cold, oil, abrasion, fluids, salt etc. 3. Low smoke and halogen-free insulation and Jacket, in compliance with ROHS environmental performance. 【Applications】 Double insulation, electron-beam cross-linked cables for photovoltaic power station. Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and adapt to dry and wet indoor working environment. 【Package Included】 Black + Red Solar Extension Cable (2PCS)
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Current Output | 30-39 A |
| System Configuration | Off-Grid |
| Solar Technology | Monocrystalline |
| Power Source | Solar |
| MPN | does not apply |
| Wire Gauge | 4mm² 12AWG |
| Outer Diameter | 4.1mm |
| Current Type | AC/DC |
| Current Carrying Capacity | 30A |
| Voltage | AC 600V/1000V,DC 1800V |
| Features | All Daylight Conditions |
| Protection Properties | Discharge Protection |
| Color | Black/Red |
| Current Rating | Greater Than 10 A |
| Material | UV-Resistant Nylon |
| Brand | Unbranded |
| Model | MC4 extend cable |
| Recommended Environment | Indoor/Outdoor |
| Resistance Properties | Acid Resistant |
| Application | Agriculture/Farming |
| Power | 201-300 W |
12 AWG 4mm² Solar Panel Extension Cable PV Wire Solar Connector Pair Black & Red 【Product Descriptions】 1. Cable Model: PV1-F 1*4 mm²(12 AWG) 2. Product Standard: TÜV 2PfG 1169/08.2007 PV1-F 3. Voltage Rating: AC 600V/1000V, DC 1800V 4. Conductor: Tinned copper wire, in compliance with EN 60228, IEC 60228 Class 5 5. Insulation: halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, white 6. Jacket: Halogen-free low smoke flame retardant irradiation cross-linked polyvinyl, black/red 7. Current Carrying Capacity: 40A 8. Outer Diameter: 4.1mm 9. Service Life: 25 years. 10. Bending Class: 5D 11. Fire-resistance Performance: IEC 60332-1 【Product Features & Advantages】 1. Cable oxidation resistance, Halogen-free, flame retardant, low toxicity 2. The Jacket is UV, ozone and hydrolysis resistant. High resistance against UV, Ozone, heat, fire, cold, oil, abrasion, fluids, salt etc. 3. Low smoke and halogen-free insulation and Jacket, in compliance with ROHS environmental performance. 【Applications】 Double insulation, electron-beam cross-linked cables for photovoltaic power station. Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and adapt to dry and wet indoor working environment. 【Package Included】 Black + Red Solar Extension Cable (2PCS)
