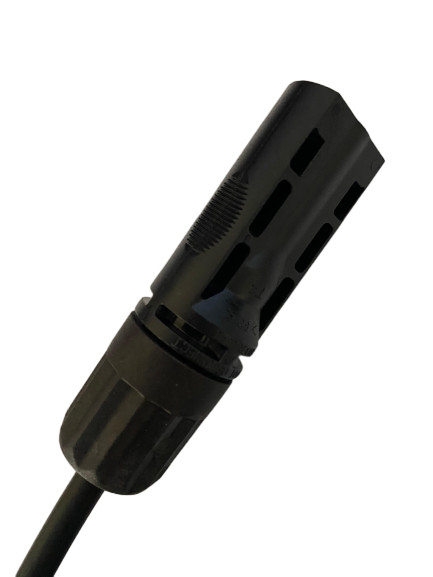

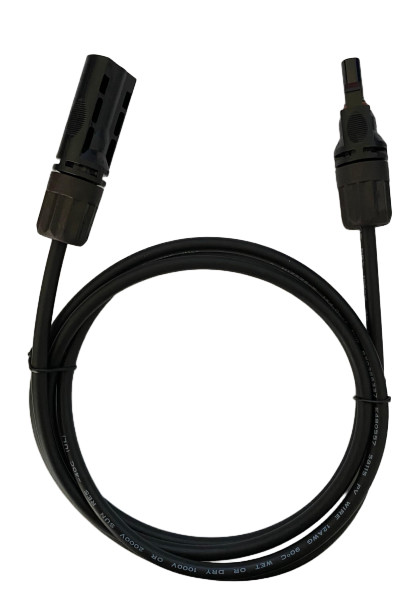

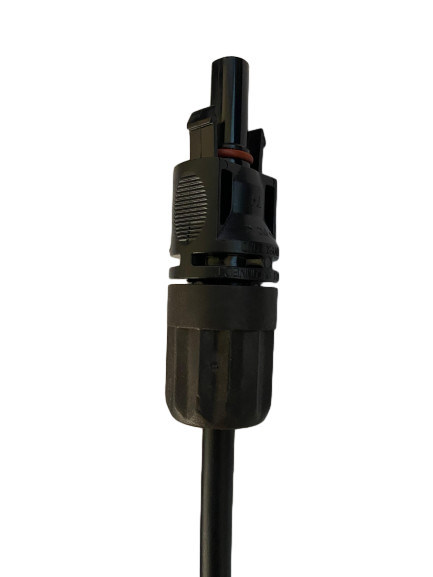

12 AWG Solar Panel Extension Cable PV Wire Solar 1000v Connector MC4 (6ft)
12 AWG Solar Cable Technical Specifications::Wire Thickness: 12 AWG Stranding: 19Insulation Thickness: 0.045 inchesNominal Outer Diameter: 0.188 inches Approximate Net Weight : 30 lbs/1M'Copper Weight : 20.20 lbs/1M'Ampacity 90ºC Wet/Dry: 30AConductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding Insulation Jacket: Chemically crosslinked polyethylene
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Output | 30-39 A |
| System Configuration | Off-Grid |
| Solar Technology | Monocrystalline |
| Power Source | Solar |
| MPN | does not apply |
| Wire Gauge | 1*4mm² (12 AWG) |
| Outer Diameter | 6.1mm |
| Current Type | AC/DC |
| Current Carrying Capacity | 30A |
| Voltage | AC 600V/1000V, DC 1800V |
| Connector Type | MC4 |
| Features | All Daylight Conditions |
| Unit Quantity | 1 und Black |
| Protection Properties | Discharge Protection |
| Color | Black |
| Current Rating | Greater Than 10 A |
| Material | UV-Resistant Nylon |
| Brand | Unbranded |
| Type | Solar Panel |
| Model | MC4 extend cable |
| Recommended Environment | Indoor/Outdoor |
| Resistance Properties | Acid Resistant |
| Application | Agriculture/Farming |
| Power | 201-300 W |
12 AWG Solar Cable Technical Specifications::Wire Thickness: 12 AWG Stranding: 19Insulation Thickness: 0.045 inchesNominal Outer Diameter: 0.188 inches Approximate Net Weight : 30 lbs/1M'Copper Weight : 20.20 lbs/1M'Ampacity 90ºC Wet/Dry: 30AConductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding Insulation Jacket: Chemically crosslinked polyethylene
