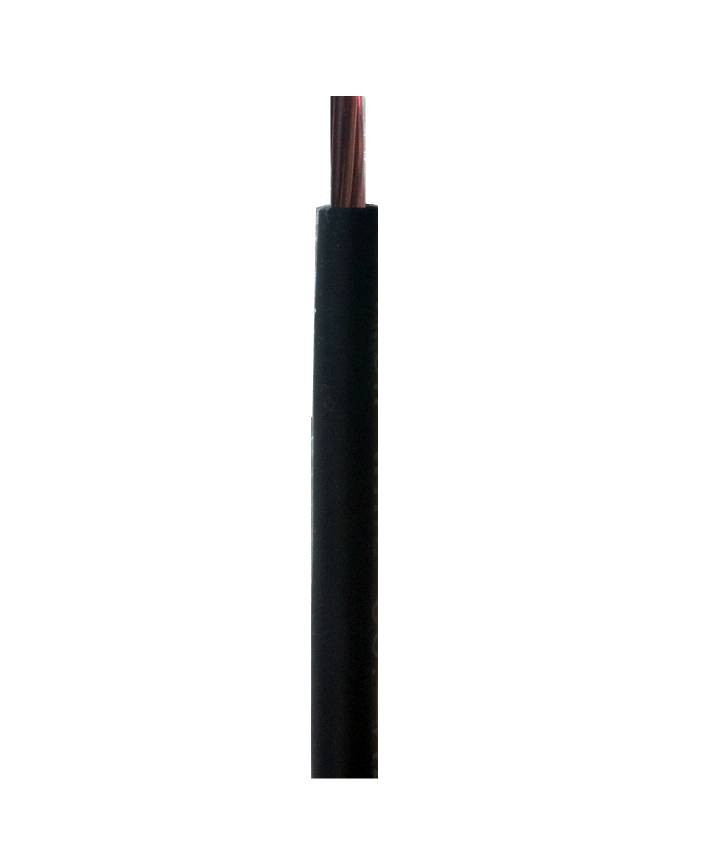

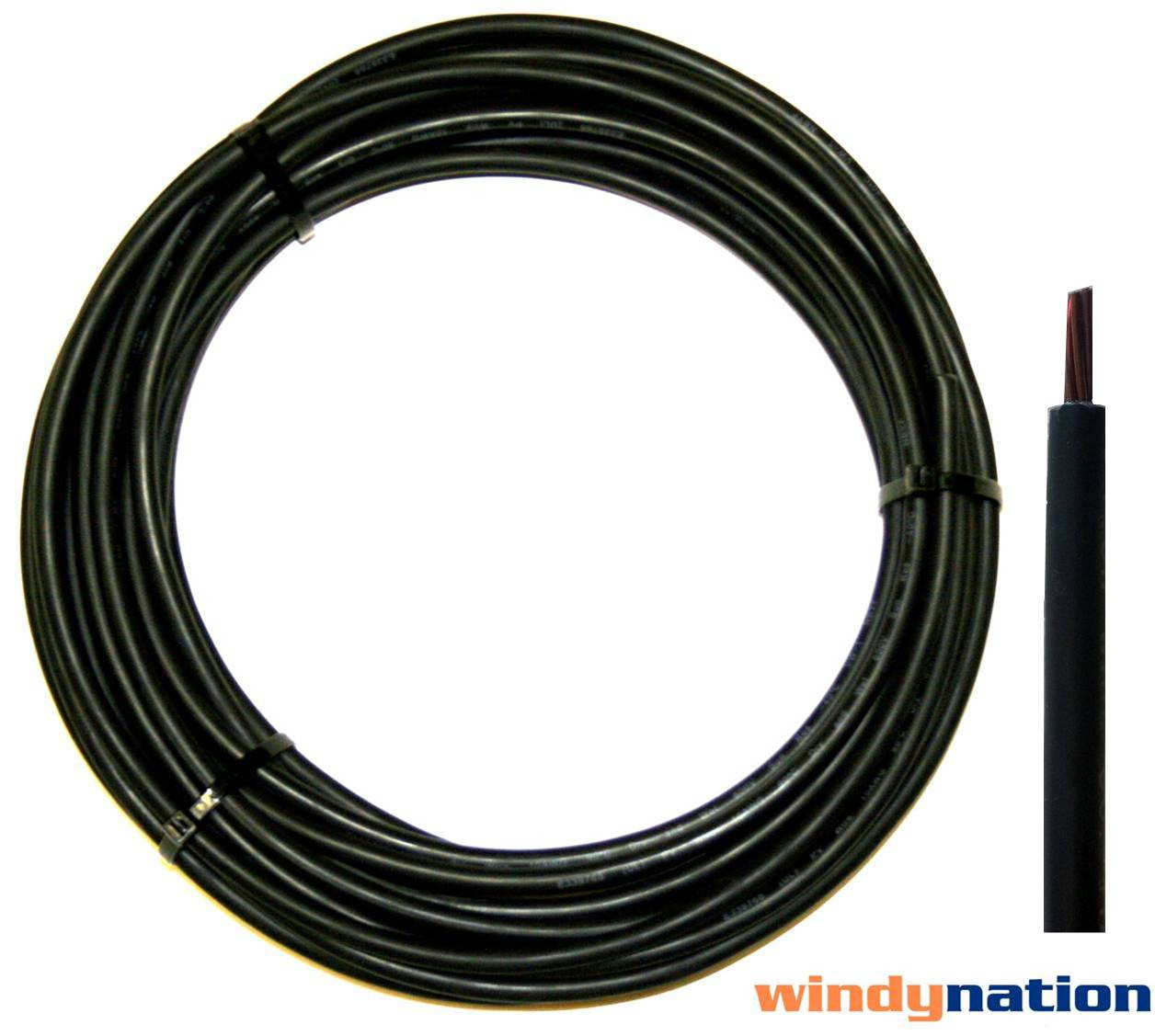

12 AWG Solar Panel Extension Cable Wire 25 ft to 300 ft RV Boat
Normal 0 false false false EN-US X-NONE X-NONE 12 AWG Solar CableMade in the USA Sold in lengths ranging from 5 to 300 feet. Simply select the length you want from the tab at the top of this web page. Technical Specifications:Wire Thickness: 12 AWG Stranding: 19Insulation Thickness: 0.045 inchesNominal Outer Diameter: 0.188 inches Approximate Net Weight : 30 lbs/1M'Copper Weight : 20.20 lbs/1M'Ampacity 90ºC Wet/Dry: 30Conductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding Insulation Jacket: Chemically crosslinked polyethylene Industry Standards and Approvals:Listed as XLP USE-2 or RHH/RHW-2 RoHS Compliant Wet/Dry Temperature: -40C to 90CSunlight resistantDirect burial Solar panel cable is typically sold in 16, 14, 12 and 10 AWG sizes. The solar panel cable offered in this listing is 12 AWG which is the second largest diameter of the four. Using large diameter cable minimizes power loss in your solar panel system. WindyNation also sells 10 AWG solar cable on ebay (Look for it in our store).
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | CBL-PVBL-12 |
| MPN | CBL-PVBL-12 |
| Brand | Windy Nation Inc. |
Normal 0 false false false EN-US X-NONE X-NONE 12 AWG Solar CableMade in the USA Sold in lengths ranging from 5 to 300 feet. Simply select the length you want from the tab at the top of this web page. Technical Specifications:Wire Thickness: 12 AWG Stranding: 19Insulation Thickness: 0.045 inchesNominal Outer Diameter: 0.188 inches Approximate Net Weight : 30 lbs/1M'Copper Weight : 20.20 lbs/1M'Ampacity 90ºC Wet/Dry: 30Conductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding Insulation Jacket: Chemically crosslinked polyethylene Industry Standards and Approvals:Listed as XLP USE-2 or RHH/RHW-2 RoHS Compliant Wet/Dry Temperature: -40C to 90CSunlight resistantDirect burial Solar panel cable is typically sold in 16, 14, 12 and 10 AWG sizes. The solar panel cable offered in this listing is 12 AWG which is the second largest diameter of the four. Using large diameter cable minimizes power loss in your solar panel system. WindyNation also sells 10 AWG solar cable on ebay (Look for it in our store).
