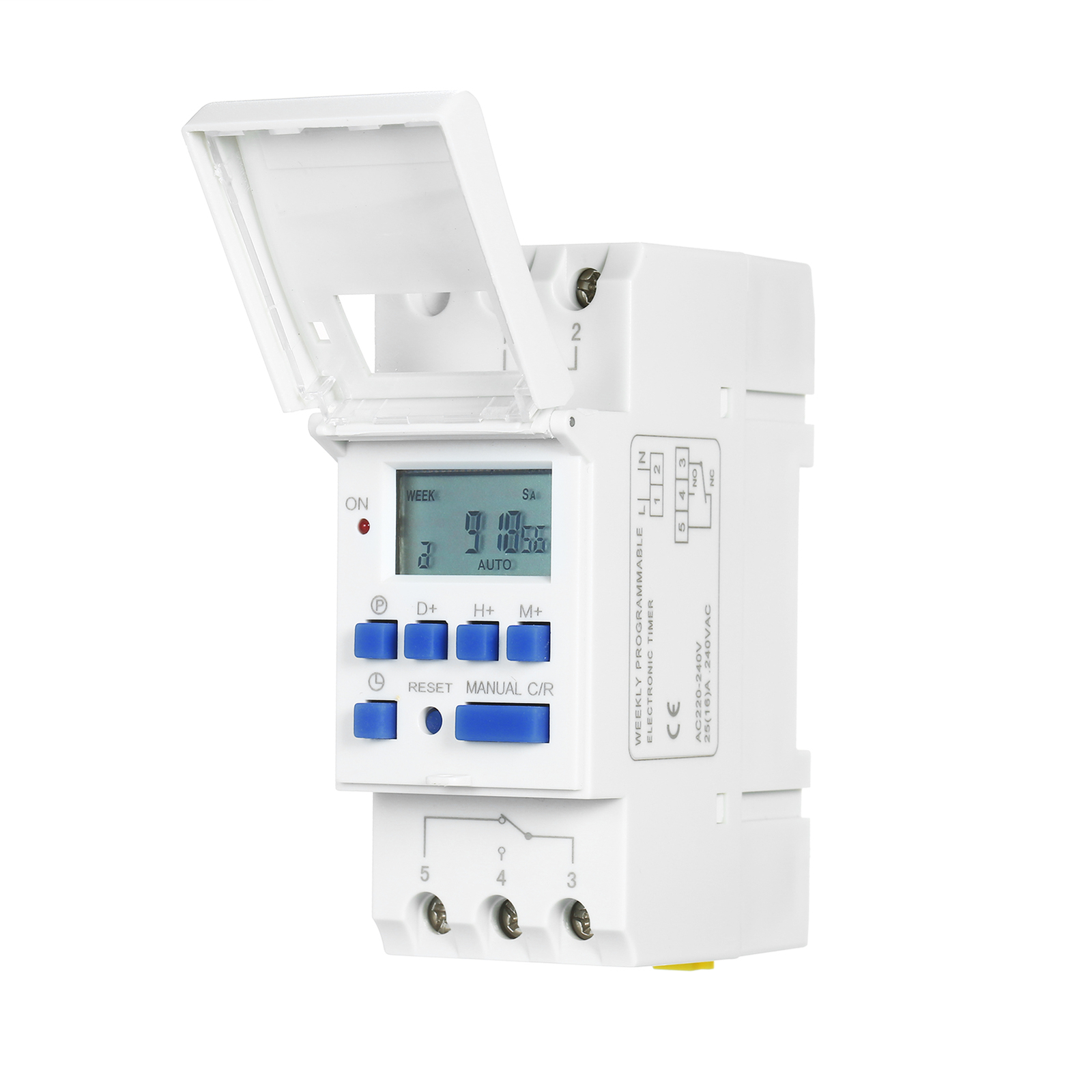

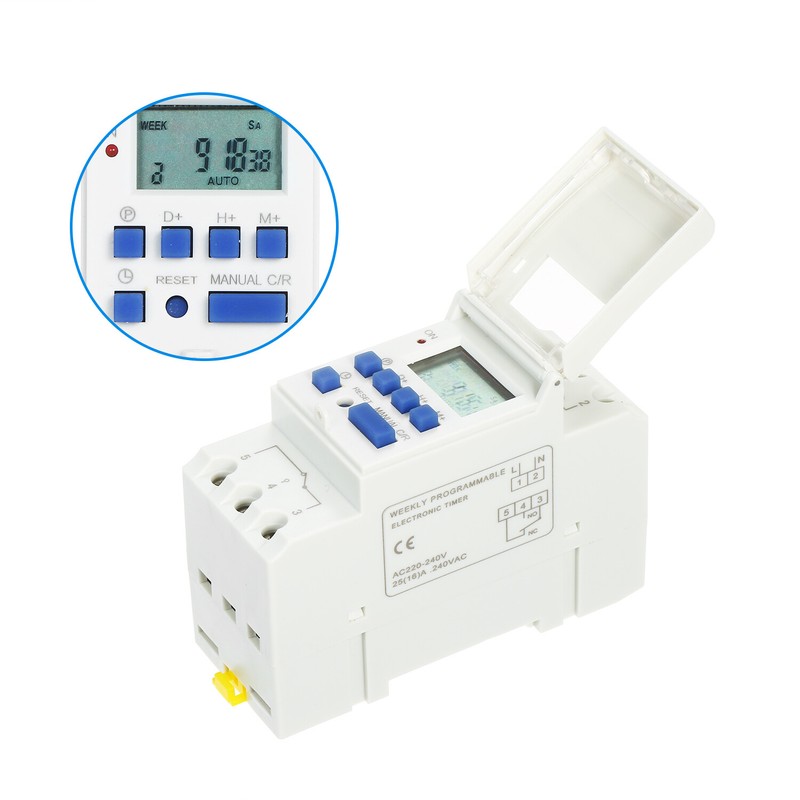

16A THC15A Digital LCD Programmable Timer Switch Relay Din Rail W5R0

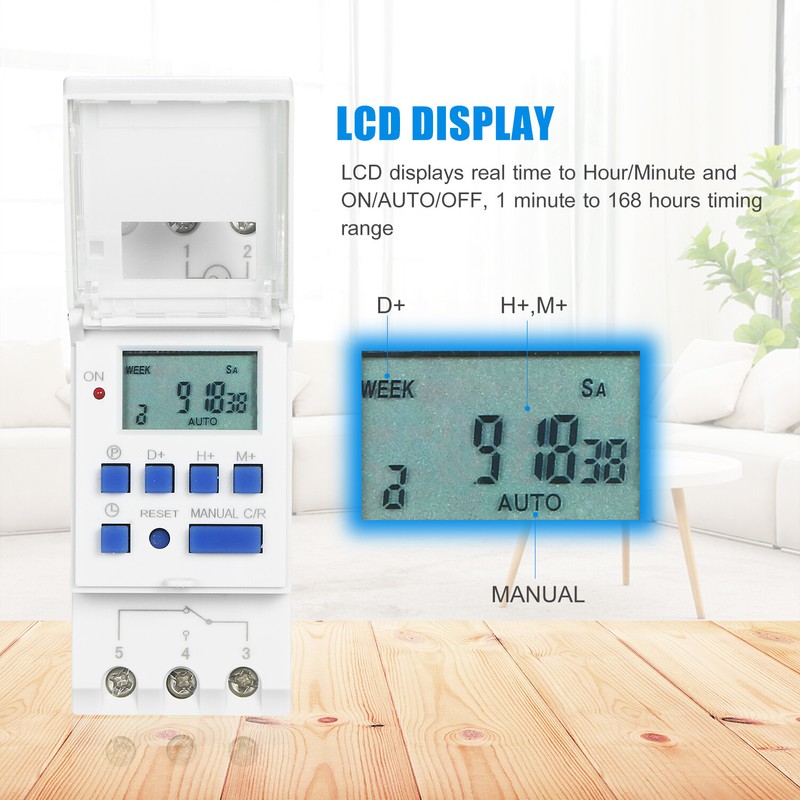

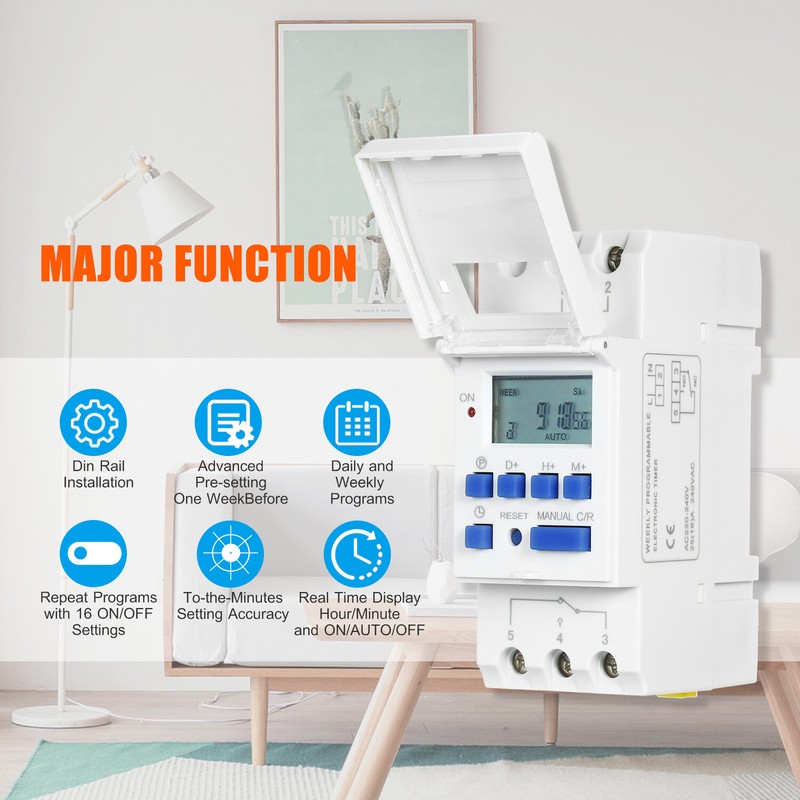

Digital electronics general purpose switch can repeat programs with 16 ON and 16 OFF settings for different uses for flexible scheduling. pre-setting week before. To-the-minute setting accuracy. Built-in rechargeable and intelligent chip, enable to retain programming setting even in a outage. Features: 7 Day Digital Programmable Timer -- Digital electronics general purpose switch with daily and weekly programs (10 different mode). 1 min to 168 hours full . Repeat programs with 16 ON and 16 OFF settings. To-the-minute setting accuracy LCD Display -- LCD displays real to Hour/Minute and ON/AUTO/OFF, large LCD screen for easy reading, you can see every figure on it clearly. Built-In Rechargeable -- It has a built-in 1.2V/40mA rechargeable and a industrial grade chip, so the unit retains the programming setting even in a outage. Easy Operation -- Large screen and clear button for easy and accurate operating. D+(setting the days), H+(setting the hours), M+(setting the minutes). Wide Application -- This timer switch could automatic turn on/off electric equipment according to the user set. With high and strong -interference ability, the timer switch is for controlling street , neon , production equipment, and television and other home appliances. Specification: Voltage Rating: AC 50/60Hz Number of Circuits: 1 changeover switch (SPDT) Erro: ≤2S/day (25℃） On/Off operation: 16 times On and Off (manual / auto) : 4.5VA () Bound: 1min-168hours Backup: ≥15days Minimum Interval: 1 minute Load Capacity: 16A 250VAC Mechanical Lifet: 10^7 Electrically : 10^5 Humidity: 35-85%RH Operating : -10 - 55 ℃ Mounting Methoud: 36mm din rail Item Size: 87*64*35mm/3.43*2.52*1.38in Packing List: 1 * Digital Timer Swich 1 * User Manual
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| ASIN | B0999NXZMJ |
| MPN | Does not Apply |
| Brand | Unbranded/Generic |
| Operating Temperature | -10 - 55 ℃ |
| Color | White |
| Bound | 1min-168hours |
| Minimum Interval | 1 minute |
| Error | ≤2S/day (25℃） |

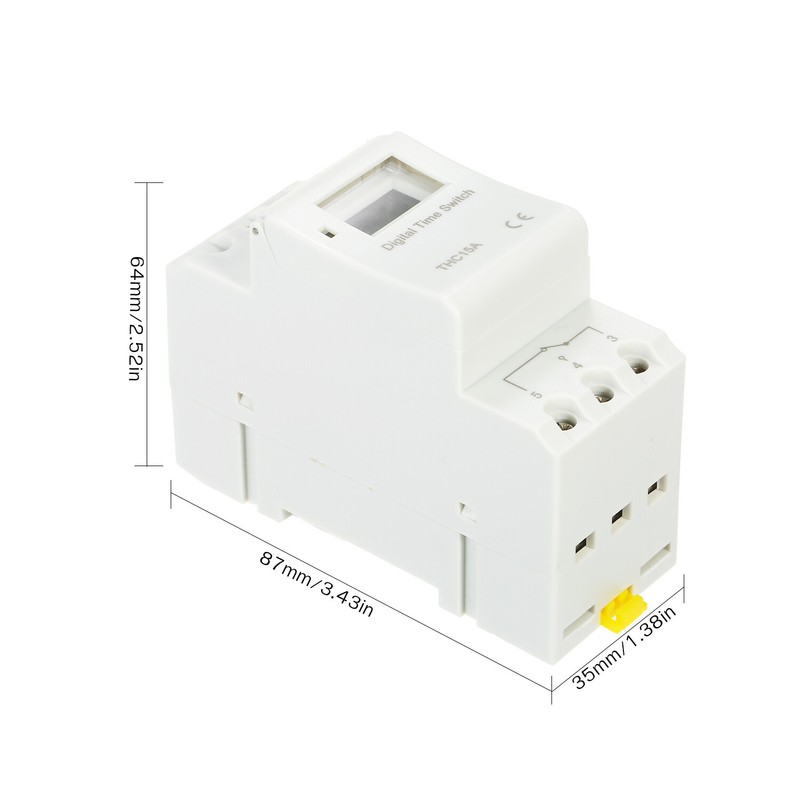

| Mounting Method | 36mm din rail |
| Type | Digital Timer Switch |
| Load Capacity | 16A 250VAC |
| Humidity | 35-85%RH |

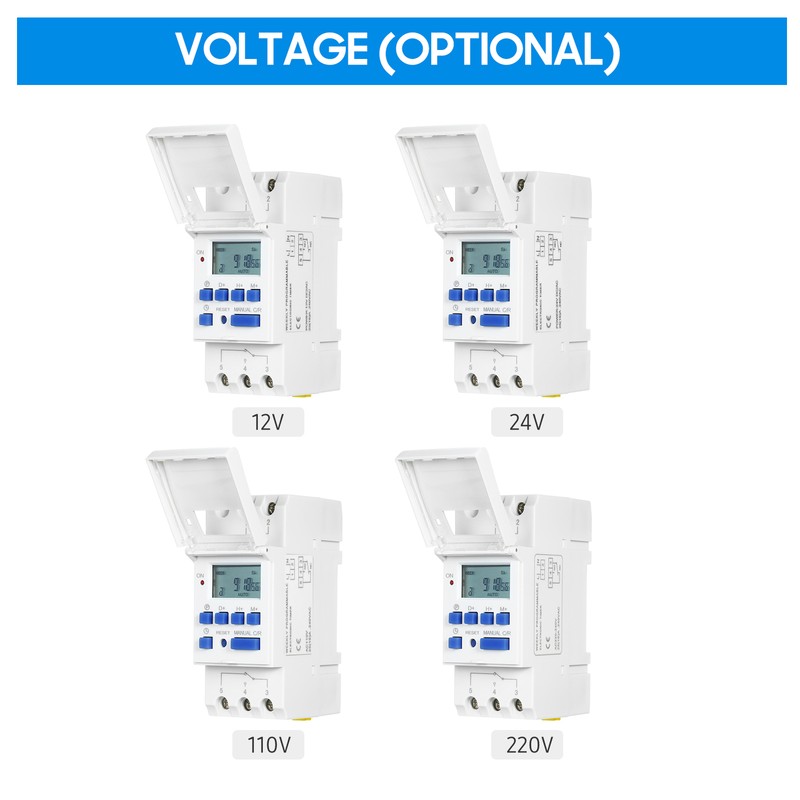

| Voltage | 220V |
| Contact Voltage Rating | AC 220V 50/60Hz |
| Power | 4.5VA (max) |
Digital electronics general purpose switch can repeat programs with 16 ON and 16 OFF settings for different uses for flexible scheduling. pre-setting week before. To-the-minute setting accuracy. Built-in rechargeable and intelligent chip, enable to retain programming setting even in a outage. Features: 7 Day Digital Programmable Timer -- Digital electronics general purpose switch with daily and weekly programs (10 different mode). 1 min to 168 hours full . Repeat programs with 16 ON and 16 OFF settings. To-the-minute setting accuracy LCD Display -- LCD displays real to Hour/Minute and ON/AUTO/OFF, large LCD screen for easy reading, you can see every figure on it clearly. Built-In Rechargeable -- It has a built-in 1.2V/40mA rechargeable and a industrial grade chip, so the unit retains the programming setting even in a outage. Easy Operation -- Large screen and clear button for easy and accurate operating. D+(setting the days), H+(setting the hours), M+(setting the minutes). Wide Application -- This timer switch could automatic turn on/off electric equipment according to the user set. With high and strong -interference ability, the timer switch is for controlling street , neon , production equipment, and television and other home appliances. Specification: Voltage Rating: AC 50/60Hz Number of Circuits: 1 changeover switch (SPDT) Erro: ≤2S/day (25℃） On/Off operation: 16 times On and Off (manual / auto) : 4.5VA () Bound: 1min-168hours Backup: ≥15days Minimum Interval: 1 minute Load Capacity: 16A 250VAC Mechanical Lifet: 10^7 Electrically : 10^5 Humidity: 35-85%RH Operating : -10 - 55 ℃ Mounting Methoud: 36mm din rail Item Size: 87*64*35mm/3.43*2.52*1.38in Packing List: 1 * Digital Timer Swich 1 * User Manual
