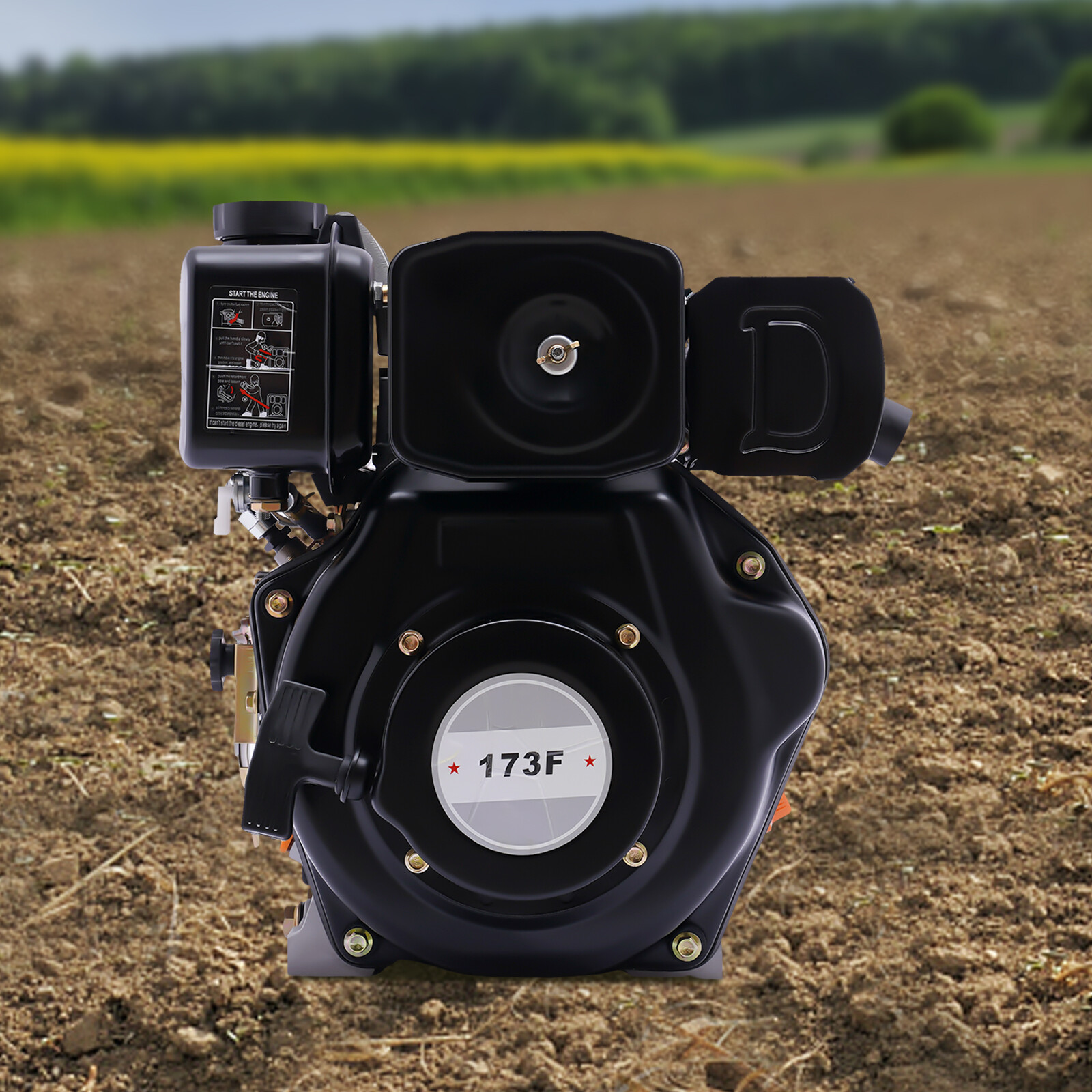

247CC 4-Stroke Tiller Diesel Engine 5HP Vertical Motor Single Cylinder Air-Cool
Commodity parameters: Size: 335x380x415mm (13.2 * 14.96 * 16.3 inches) Net weight : 27(kg) (59.5 lb) Material: aluminum alloy box System: direct injection fuel system Application scope: road cutting machine, grinding machine, water pump, micro tiller, air conditioning compressor, micro tiller, etc Rated power: 3.6kw Cylinder diameter * stroke (mm): 73x59 Displacement (L): 0.247 Fuel tank volume (L): 2.5 Rotation direction: counter clockwise (facing the output shaft) Cooling mode: air cooling Lubrication mode: pressure splash compound type Starting mode: hand start Engine speed: 3600r / min Fuel consumption rate: ≤ 280g / (kW. H) Oil consumption rate: ≤ 2.5g / (kW. H) characteristic: 1. Direct injection fuel system Good atomization, low fuel consumption and accurate fuel injection 2. Speed.
Specifications
| Output Shaft Diameter | 20mm |
| Keyway Size | 5mm |
| Brand | Unbranded |
| Net Weight | 27(kg) (59.5 lb) |
| Material | aluminum alloy box |
| Rated Power | 3.6kw |
| Cylinder Diameter * Stroke (mm) | 73x59 |
| Displacement (L) | 0.247 |
| Fuel Tank Volume (L) | 2.5 |
| Cooling Mode | air cooling |
| Starting Mode | hand start |
| Engine Speed | 3600r / min |
| Fuel Consumption Rate | ≤ 280g / (kW. H) |
| Oil Consumption Rate | ≤ 2.5g / (kW. H) |
| Crankshaft Direction | Horizontal |
| Fuel Type | Diesel |
| Features | Air Cool |
| Engine Type | 4-Stroke |
| Power Source | Diesel |
| Engine Size | 247CC |
| Horsepower | 5HP |
| Assembly Required | Yes |
| Maximum Power | 3.6 kW |
| Power Rating | 3.6 kW |
Commodity parameters: Size: 335x380x415mm (13.2 * 14.96 * 16.3 inches) Net weight : 27(kg) (59.5 lb) Material: aluminum alloy box System: direct injection fuel system Application scope: road cutting machine, grinding machine, water pump, micro tiller, air conditioning compressor, micro tiller, etc Rated power: 3.6kw Cylinder diameter * stroke (mm): 73x59 Displacement (L): 0.247 Fuel tank volume (L): 2.5 Rotation direction: counter clockwise (facing the output shaft) Cooling mode: air cooling Lubrication mode: pressure splash compound type Starting mode: hand start Engine speed: 3600r / min Fuel consumption rate: ≤ 280g / (kW. H) Oil consumption rate: ≤ 2.5g / (kW. H) characteristic: 1. Direct injection fuel system Good atomization, low fuel consumption and accurate fuel injection 2. Speed.
