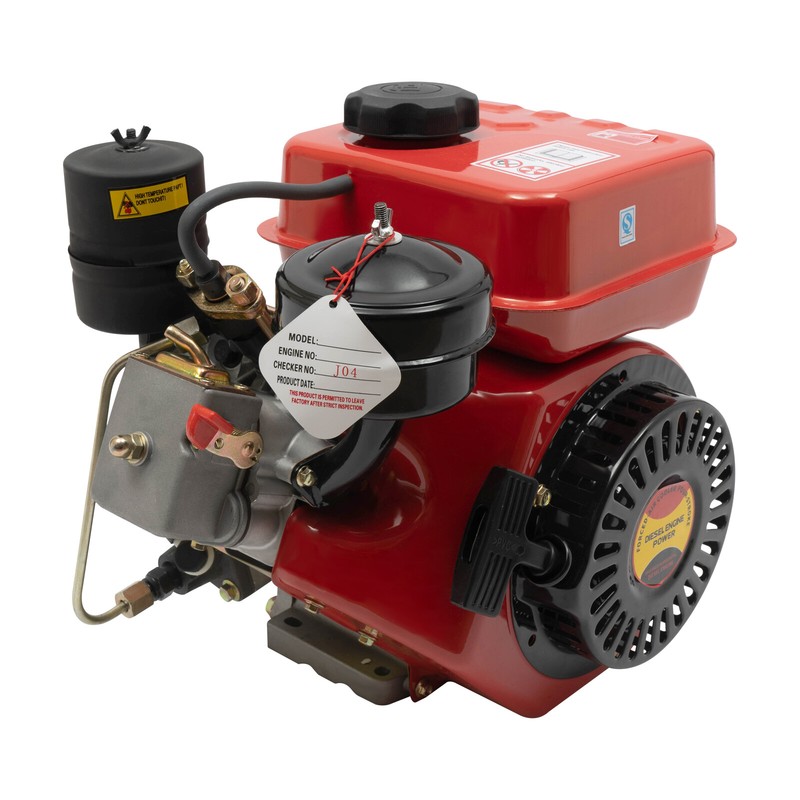

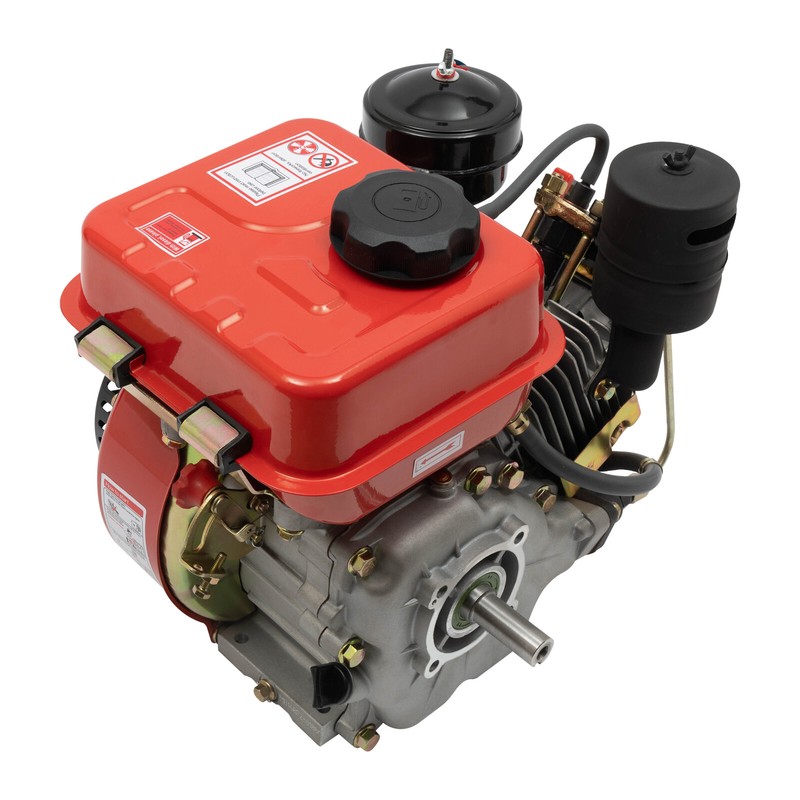

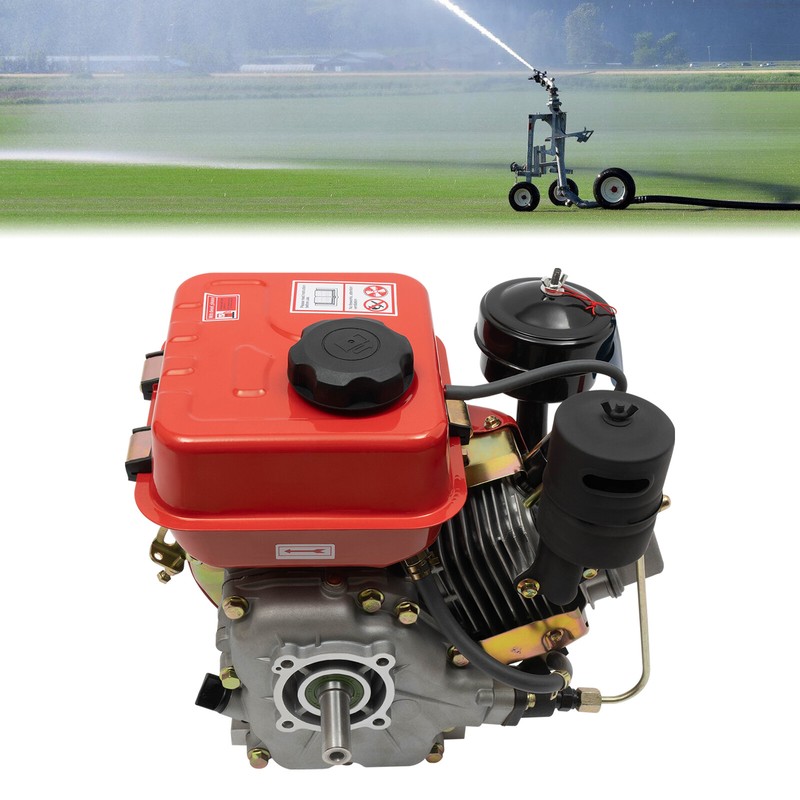

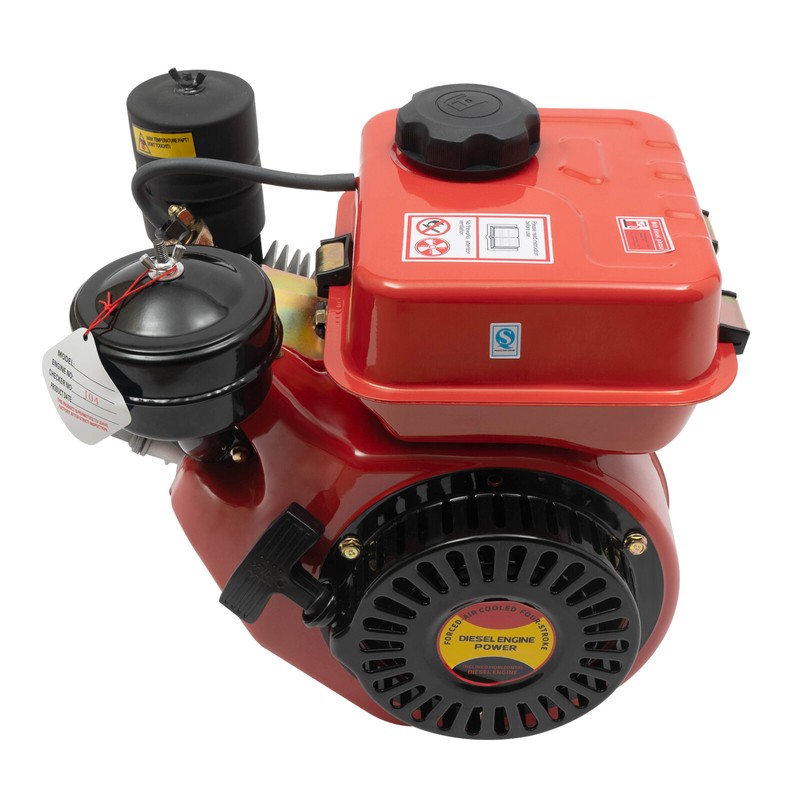

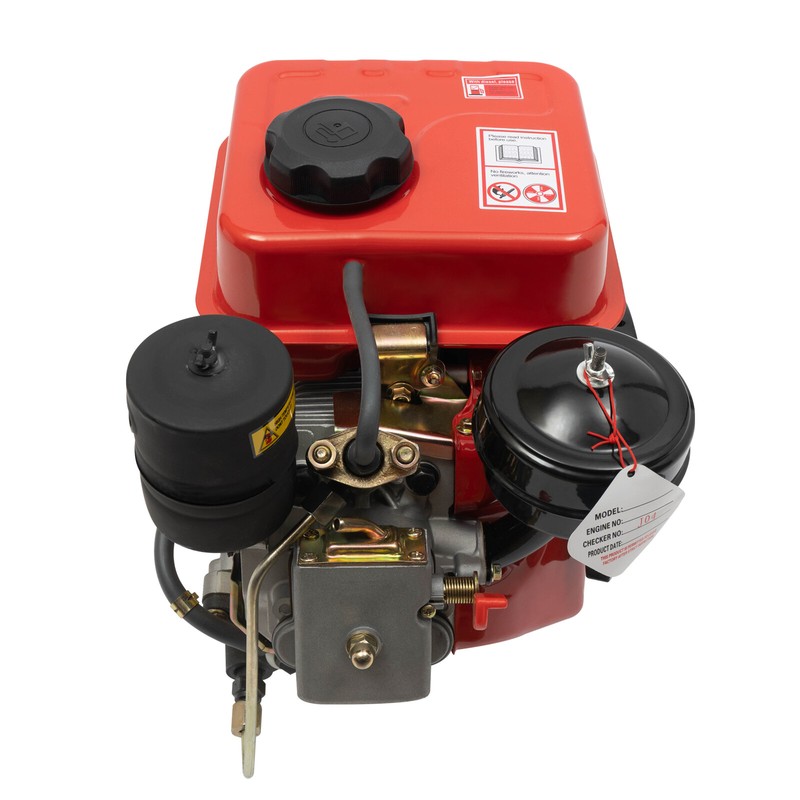

3 HP 4 Stroke Engine 196CC Single Cylinder Forced Air Cooling Horizontal

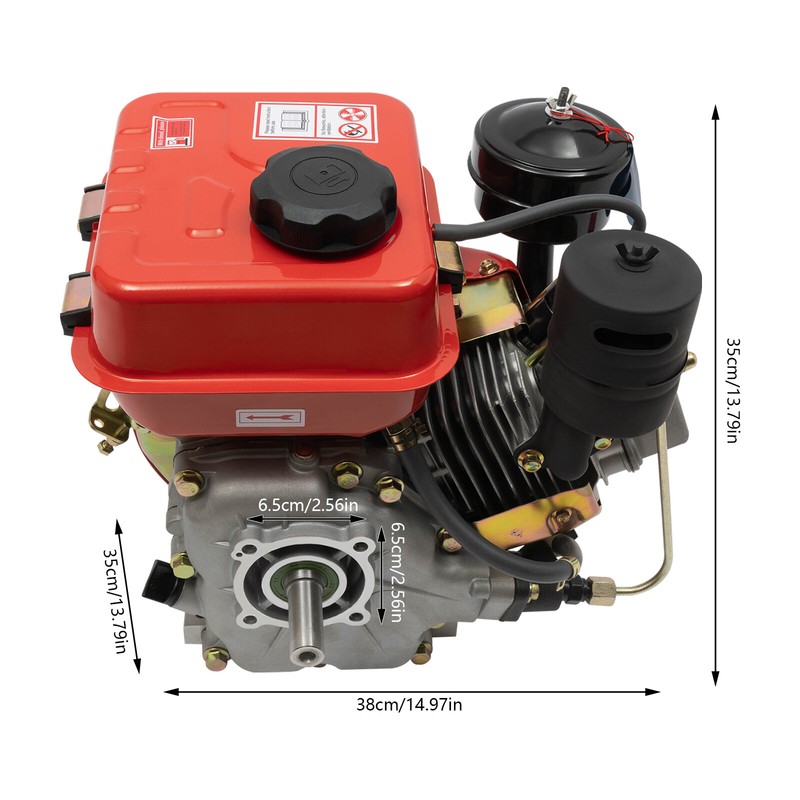

Specification Color: Red Fuel Type: Diesel Silencer: Yes Power: 2.2KW Power Source: Diesel Speed: 1650-3800rpm Material: Die-casting Aluminum, Steel Type: Singer-Cylinder, 4-stroke Diesel Engine Technology: Installation Process Starting system: Hand Recoil Start Method: Manual Start Fuel Tank Capacity: 3.5L/0.92Gallons Air Filter: Dry Air Filter Assembly Required: Yes Low Oil Level Alarm Function: Yes Gross Weight: 20kg/44.09lb Product Size: 35*38*35 cm/ 13.77*14.96*13.77inch Package Size: 35*45*40cm/13.77*17.71*15.74inch Package Included 1* Diesel Engine 1*English Manual.
Specifications
| Brand | Unbranded |
| Product Weight | 20kg (44.09 pounds) |
| Shell Material | alloy |
| Ignition Method | pull start |
| Engine Displacement (CC) | 196cc |
| Speed (rpm) | 1650-3800rpm |
| Maximum Output Power | 2.2KW |
| Start Mode | recoil type hand start |
| Oil Volume | 0.7L |
| Piston Displacement | 0.196CC |
| Stroke | 54mm (2.13 inches) |
| Bore Diameter | 68mm (2.68 inches) |
| Number Of Cylinders | single cylinder |
| Injection Pressure | 14±0.5 |
| Hole Size | 0.8mm (0.0315 inch) |
| Fuel | 0#diesel 0# |
| Fuel Consumption Rate | 0.5g/kw.h |
| Shaft Type | flat key shaft |
| Shaft Diameter | 20mm (0.787 inches) |
| Shaft Length | 53mm (2.09 inches) |
| Shaft Inner Diameter Thread Size | 0.8mm (0.0315 inch) |
| Oil System | vortex type |
| Engine Cooling Method | forced air cooling |
| Fuel Type | Diesel |
| Crankshaft Direction | Horizontal |
| Horsepower | 3 HP |
| Engine Type | 4-Stroke |
| Type | Oblique horizontal |
Specification Color: Red Fuel Type: Diesel Silencer: Yes Power: 2.2KW Power Source: Diesel Speed: 1650-3800rpm Material: Die-casting Aluminum, Steel Type: Singer-Cylinder, 4-stroke Diesel Engine Technology: Installation Process Starting system: Hand Recoil Start Method: Manual Start Fuel Tank Capacity: 3.5L/0.92Gallons Air Filter: Dry Air Filter Assembly Required: Yes Low Oil Level Alarm Function: Yes Gross Weight: 20kg/44.09lb Product Size: 35*38*35 cm/ 13.77*14.96*13.77inch Package Size: 35*45*40cm/13.77*17.71*15.74inch Package Included 1* Diesel Engine 1*English Manual.
