3000W Grid Tie Inverter, Solar Input 75-500Vdc, AC Output 240 Vac, max 16A
Nominal 3000W grid tie inverter, can take solar input to 4500W, up to 500Vdc, up to 13 amperes. Output to 240Vac, 60Hz, 3000W, up to 16 amps, MPPT function to maximize solar energy capture. Wifi PV Pro app enables live power and historical power generation views. IP65, air cool (no noisy fan to fail). Many protection features, see below. High solar DC input voltage enables low current transmission to achieve same high wattage, hence thinner gauge wires can be used. Besides lowering cost, this also lowered fire risks. Similarly, high AC output at 240Vac instead of 120Vac, have similar advantages mentioned for DC. Works with USA, Europe, and Asian grid voltages/frequency. Solar Optimization: This inverter has MPPT function to optimize/maximize solar panels generated energy. In contrast some competitive inverters, eg, SolarEdge, requires EACH PANEL to have an optimizer. This raise system cost by about $50/panel, depending on the model. In other words, this inverter centralized the MPPT function into itself in contrast to other competitors' inverters which require the MPPT function be delegated to each solar panel's optimizer. Moreover, some of these competitors gridtie' inverters will not work (e.g. SolarEdge) without an optimizer attached to each panel. Advantages over competitors: Using one of this inverter, your wiring decides types of output, either 120Vac or 240Vac. Compeitors would required two of their units to achieve 240Vac, raising system cost and points of failure. MPPT is centralized in this inverter. You do not need an optimizer for each solar panel, e.g, SolarEdge inverters won't work without optimizer at each panel. This inverter's MPPT centralizes and optimizes power generated by panels. Future proof your lower wattage inverter, eg, 1000W to be upgraded to 3000W. This inverter will future proof your lower-wattage system, lowering total system cost over time. Wifi monitoring of current and historical power generated. Not all competitors' inverter has this feaure. Better heat dissipation and waterproofing, achieiving IP66 level. How to connect inverter, see picture Monitor power generation using PV Pro app App for cellphone that provide current and historical energy output views, etc. Model 3000W Input Data (DC, PV) Number of Input MC4 Sockets 1 set (positive and negative) MPPT Voltage Range 100-450V Operation Voltage Range 75V-500V Maximum Input Voltage 500V, higher voltage allows use of thinner wires Startup Voltage 150V Shutdown Voltage 100V Night power consumptionr 0.99% THDTotal Harmonic Distortion THD<1.5% Maximum Units per Branch @120VAC:1units/@230VAC:2units Efficiency Peak Efficiency 97.5% Nominal MPPT Efficiency 99.9% Night Power Consumption <1W Mechanical Data Operating Ambient Temperature Range -25℃ to +60℃ Storage Temperature Range -40°C to +85C Dimensions(W*H *D) 370/277/155mm or 14.6/10.9/6.1" Weight 7kg Max Current of AC Bus Cable 16A Waterproof Grade IP65, suitable for outdoors (moisture/dust proof) Cooling Mode Natural Convection- No Fans noise/to fail, no dust ingrress. Other Features Communication WIFI(Cloud monitoring). Views of current and historical power generated. Transformer Design High Frequency Transformers,Galvanically Isolated Integrated Ground Equipment ground is provided by the PE in the AC cable. No additional ground is required. Protection Functions DC reverse-polarity, anti-islanding, overvoltage, short circuit, leakage current, grid monitoring, DC/AC SPD (thermal protection) Package Includes: Inverter Installation back board Positive and Negative DC Connector AC Connector Hardware, installation screws User Manual Wifi Setup guide Warranty Card & Package List Certification For solar array with other voltage input and wattages, please take a look at our 60Vdc-1000W, 60Vdc-2800W. and 500Vdc-6000W Do not connect energized solar panels to any inverter because the sudden surge of current into inverter will damage your panels and inverter. Either do such connections before sunrise or after sunset. Alternatively, use our SparkFree device kill switch will enable anytime connections, sparks free, and safe for solar panels and inverter in daylight connections.

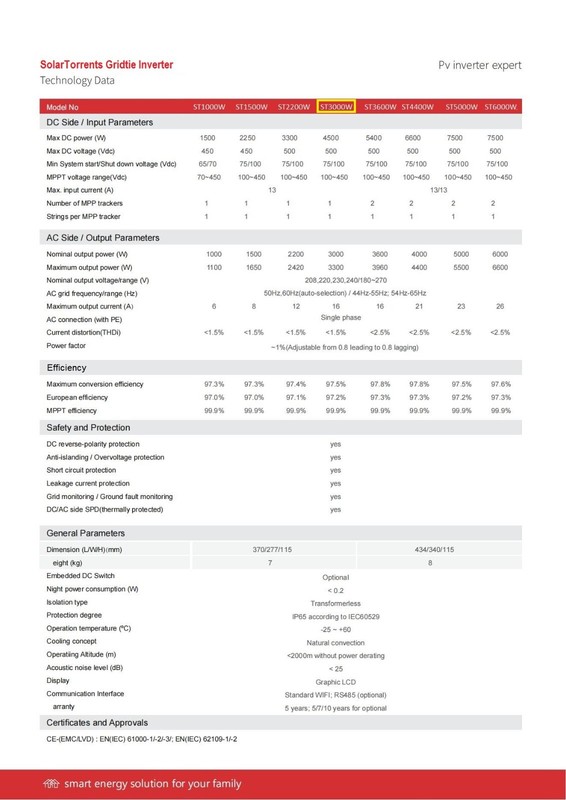

Specifications
| All Returns Accepted | ReturnsNotAccepted |
| System Configuration | Grid-Tie |
| Maximum Input Power | 4500W |
| Power Source | Solar |
| Maximum Input Voltage | 500Vdc |
| Inverter Technology | String |
| Color | White |
| Wattage | 3000 |
| Wire Gauge | 14awg-dc, 12awg-ac |
| Brand | Solartorrent |
| Type | Inverter |
| Voltage | 75-500 Vdc |
| Model | ST3000W |
| Connector Type | MC4 |
| Recommended Environment | Indoor/Outdoor |
| Application | Agriculture/Farming |
| Power | 3000 |
| Protection Properties | Anti-island Protection |
| Product Line | SolarTorrent |
Nominal 3000W grid tie inverter, can take solar input to 4500W, up to 500Vdc, up to 13 amperes. Output to 240Vac, 60Hz, 3000W, up to 16 amps, MPPT function to maximize solar energy capture. Wifi PV Pro app enables live power and historical power generation views. IP65, air cool (no noisy fan to fail). Many protection features, see below. High solar DC input voltage enables low current transmission to achieve same high wattage, hence thinner gauge wires can be used. Besides lowering cost, this also lowered fire risks. Similarly, high AC output at 240Vac instead of 120Vac, have similar advantages mentioned for DC. Works with USA, Europe, and Asian grid voltages/frequency. Solar Optimization: This inverter has MPPT function to optimize/maximize solar panels generated energy. In contrast some competitive inverters, eg, SolarEdge, requires EACH PANEL to have an optimizer. This raise system cost by about $50/panel, depending on the model. In other words, this inverter centralized the MPPT function into itself in contrast to other competitors' inverters which require the MPPT function be delegated to each solar panel's optimizer. Moreover, some of these competitors gridtie' inverters will not work (e.g. SolarEdge) without an optimizer attached to each panel. Advantages over competitors: Using one of this inverter, your wiring decides types of output, either 120Vac or 240Vac. Compeitors would required two of their units to achieve 240Vac, raising system cost and points of failure. MPPT is centralized in this inverter. You do not need an optimizer for each solar panel, e.g, SolarEdge inverters won't work without optimizer at each panel. This inverter's MPPT centralizes and optimizes power generated by panels. Future proof your lower wattage inverter, eg, 1000W to be upgraded to 3000W. This inverter will future proof your lower-wattage system, lowering total system cost over time. Wifi monitoring of current and historical power generated. Not all competitors' inverter has this feaure. Better heat dissipation and waterproofing, achieiving IP66 level. How to connect inverter, see picture Monitor power generation using PV Pro app App for cellphone that provide current and historical energy output views, etc. Model 3000W Input Data (DC, PV) Number of Input MC4 Sockets 1 set (positive and negative) MPPT Voltage Range 100-450V Operation Voltage Range 75V-500V Maximum Input Voltage 500V, higher voltage allows use of thinner wires Startup Voltage 150V Shutdown Voltage 100V Night power consumptionr 0.99% THDTotal Harmonic Distortion THD<1.5% Maximum Units per Branch @120VAC:1units/@230VAC:2units Efficiency Peak Efficiency 97.5% Nominal MPPT Efficiency 99.9% Night Power Consumption <1W Mechanical Data Operating Ambient Temperature Range -25℃ to +60℃ Storage Temperature Range -40°C to +85C Dimensions(W*H *D) 370/277/155mm or 14.6/10.9/6.1" Weight 7kg Max Current of AC Bus Cable 16A Waterproof Grade IP65, suitable for outdoors (moisture/dust proof) Cooling Mode Natural Convection- No Fans noise/to fail, no dust ingrress. Other Features Communication WIFI(Cloud monitoring). Views of current and historical power generated. Transformer Design High Frequency Transformers,Galvanically Isolated Integrated Ground Equipment ground is provided by the PE in the AC cable. No additional ground is required. Protection Functions DC reverse-polarity, anti-islanding, overvoltage, short circuit, leakage current, grid monitoring, DC/AC SPD (thermal protection) Package Includes: Inverter Installation back board Positive and Negative DC Connector AC Connector Hardware, installation screws User Manual Wifi Setup guide Warranty Card & Package List Certification For solar array with other voltage input and wattages, please take a look at our 60Vdc-1000W, 60Vdc-2800W. and 500Vdc-6000W Do not connect energized solar panels to any inverter because the sudden surge of current into inverter will damage your panels and inverter. Either do such connections before sunrise or after sunset. Alternatively, use our SparkFree device kill switch will enable anytime connections, sparks free, and safe for solar panels and inverter in daylight connections.
