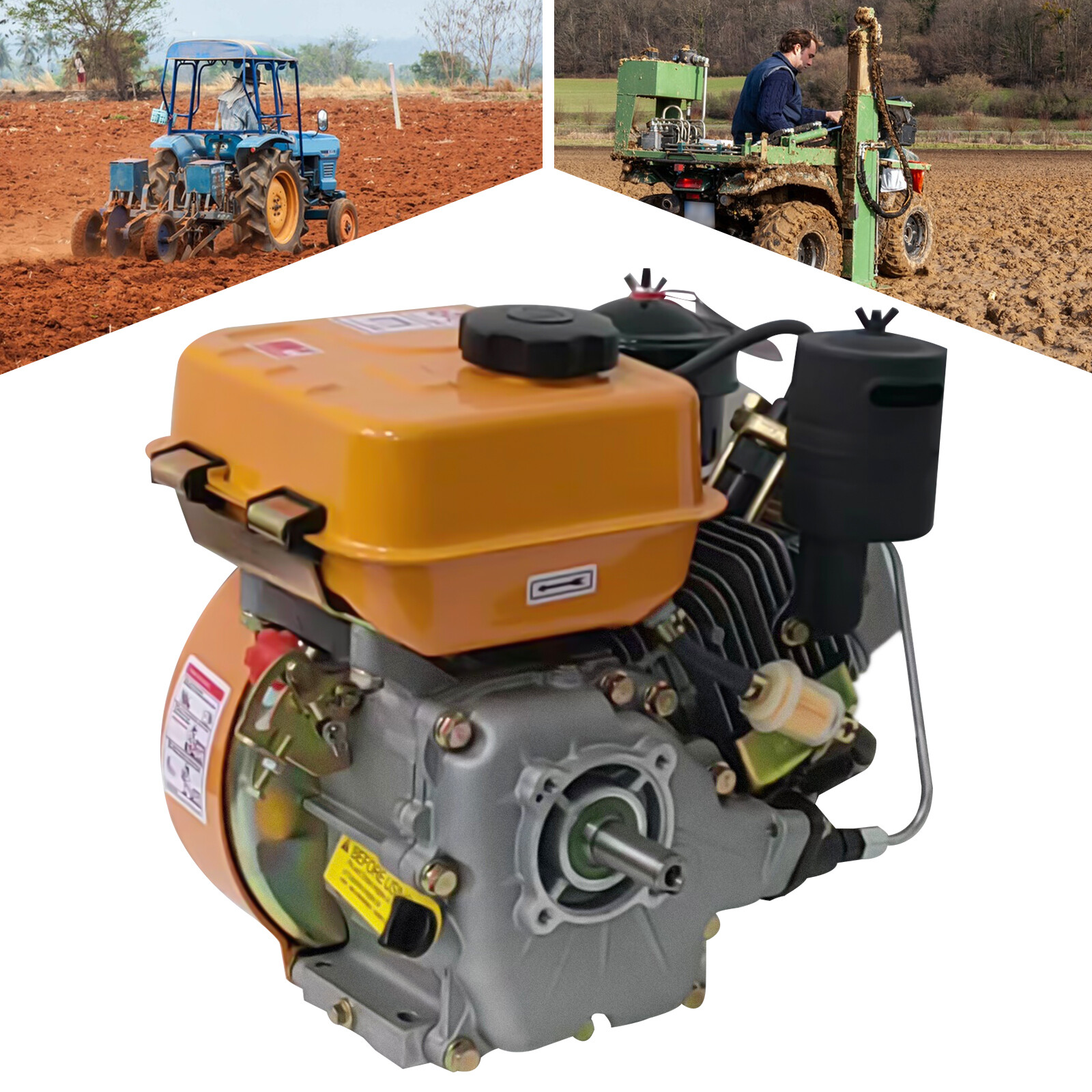

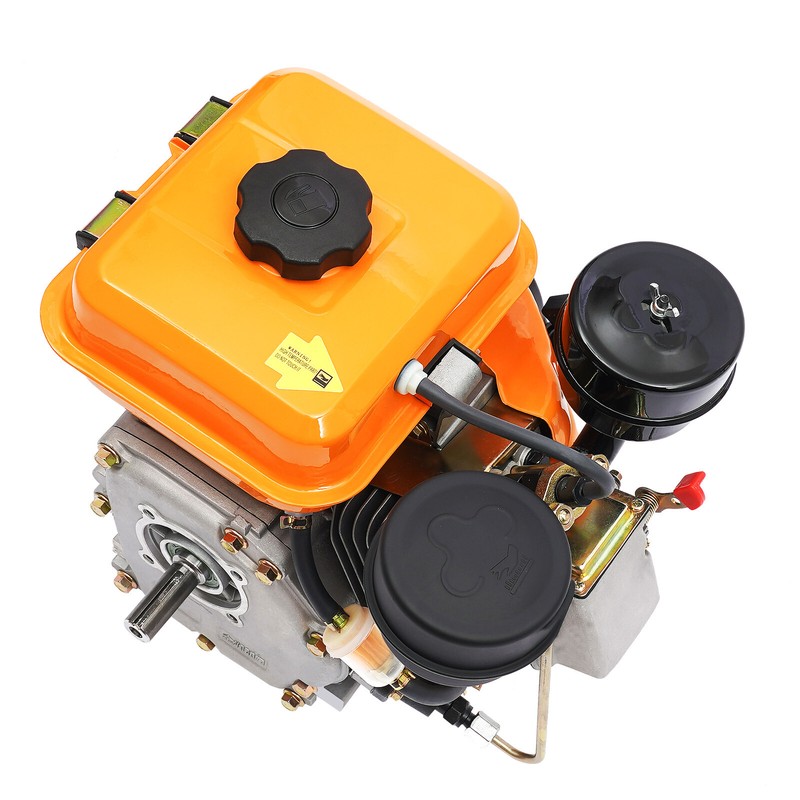

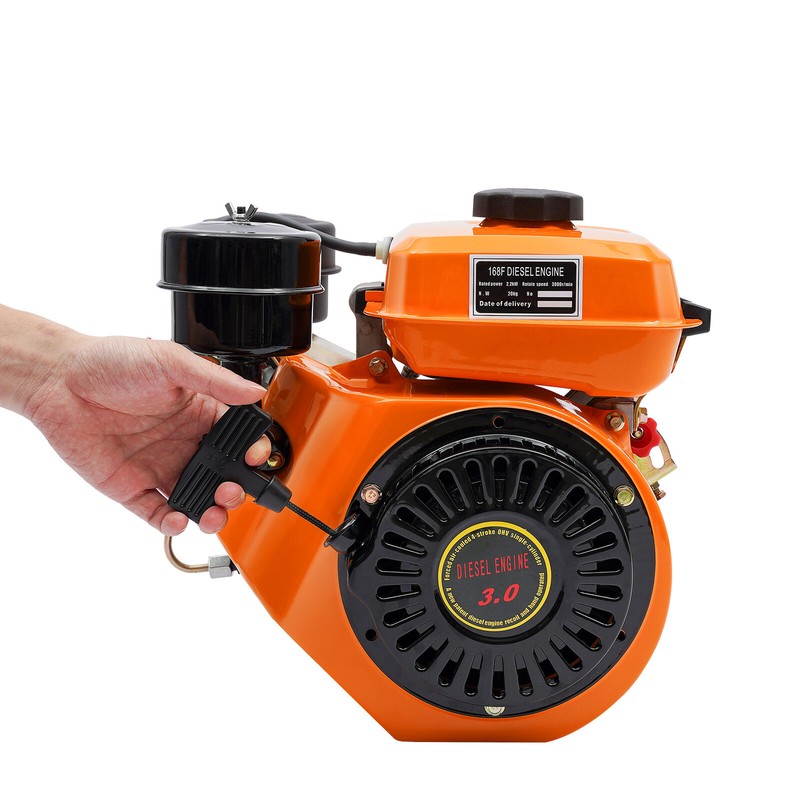

3HP 196CC Vertical Engine Hand Recoil Start Single Cylinder Engine Motor 2.2KW
Specification Model: 168F Type: Singer-Cylinder, 4-stroke Diesel Engine Color: Orange+Black Material: Aluminum Alloy, Steel, Aluminum Surface Treatment: Shot Blasting, Color Galvanizing, and Plastic Spraying Power Source: Diesel-powered Engine Cooling Type: Air Cooling Fuel Type: 0#(Summer), -10#(Winter) Diesel Oil Displacement: 196CC Rotation Direction: Anti-clockwise Lubrication Way: Splash Lubrication Lube Capacity: 0.7L/29.59oz Lube Brand: SAE10W30 (Above CC Grade) Rated Output Power: 2.2kw(3HP) Max Output Power: 2.42kw(3.3HP) Rotational Speed: 3000rpm Load Speed: 2800rpm Fuel Tank Capacity: 3L/126.8oz Fuel Consumption Rate: ≤280g/ kw. h Compression Ratio: 22:1 Bore×Stroke: 68×54mm/2.68*2.13inch Starter System: Recoil Hand Start Net Weight: 21.6kg/ 47.62lbs.
Specifications
| Item Location | CA /NJ /Austell |
| Brand | Unbranded |
| Model | 168F |
| Shell Material | aluminum |
| Ignition Method | compression ignition |
| Displacement (cc) | 196cc |
| Speed (rpm) | 3000 rpm |
| Maximum Output (kw): | 2.2kw |
| Start Method | manual start |
| Engine Oil Capacity | 0.7L |
| Net Torque | 8N.M/2880rpm |
| Number Of Cylinders | single cylinder |
| Compression Ratio | 22:1 |
| Fuel | 0# diesel |
| Fuel Consumption Rate (g / Kw.h) | 310g / kw.h |
| Starting System | hand recoil |
| Shaft Type | flat key |
| Shaft Inner Diameter Thread Size | M8*1.25mm (0.049 inch) |
| Oil System | splash |
| Engine Cooling Method | air cooling |
| Fuel Type | Diesel |
| Horsepower | 3 HP |
| Assembly Required | Yes |
| Crankshaft Direction | Vertical |
Specification Model: 168F Type: Singer-Cylinder, 4-stroke Diesel Engine Color: Orange+Black Material: Aluminum Alloy, Steel, Aluminum Surface Treatment: Shot Blasting, Color Galvanizing, and Plastic Spraying Power Source: Diesel-powered Engine Cooling Type: Air Cooling Fuel Type: 0#(Summer), -10#(Winter) Diesel Oil Displacement: 196CC Rotation Direction: Anti-clockwise Lubrication Way: Splash Lubrication Lube Capacity: 0.7L/29.59oz Lube Brand: SAE10W30 (Above CC Grade) Rated Output Power: 2.2kw(3HP) Max Output Power: 2.42kw(3.3HP) Rotational Speed: 3000rpm Load Speed: 2800rpm Fuel Tank Capacity: 3L/126.8oz Fuel Consumption Rate: ≤280g/ kw. h Compression Ratio: 22:1 Bore×Stroke: 68×54mm/2.68*2.13inch Starter System: Recoil Hand Start Net Weight: 21.6kg/ 47.62lbs.
