5 HP Air Compressor Electric Motor 208-230 V Single Phase 7/8" Shaft 3450RPM

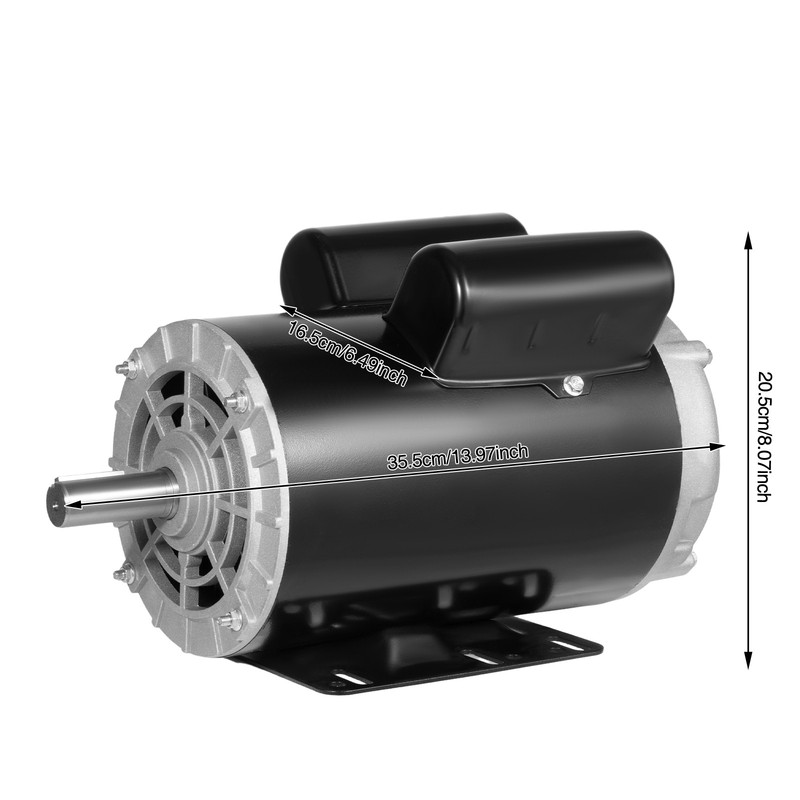

Application This electric motor can be used in compressors, as long as the crankshaft size matches. Specifications Color: Black Material: Pure Aluminum, Steel Plate, 45# Steel Surface Treatment: Plastic Spraying Voltage: 208-230V Horsepower: 5HP Type of Motor: Single-phase Rotation Direction: Anticlockwise Current: 21-22A Rotational Speed: 3450RPM Rated Torque: 10.3N-m Operating Noise: About 65dB Bracket Base Size: 16.5*16.5cm/6.49*6.49inch Crankshaft Diameter: 2cm/0.78inch Crankshaft Length: 6cm/2.36inch Gross Weight: 19.9kg/43.87lbs Net Weight: 19kg/41.88lbs Product Size: 35.5*16.5*20.5cm/13.97*6.49*8.07inch Package Size: 42*24*28cm/16.53*9.44*11.02inch Package Included 1*Compressor Electric Motor 1*English Manual.
Specifications
| Base RPM | 3450RPM |
| FR | 143T |
| Design | Open Drip Proof (ODP) |
| Shaft Length | 2.25in |
| Input | 4.6kW |
| Part Type | Air Compressor Motor |
| Full Load Amps | 22-21 |
| IEC Frame Size | 143/5T |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | ODP (Open Drip-Proof) |
| Shaft Type | Keyed |
| Shaft Diameter | 7/8 in |
| Mounting Type | Base-Mounted |
| Brand | Unbranded |
| Reversible/Non-Reversible | Non-Reversible |
| ROT | CCW |
| Nominal Rated Input Voltage | 208-230V |
| ENC | IP23 |
| AC Phase | Single Phase |
| AC Motor Type | Induction/Asynchronous |
| SF | 1.0 |
| 95 | 255 |
| 53 | 245 |
| Type | Pancake Air Compressor |
| Voltage | 208-230 V |
| Manufacturer Warranty | 3 Years |
Application This electric motor can be used in compressors, as long as the crankshaft size matches. Specifications Color: Black Material: Pure Aluminum, Steel Plate, 45# Steel Surface Treatment: Plastic Spraying Voltage: 208-230V Horsepower: 5HP Type of Motor: Single-phase Rotation Direction: Anticlockwise Current: 21-22A Rotational Speed: 3450RPM Rated Torque: 10.3N-m Operating Noise: About 65dB Bracket Base Size: 16.5*16.5cm/6.49*6.49inch Crankshaft Diameter: 2cm/0.78inch Crankshaft Length: 6cm/2.36inch Gross Weight: 19.9kg/43.87lbs Net Weight: 19kg/41.88lbs Product Size: 35.5*16.5*20.5cm/13.97*6.49*8.07inch Package Size: 42*24*28cm/16.53*9.44*11.02inch Package Included 1*Compressor Electric Motor 1*English Manual.
