5 HP Replacement Air Compressor Pump 2 Stage 2 Cylinder 19 CFM w/ Head Unloaders

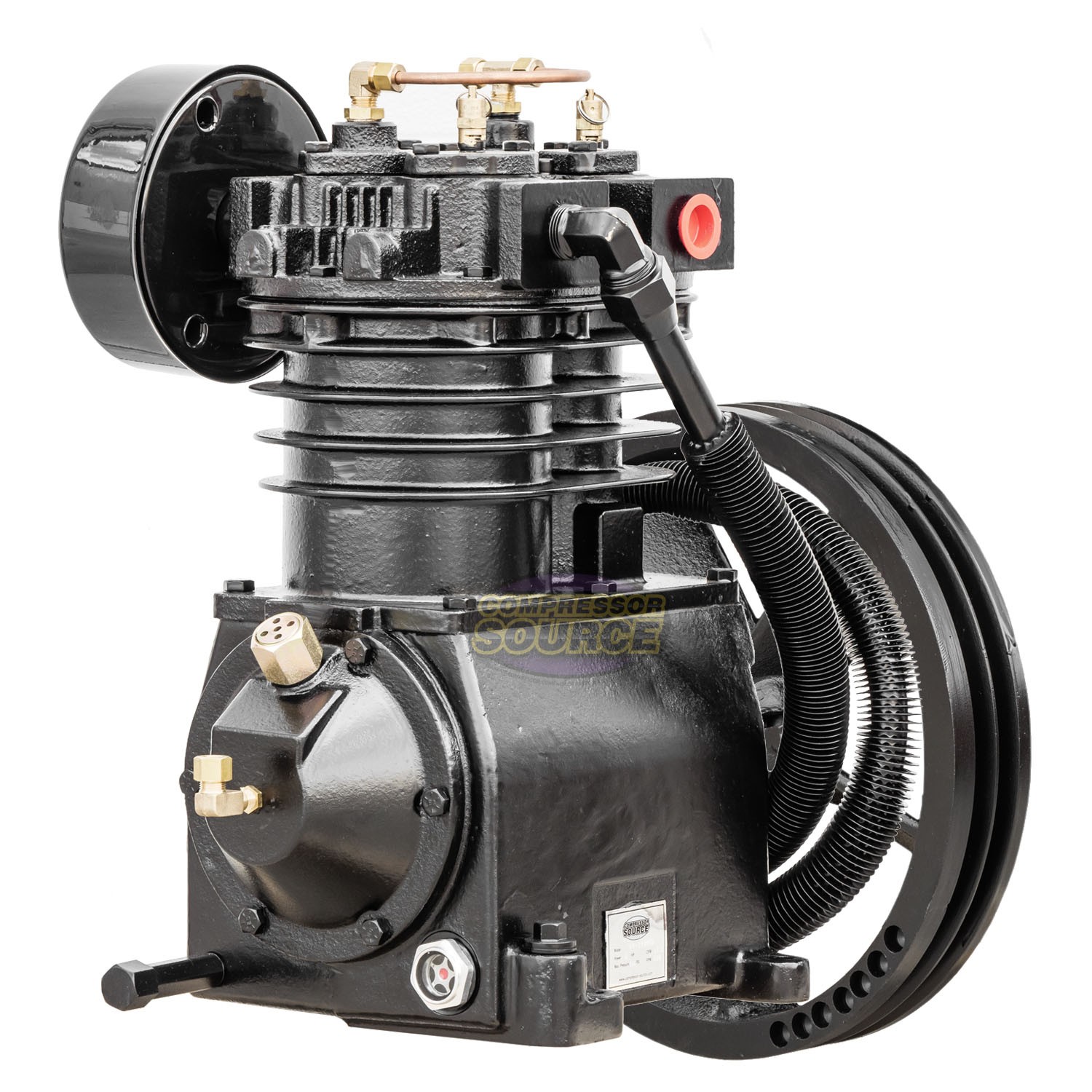

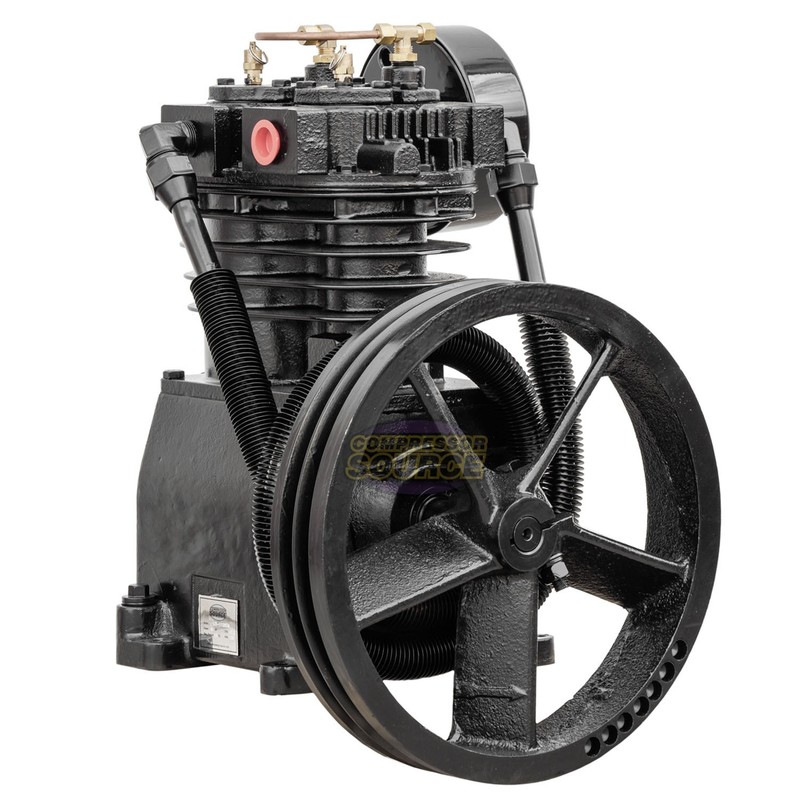

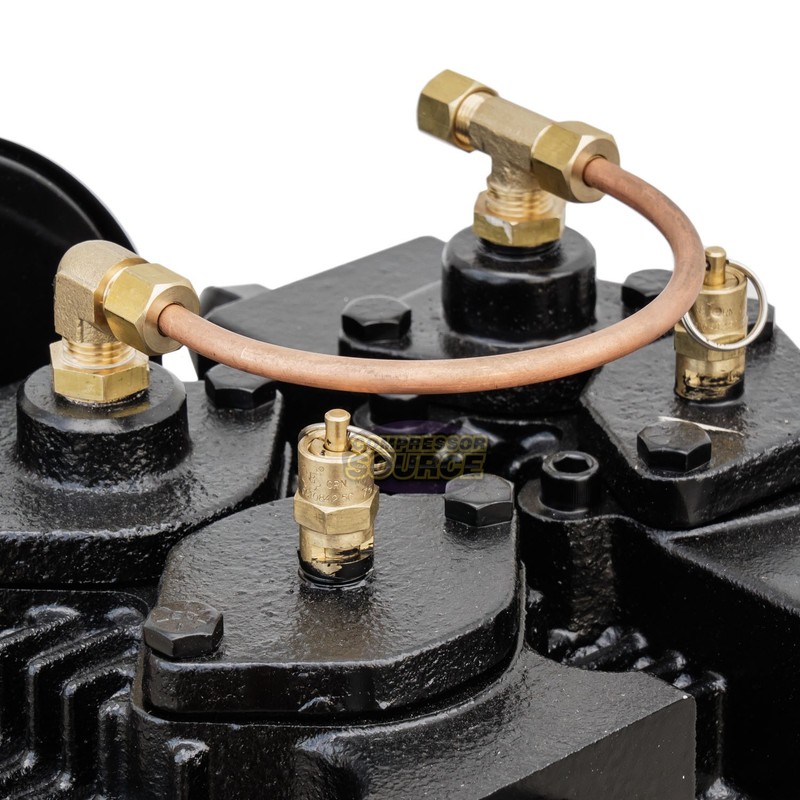

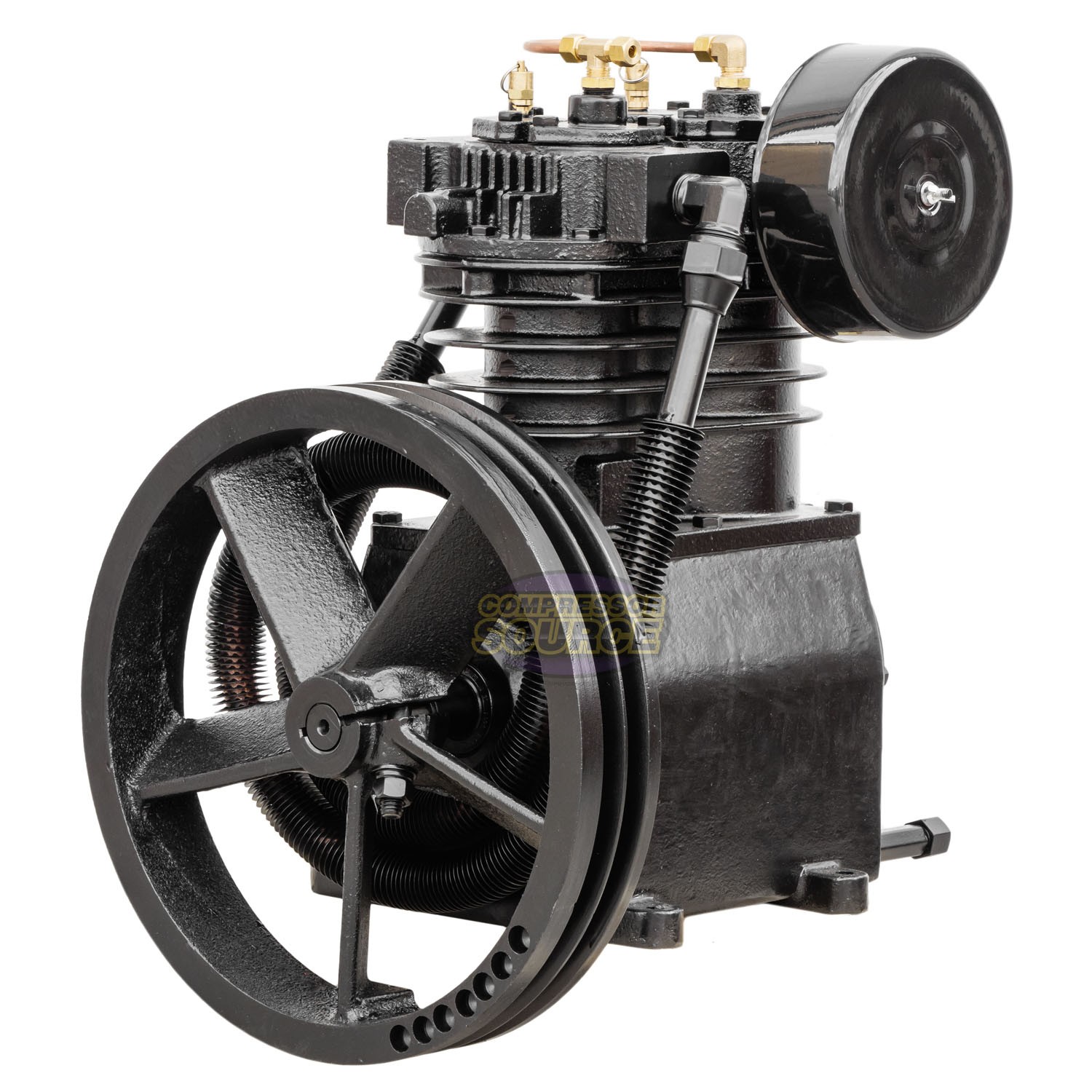

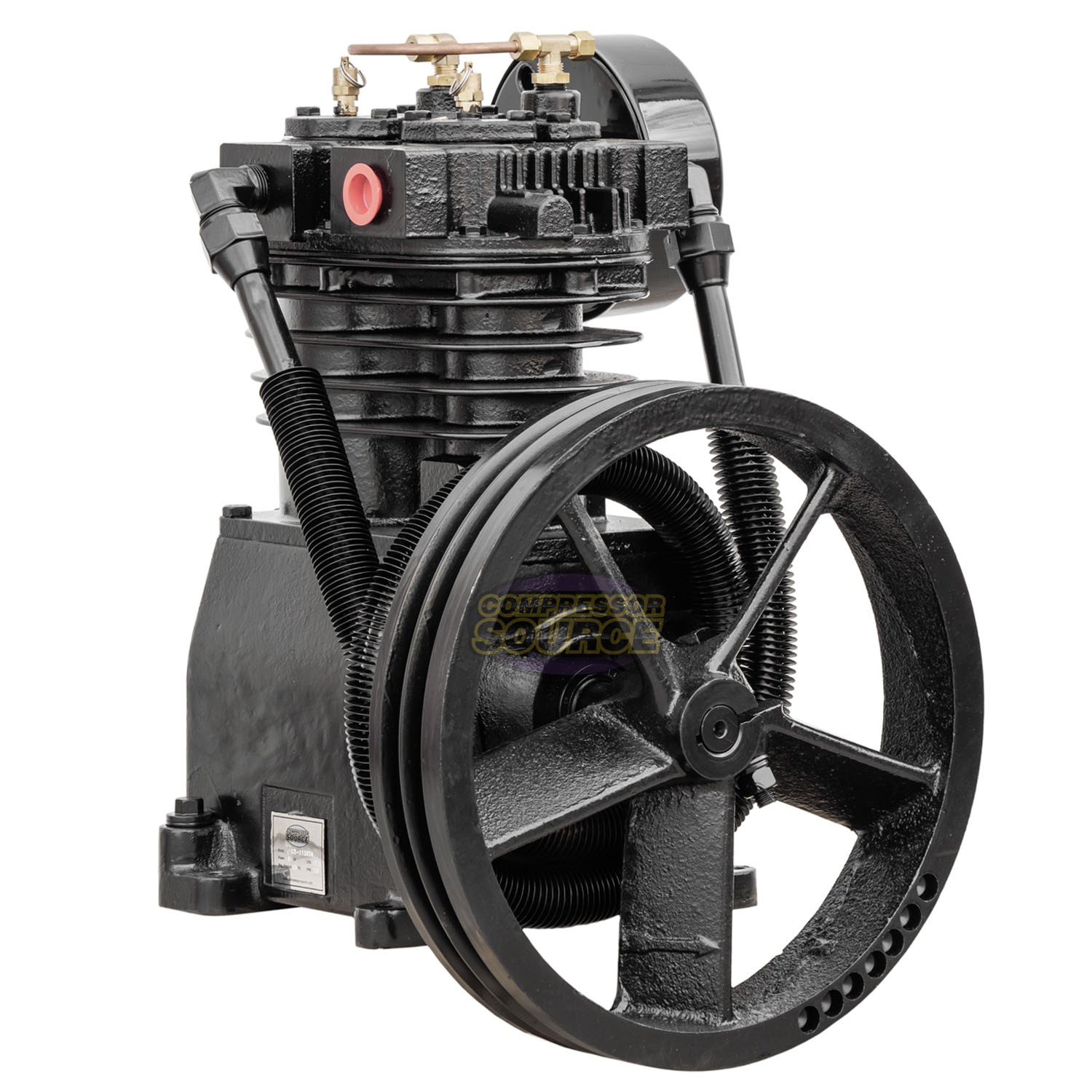

Two-cylinder cast iron two stage air compressor pump. This is a 5-horsepower pump that will deliver 17.2 CFM at 730 RPM and 18.71 CFM at 760 RPM with a max RPM of 900. This pump features head unloaders to be used with dual control or gas powered engines, this gives you the ability to freewheel the pump while running to lengthen life span of the pump in high-use applications. If this is not needed, just leave the head unloader line unhooked and it will function as a normal compressor. This pump is most commonly used on compressor tanks of 80 gallons or larger in size unless being used with a gas engine, where in most cases, the tank will be much smaller.
Specifications
| Brand | Compressor Source |
| Type | Piston Compressor |
| Power Source | Corded Electric |

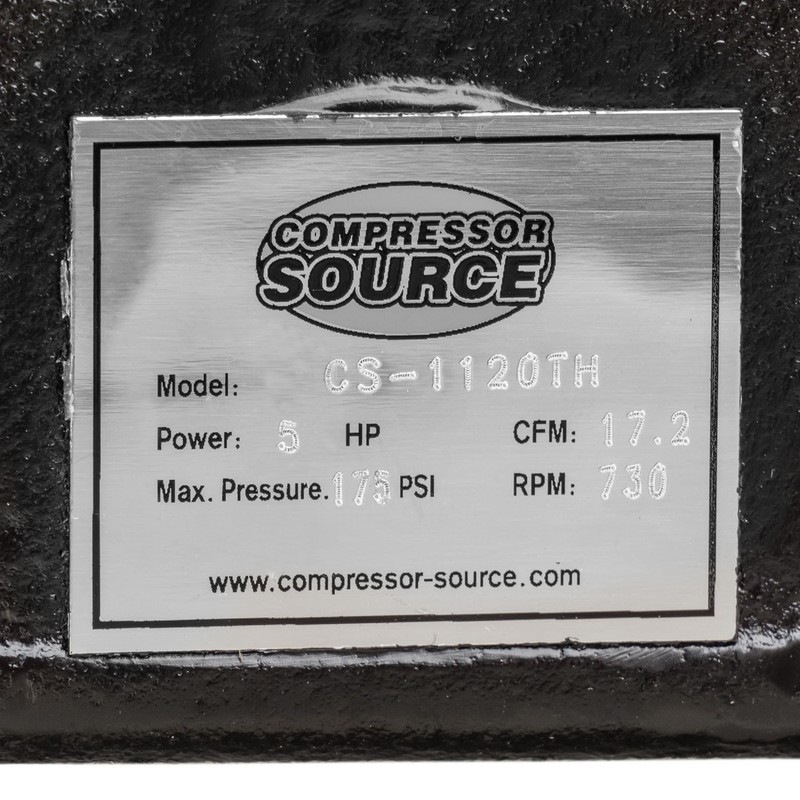

| MPN | CS1120TH |
| Color | Black |
| Country Of Origin | China |
| Model | CS1120TH |
| Item Width | 13.000 |
| Item Length | 17.000 |
| Item Height | 22.000 |
| Voltage | 220V |
| Tank Capacity | 65.1-100 gal |
| Lubrication Type | Oil-Lubricated |
| Tank Material | Cast Iron |
| Flow Rate | 18.71 CFM |
| Unit Type | Unit |
| Style | 5 HP Pump |
| Features | Two Stage Pump |
| Design | Two Stage Pump |
| UPC | 685650087979 |
Two-cylinder cast iron two stage air compressor pump. This is a 5-horsepower pump that will deliver 17.2 CFM at 730 RPM and 18.71 CFM at 760 RPM with a max RPM of 900. This pump features head unloaders to be used with dual control or gas powered engines, this gives you the ability to freewheel the pump while running to lengthen life span of the pump in high-use applications. If this is not needed, just leave the head unloader line unhooked and it will function as a normal compressor. This pump is most commonly used on compressor tanks of 80 gallons or larger in size unless being used with a gas engine, where in most cases, the tank will be much smaller.
