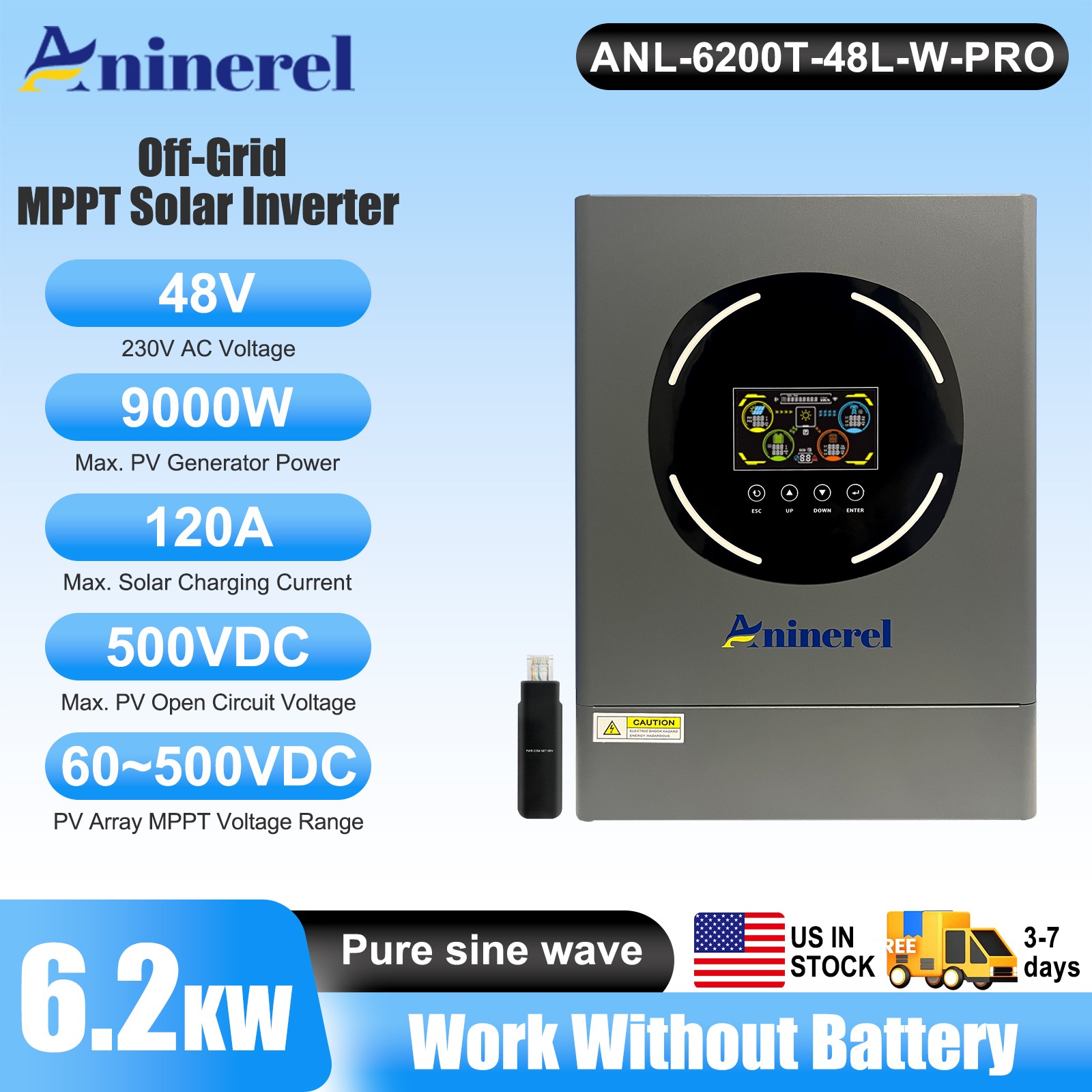

6200W 48VDC Hybrid Solar Inverter On/Off-Grid MPPT 120A Charger Controller 230V
Product Features PV Input 500Vdc Max Built-in MPPT 120A Capable to work without battery WIFI remote monitoring optional Dual output for smart load management Detachable dust cover for harsh environment Compatible work with LiFePo4 battery via Rs485 Lithium battery activation function by PV or Utility Support multiple output priority: UTL,SOL,SBU,SUB EQ function to optimize battery performance and extend lifecycle.
Specifications
| Country Of Origin | China |
| Brand | ANINEREL |
| Application | Home/Garden |
| Model | ANL-6200T-48L-W-PRO |
| Voltage | 48V |
| Type | Charger/Inverter |
| Features | LCD Display |
| MPN | ANL-6200T-48L-W-PRO |
| Color | Gray |
| Inverter Technology | Hybrid |
| Current Type | AC/DC |
| Size | 438x328x120MM |
| Product Type | Charger/inverter |
| Rated Power | 6200VA/6200W |
| Input Voltage | 230VAC |
| Overvoltage Protection | 12400VA |
| Efficiency (peak) | 96% |
| Waveform | Pure sine wave |
| Battery Voltage | 48VDC |
| Floating Charging Voltage | 54VDC |
| Overload Protection | 63VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| MPPT Range At Operating Voltage | 60-500VDC |
| Maximum Solar Charging Current | 120A |
| Maximum PVArray Performance | 6500W |
| Lithium Battery Activation | Yes |
| Lithium Battery Communication | Yes(RS485) |
Product Features PV Input 500Vdc Max Built-in MPPT 120A Capable to work without battery WIFI remote monitoring optional Dual output for smart load management Detachable dust cover for harsh environment Compatible work with LiFePo4 battery via Rs485 Lithium battery activation function by PV or Utility Support multiple output priority: UTL,SOL,SBU,SUB EQ function to optimize battery performance and extend lifecycle.
