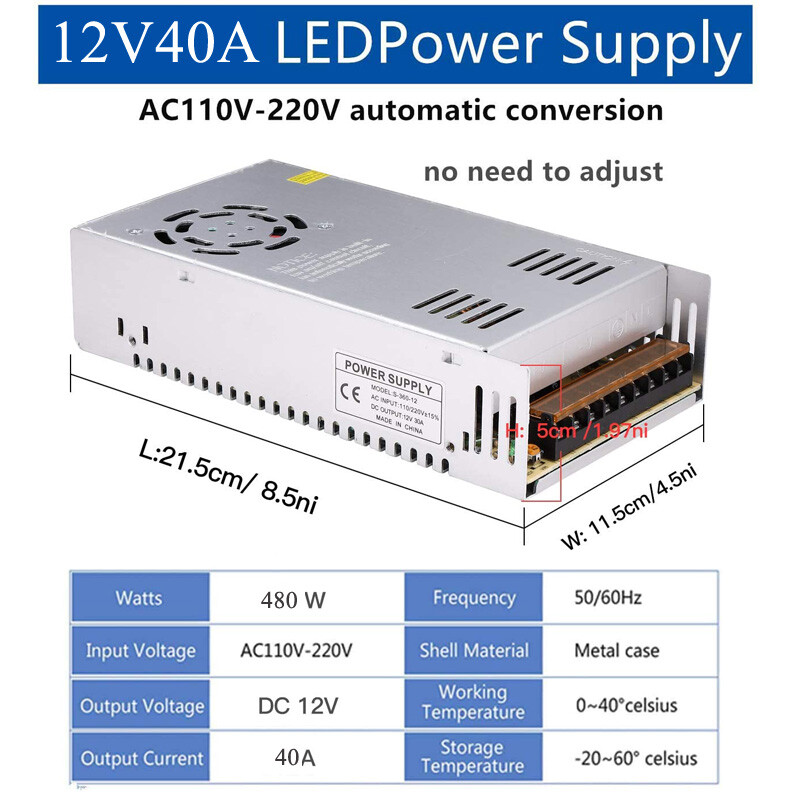

AC 110V TO DC 12V 40A 480W Switch Power Supply Adapter Switching for Led Strip
Store category Sign Up Now ! You may also like AC to DC 12V 40A Amp Switch Power Supply Adapter LED Strip Light Product Description We offer customize solution for your LED decoration. If you don't know how to match or what to buy, contact our customer service. Specifications: 100% full load burn-in test Universal AC input / full range It's good quality & high performance Input: AC110-220V 50/60Hz Out put: DC 12V 40A ; Protections: overload/ over voltage/ short circuit Cooling by free air convection (Not suggest for use in bathroom) Connection: L, N: AC power input GND: DC power output "-" V: DC power output "+" +V / ADJ: Adjust the output voltage Safety Compliance: CCC/ FCC / CE Working Temperature: 0~40℃ Storage Temperature: -20~60℃ Ambient Humidity: 0~95% Non-Condensation Dimension : (Manual measurement,Maybe it has 3-8mm measurement error.) Type (Output) Size (LxWxH) Intput Voltage (AC) 12V 0.8A 12W 85mm*38mm*30mm 85V-265V 12V 2A 24W 85mm*57mm*33mm 85V-265V 12V 3A 36W 85mm*58mm*38mm 85V-265V 12V 5A 60W 110mm*78mm*36mm 85V-265V 12V 8A 96W 160mm*98mm*42mm 85V-265V 12V 10A 120W 162mm*98mm*44mm 85V-265V 12V 12.5A 150W 198mm*98mm*43mm 85V-265V 12V 15A 180W 198mm*98mm*43mm 85V-265V 12V 20A 240W 200mm*100mm*44mm 110V/220V +/- 15% 12V 30A 360W 200mm*100mm*45mm 110V/220V +/- 15% 12V 40A 480W 215mm*115mm*50mm 110V/220V +/- 15% 12V 50A 600W 242mm*124mm*65mm 110V/220V +/- 15% 12V 60A 720W 245mm*125mm*68mm 110V/220V +/- 15% 24V 1A 24W 85mm*57mm*33mm 85V-265V 24V 2A 50W 86mm*58mm*35mm 85V-265V 24V 3A 72W 110mm*78mm*35mm 85V-265V 24V 5A 120W 158mm*98mm*40mm. 85V-265V 24V 10A 240W 198mm*98mm*40mm 85V-265V 24V 15A 360W 198mm*110mm*50mm 110V/220V +/- 15% 24V 20A 480W 198mm*110mm*50mm 110V/220V +/- 15% 24V 25A 600W 215mm*115mm*50mm 110V/220V +/- 15% 24V 30A 720W 215mm*115mm*50mm 110V/220V +/- 15% 24V 33A 792W 242mm*124mm*65mm 110V/220V +/- 15% 5V 2A 10W 85mm*38mm*30mm 85V-265V 5V 6A 40W 85mm*57mm*33mm 85V-265V 5V 10A 50W 110mm*78mm*36mm 85V-265V 5V 20A 50W 160mm*98mm*42mm 85V-265V 5V 30A 50W 162mm*98mm*44mm 85V-265V 5V 40A 200W 198mm*98mm*43mm 85V-265V 5V 50A 250W 200mm*100mm*44mm 85V-265V 5V 60A 300W 200mm*100mm*45mm 85V-265V 5V 72A 360W 215mm*115mm*50mm 110V/220V +/- 15% Package include: 1 x Power supply Note: 1.This is a DC12V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. 2.Safety design with shortage protection, overload protection and auto voltage switching. 3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED. 4.Full range of current output is possible for LED lighting with dimmable function. 5.Voltage output fine adjustment is available for different power condition. About Calculate Method: If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m Special Note: This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws. Professional Installation of qualified electrician is highly recommended. Delivery details Payment Warranty & Return Other Policies Contact us Delivery details For shipping options Notes: 1. We sent packages via USPS/UPS randomly . Usually it takes 1-6 business days you. 2 .Items are generally shipped within 1 business days after the payment cleared. We will ship your items to the address provided by EBAY. Please make sure your ebay address and full name is right. Payment 1.We accept payment via eBay Only. 2.Payment should be Complete within 5 day business days after the Auction closed. 3.Please be a serious buyer on ebay. Warranty & Return 1.Every item is checked carefully before shipping. 2.If you receive an incorrect,damaged,defective,or item not as described,please feel free to contact us for a partial/full refund or resend. 3.For any reason you are not satisfied with our products,please return within 30 days.A full refund will be issued to you immediately. 4.Buyers are responsible for the returning shipping cost under any circumstances. 5.Return items should include the original packaging and accessories. 6. If you do not receive your item(s) by 8 business days,Please feel free to contact us via eBay message or E-mail, we will try our best to solve any problems with you. Other Policies 1. We will leave POSITIVE FEEDBACK after you received item. Please contact us if you are not satisfied. 2. All E-mail or eBay message will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your E-mail or eBay message and we will reply you ASAP. 3. Please contact us before leaving a negative feedback ,give us a chance to solve your problem. Contact us 1.Welcome to wholesale and purchase,If you have any question ,Please contact us via eBay message or E-mail. 2.We will reply you within 24 hours.(except weekends and holidays). 3.We strive for 100% customer satisfaction. 100% full load burn-in test Universal AC input / full range It's good quality & high performance Input: AC110-220V 50/60Hz Out put: DC 12V / 5A 8A 10A 15A 20A 30A 40A 50A 60A ; DC 24V / 2A 3A 5A 10A 15A 30A Protections: overload/ over voltage/ short circuit Cooling by free air convection (Not suggest for use in bathroom) Connection: L, N: AC power input GND: DC power output "-" V: DC power output "+" +V / ADJ: Adjust the output voltage Safety Compliance: CCC/ FCC / CE Working Temperature: 0~40℃ Storage Temperature: -20~60℃ Ambient Humidity: 0~95% Non-Condensation Note: 1.This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. Package include: 1 x Power supply
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Department | Adults |
| Installation Area | Indoor |
| Type | Power Supply Adapter |
| Compatible Product | Led strips Lamp |
| Color | Silver |
| Year Manufactured | 2022 |
| Output Voltage | 12 V |
| Bulb Shape Code | all |
| Brand | Unbranded |
| Manufacturer Warranty | 3 Years |
| Amperage | 40 A |
| Connectors | Screw |
| Country/Region Of Manufacture | China |
| Style | Modern |
| Material | Aluminum |
| Power Source | Corded |
| Bulb Wattage | 480W |
| Lighting Technology | LED |
| Power | 480W |
| Labels & Certifications | CE Marking |
| Voltage | 110 V |
Store category Sign Up Now ! You may also like AC to DC 12V 40A Amp Switch Power Supply Adapter LED Strip Light Product Description We offer customize solution for your LED decoration. If you don't know how to match or what to buy, contact our customer service. Specifications: 100% full load burn-in test Universal AC input / full range It's good quality & high performance Input: AC110-220V 50/60Hz Out put: DC 12V 40A ; Protections: overload/ over voltage/ short circuit Cooling by free air convection (Not suggest for use in bathroom) Connection: L, N: AC power input GND: DC power output "-" V: DC power output "+" +V / ADJ: Adjust the output voltage Safety Compliance: CCC/ FCC / CE Working Temperature: 0~40℃ Storage Temperature: -20~60℃ Ambient Humidity: 0~95% Non-Condensation Dimension : (Manual measurement,Maybe it has 3-8mm measurement error.) Type (Output) Size (LxWxH) Intput Voltage (AC) 12V 0.8A 12W 85mm*38mm*30mm 85V-265V 12V 2A 24W 85mm*57mm*33mm 85V-265V 12V 3A 36W 85mm*58mm*38mm 85V-265V 12V 5A 60W 110mm*78mm*36mm 85V-265V 12V 8A 96W 160mm*98mm*42mm 85V-265V 12V 10A 120W 162mm*98mm*44mm 85V-265V 12V 12.5A 150W 198mm*98mm*43mm 85V-265V 12V 15A 180W 198mm*98mm*43mm 85V-265V 12V 20A 240W 200mm*100mm*44mm 110V/220V +/- 15% 12V 30A 360W 200mm*100mm*45mm 110V/220V +/- 15% 12V 40A 480W 215mm*115mm*50mm 110V/220V +/- 15% 12V 50A 600W 242mm*124mm*65mm 110V/220V +/- 15% 12V 60A 720W 245mm*125mm*68mm 110V/220V +/- 15% 24V 1A 24W 85mm*57mm*33mm 85V-265V 24V 2A 50W 86mm*58mm*35mm 85V-265V 24V 3A 72W 110mm*78mm*35mm 85V-265V 24V 5A 120W 158mm*98mm*40mm. 85V-265V 24V 10A 240W 198mm*98mm*40mm 85V-265V 24V 15A 360W 198mm*110mm*50mm 110V/220V +/- 15% 24V 20A 480W 198mm*110mm*50mm 110V/220V +/- 15% 24V 25A 600W 215mm*115mm*50mm 110V/220V +/- 15% 24V 30A 720W 215mm*115mm*50mm 110V/220V +/- 15% 24V 33A 792W 242mm*124mm*65mm 110V/220V +/- 15% 5V 2A 10W 85mm*38mm*30mm 85V-265V 5V 6A 40W 85mm*57mm*33mm 85V-265V 5V 10A 50W 110mm*78mm*36mm 85V-265V 5V 20A 50W 160mm*98mm*42mm 85V-265V 5V 30A 50W 162mm*98mm*44mm 85V-265V 5V 40A 200W 198mm*98mm*43mm 85V-265V 5V 50A 250W 200mm*100mm*44mm 85V-265V 5V 60A 300W 200mm*100mm*45mm 85V-265V 5V 72A 360W 215mm*115mm*50mm 110V/220V +/- 15% Package include: 1 x Power supply Note: 1.This is a DC12V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. 2.Safety design with shortage protection, overload protection and auto voltage switching. 3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED. 4.Full range of current output is possible for LED lighting with dimmable function. 5.Voltage output fine adjustment is available for different power condition. About Calculate Method: If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m Special Note: This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws. Professional Installation of qualified electrician is highly recommended. Delivery details Payment Warranty & Return Other Policies Contact us Delivery details For shipping options Notes: 1. We sent packages via USPS/UPS randomly . Usually it takes 1-6 business days you. 2 .Items are generally shipped within 1 business days after the payment cleared. We will ship your items to the address provided by EBAY. Please make sure your ebay address and full name is right. Payment 1.We accept payment via eBay Only. 2.Payment should be Complete within 5 day business days after the Auction closed. 3.Please be a serious buyer on ebay. Warranty & Return 1.Every item is checked carefully before shipping. 2.If you receive an incorrect,damaged,defective,or item not as described,please feel free to contact us for a partial/full refund or resend. 3.For any reason you are not satisfied with our products,please return within 30 days.A full refund will be issued to you immediately. 4.Buyers are responsible for the returning shipping cost under any circumstances. 5.Return items should include the original packaging and accessories. 6. If you do not receive your item(s) by 8 business days,Please feel free to contact us via eBay message or E-mail, we will try our best to solve any problems with you. Other Policies 1. We will leave POSITIVE FEEDBACK after you received item. Please contact us if you are not satisfied. 2. All E-mail or eBay message will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your E-mail or eBay message and we will reply you ASAP. 3. Please contact us before leaving a negative feedback ,give us a chance to solve your problem. Contact us 1.Welcome to wholesale and purchase,If you have any question ,Please contact us via eBay message or E-mail. 2.We will reply you within 24 hours.(except weekends and holidays). 3.We strive for 100% customer satisfaction. 100% full load burn-in test Universal AC input / full range It's good quality & high performance Input: AC110-220V 50/60Hz Out put: DC 12V / 5A 8A 10A 15A 20A 30A 40A 50A 60A ; DC 24V / 2A 3A 5A 10A 15A 30A Protections: overload/ over voltage/ short circuit Cooling by free air convection (Not suggest for use in bathroom) Connection: L, N: AC power input GND: DC power output "-" V: DC power output "+" +V / ADJ: Adjust the output voltage Safety Compliance: CCC/ FCC / CE Working Temperature: 0~40℃ Storage Temperature: -20~60℃ Ambient Humidity: 0~95% Non-Condensation Note: 1.This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc. Package include: 1 x Power supply
