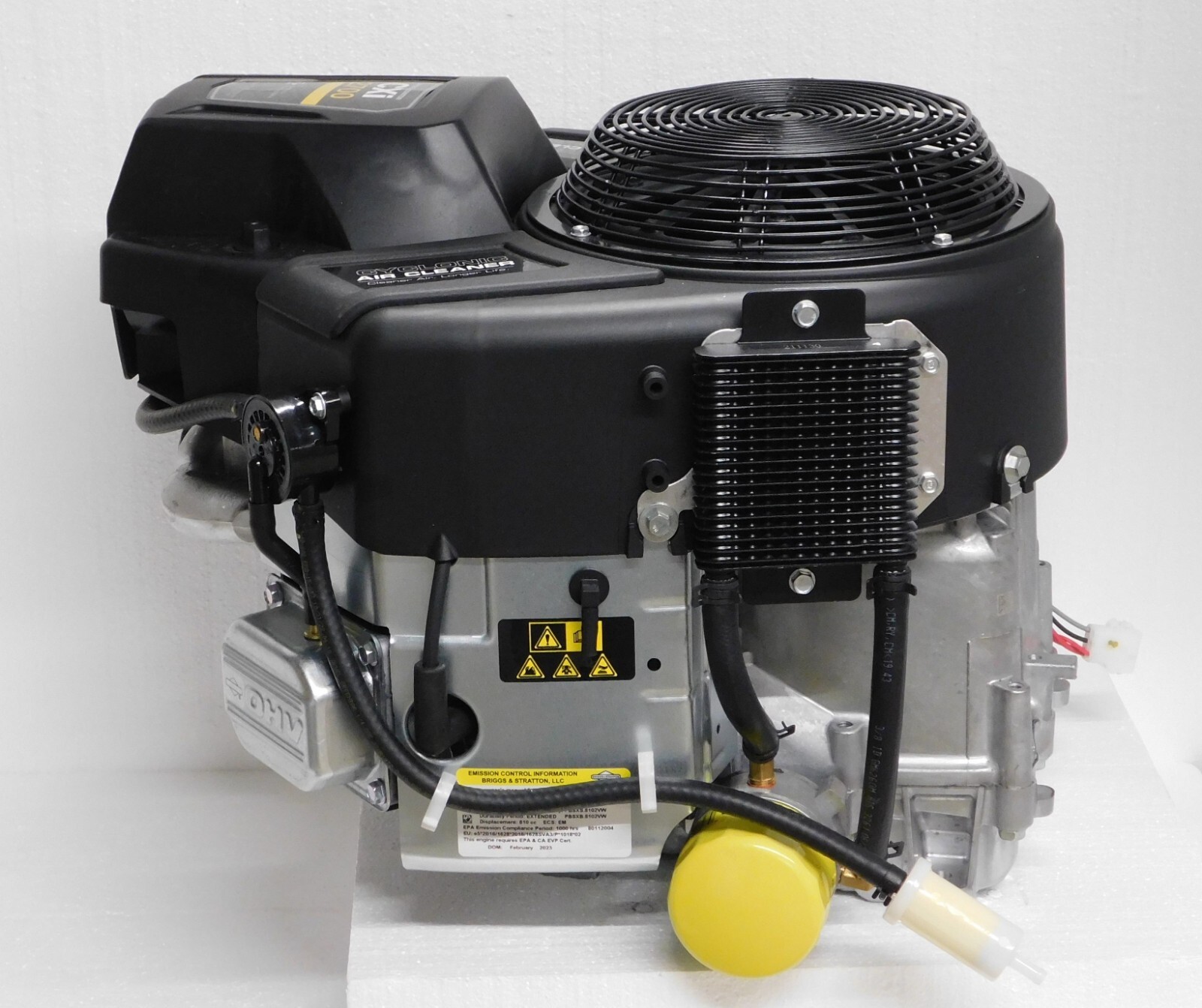

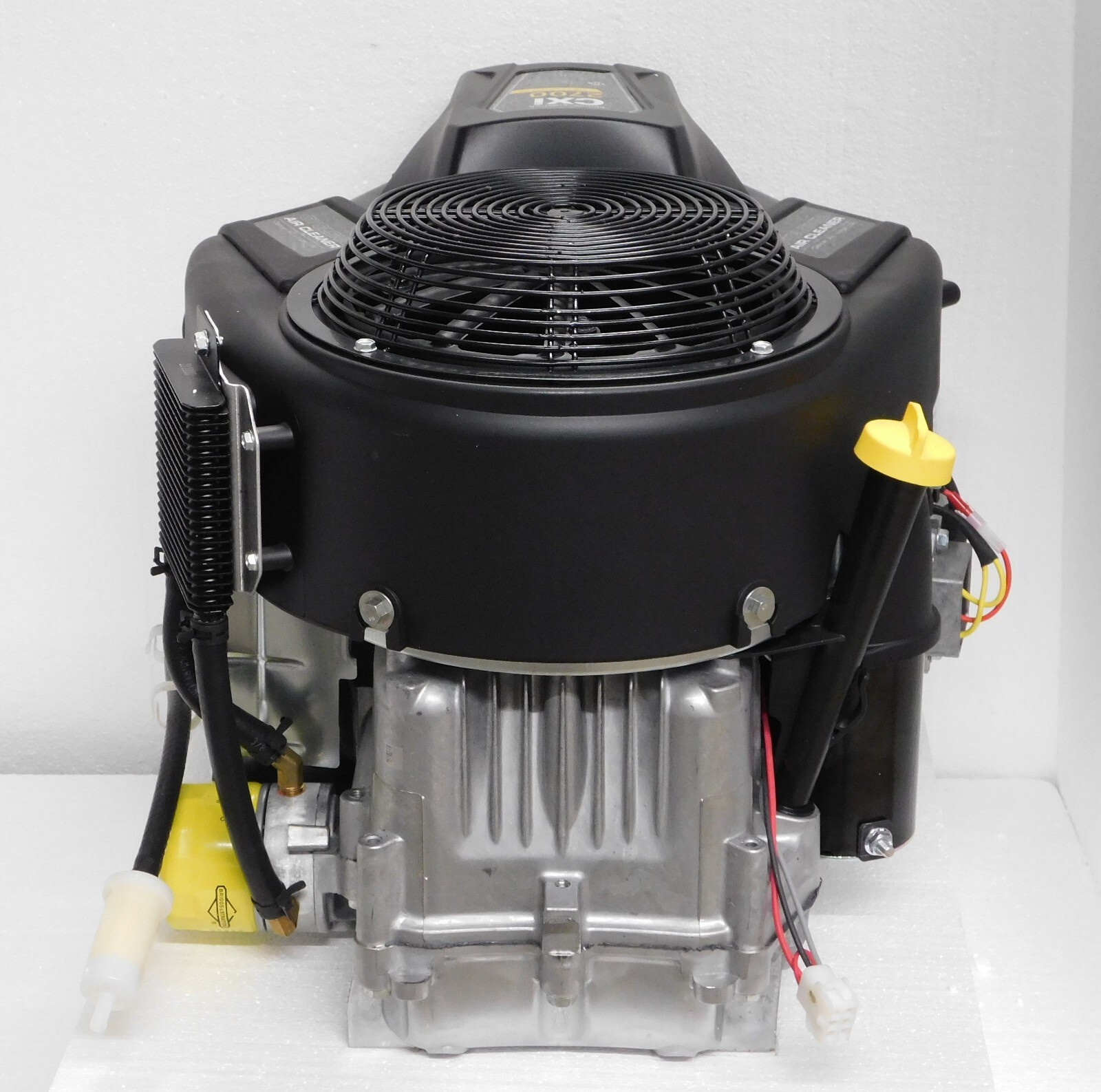

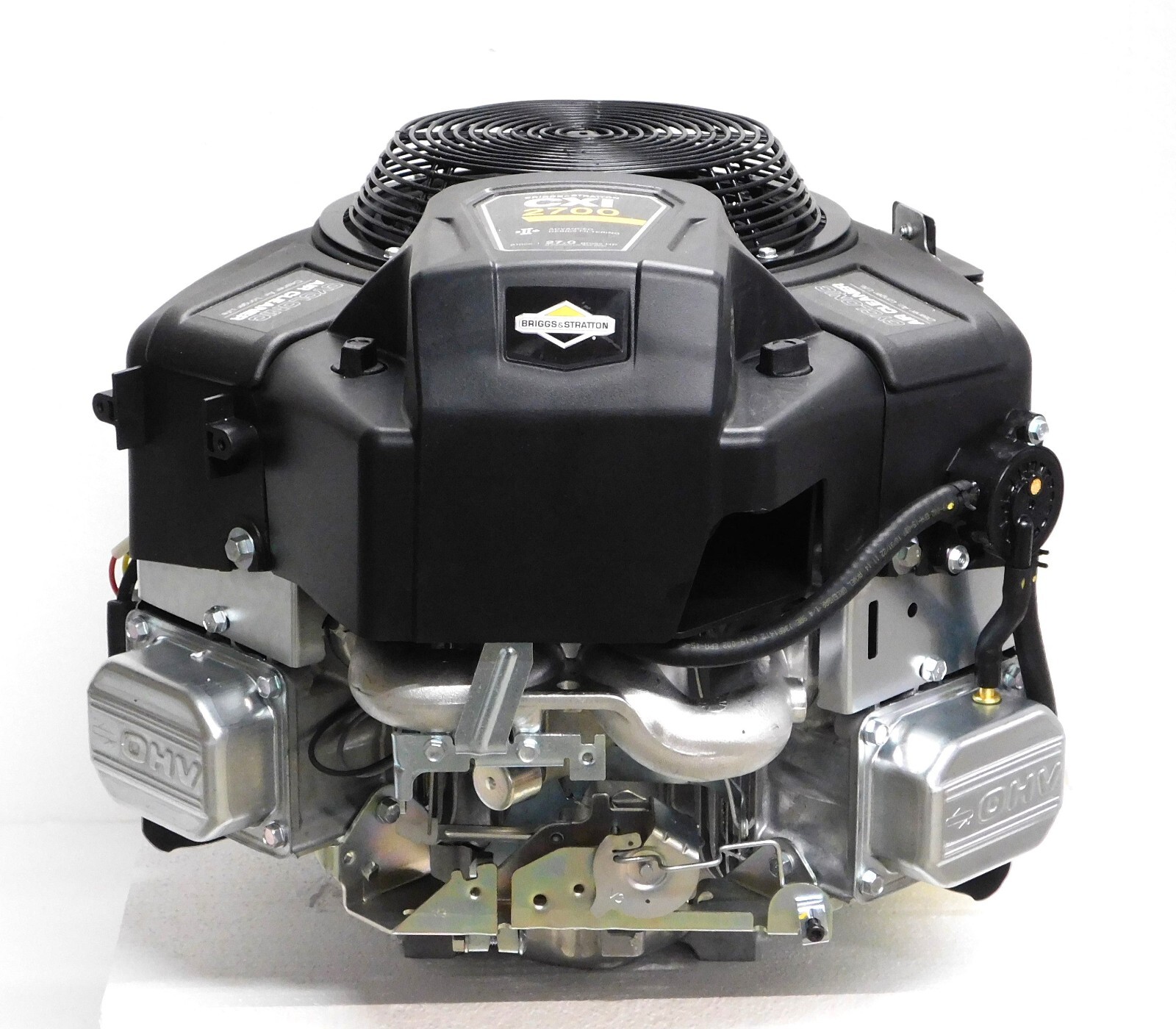

Briggs & Stratton 27 HP 810cc CXi Series Engine 1-1/8 x 4-5/16 #49T877-0035
Briggs & Stratton 27 HP 810cc CXi Series Engine 1-1/8 x 4-5/16 #49T877-0035 Briggs & Stratton 27 HPProfessional Series Vertical Shaft OHV Engine MODEL NUMBER:49T877-0035 POWER OUTPUT:27 Horse Power SHAFT MOUNTING:Vertical Shaft SHAFT SIZE: (D x L)1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway STARTER TYPE:Electric Starter APPLICATION(S):Riding Mower Engine WEIGHT:94 lbs REPLACES:NEW SERIES! Fits current 20-27 HP Intek V-Twin OHV bolt patterns WARRANTY:2 Years Consumer / 1 Year Commercial Covered Through Briggs & Stratton Service Network NOTES/FEATURES: 27hp Briggs OHV 1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway. Manual chokeFits current 20-27 HP Intek V-Twin OHV bolt patterns. Electronic Fuel Management systemOil CoolerFuel Pump Horsepower*: 27.00Engine Displacement: 810 ccNumber of Cylinders: V-twinEngine Configuration: Vertical ShaftEngine Technology: OHVDimensions (LxWxH) (inches): 19.1 x 18.7 x 14.3Weight (lbs): 94.0Bore (cu in): 3.3Stroke: 2.89Engine Fuel: GasolineFuel Tank Capacity (qt): NALubrication System: Full PressureOil Capacity (oz): 64Oil Filter: YesStarter: 12 Volt High Output Long FrameAir Filter: Advanced Debris Management System
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Briggs & Stratton |
| Crankshaft Direction | Vertical |
| Horsepower | 27hp |
| MPN | 49T877-0035 |
| Fuel Type | Gasoline |
| Emissions | Not for sale in CA |
Briggs & Stratton 27 HP 810cc CXi Series Engine 1-1/8 x 4-5/16 #49T877-0035 Briggs & Stratton 27 HPProfessional Series Vertical Shaft OHV Engine MODEL NUMBER:49T877-0035 POWER OUTPUT:27 Horse Power SHAFT MOUNTING:Vertical Shaft SHAFT SIZE: (D x L)1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway STARTER TYPE:Electric Starter APPLICATION(S):Riding Mower Engine WEIGHT:94 lbs REPLACES:NEW SERIES! Fits current 20-27 HP Intek V-Twin OHV bolt patterns WARRANTY:2 Years Consumer / 1 Year Commercial Covered Through Briggs & Stratton Service Network NOTES/FEATURES: 27hp Briggs OHV 1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway. Manual chokeFits current 20-27 HP Intek V-Twin OHV bolt patterns. Electronic Fuel Management systemOil CoolerFuel Pump Horsepower*: 27.00Engine Displacement: 810 ccNumber of Cylinders: V-twinEngine Configuration: Vertical ShaftEngine Technology: OHVDimensions (LxWxH) (inches): 19.1 x 18.7 x 14.3Weight (lbs): 94.0Bore (cu in): 3.3Stroke: 2.89Engine Fuel: GasolineFuel Tank Capacity (qt): NALubrication System: Full PressureOil Capacity (oz): 64Oil Filter: YesStarter: 12 Volt High Output Long FrameAir Filter: Advanced Debris Management System
