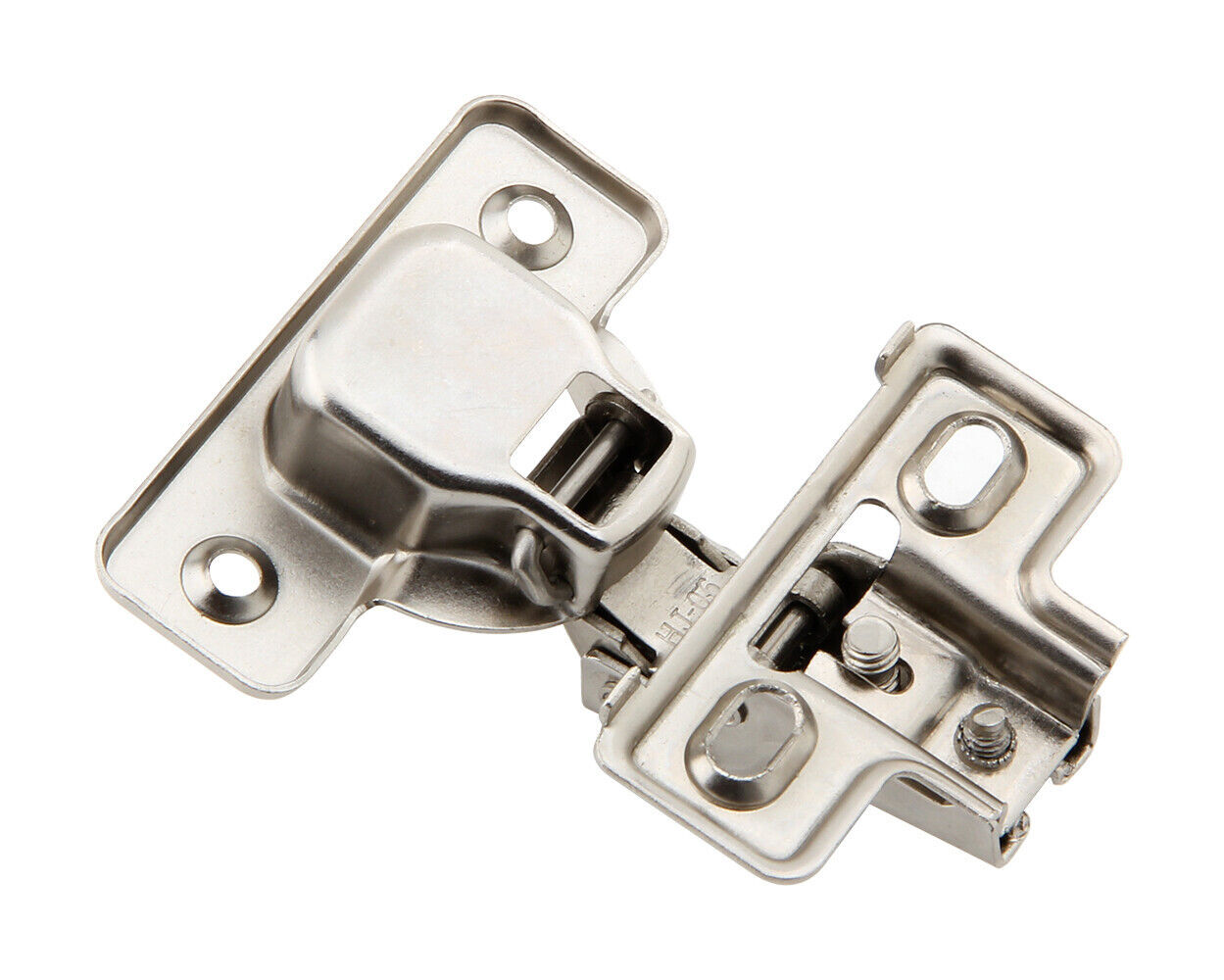

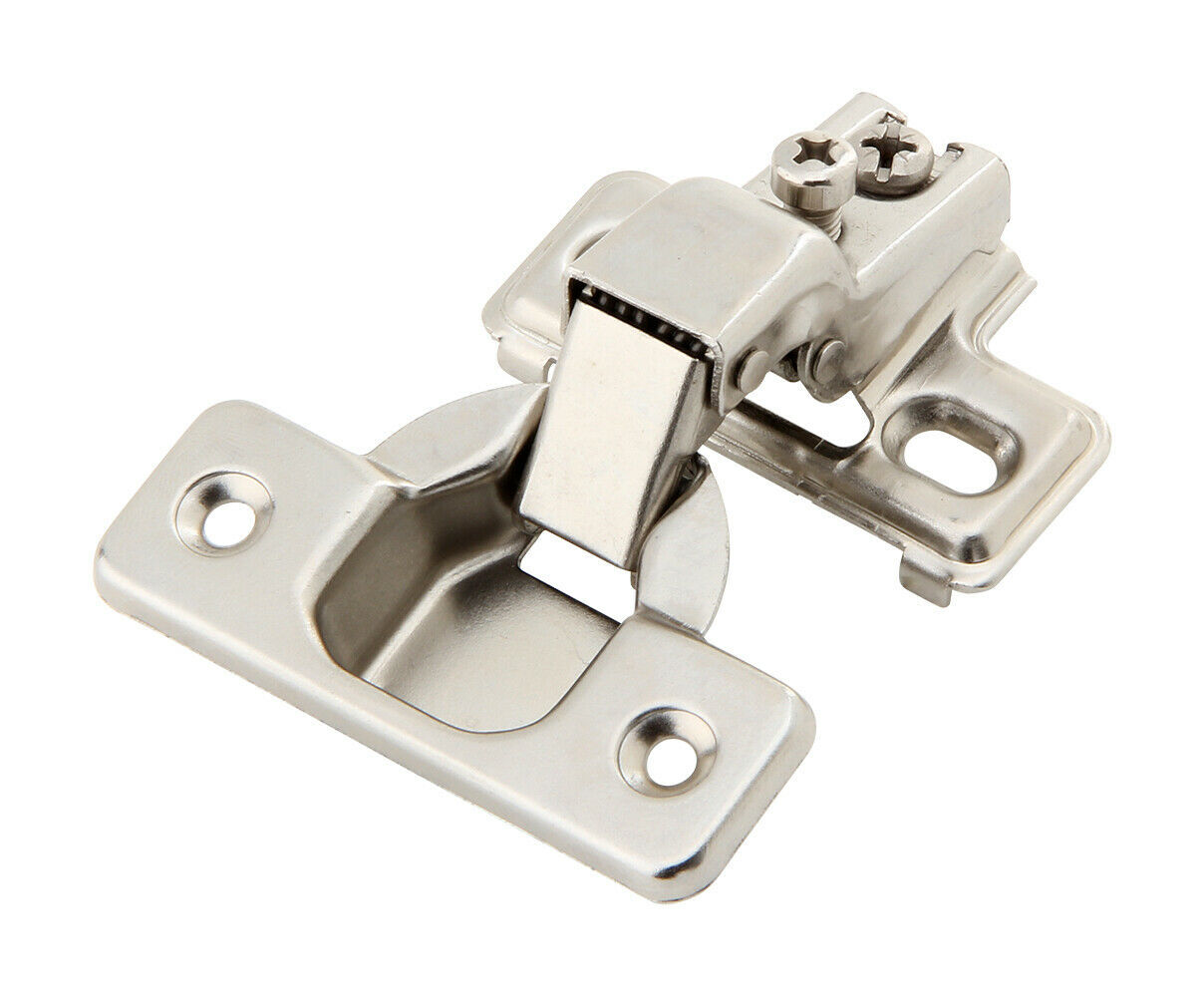

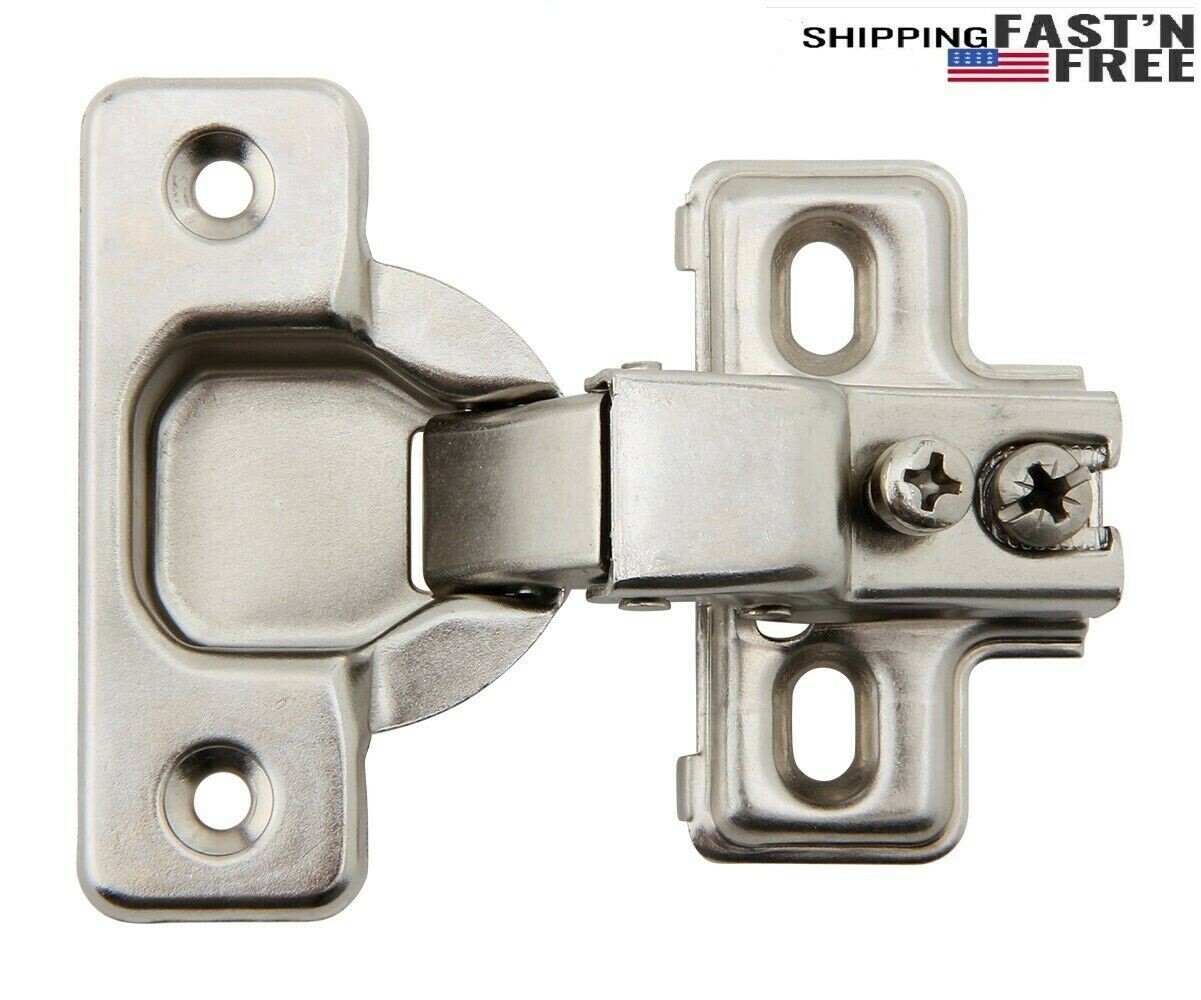

Face Frame Concealed Euro 105 Deg Self Closing Compact Cabinet Hing ( 6-50 Set)

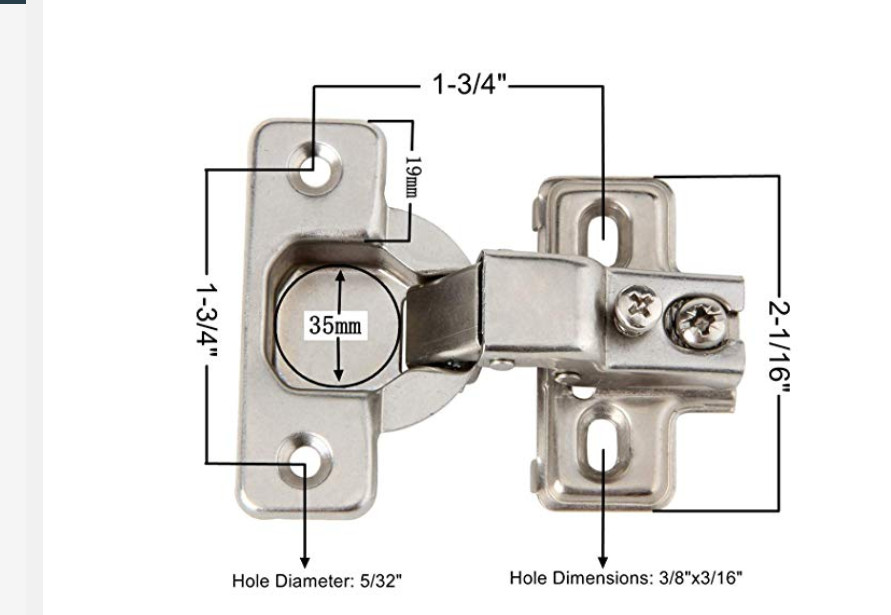

Made from steel with a steel nickel plated finishIntended for use with face-frame style cabinets, 5/8" overlay, also adjustable to 1/2" overlayOpening angel: 105 Degree. Edge of door to edge of hole dimension 1/4" or 6mm. The drilling Cup hole Diameter is 35mmMounting screws are included Screw to Screw 45mm Mounting Plate 32mm Hinge Cup Center point 20.5mm (Door Edge to Cup Center) Ships in 1 Business Day
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Material | Steel |
| Type | Cabinet Door Hinge |
| Brand | Y&Y Decor |
Made from steel with a steel nickel plated finishIntended for use with face-frame style cabinets, 5/8" overlay, also adjustable to 1/2" overlayOpening angel: 105 Degree. Edge of door to edge of hole dimension 1/4" or 6mm. The drilling Cup hole Diameter is 35mmMounting screws are included Screw to Screw 45mm Mounting Plate 32mm Hinge Cup Center point 20.5mm (Door Edge to Cup Center) Ships in 1 Business Day
