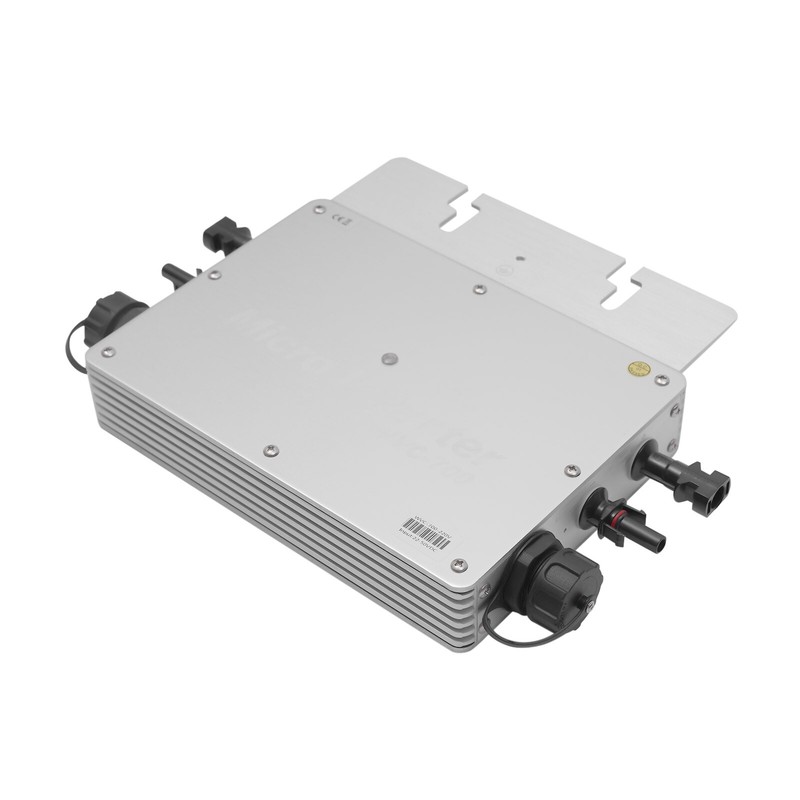

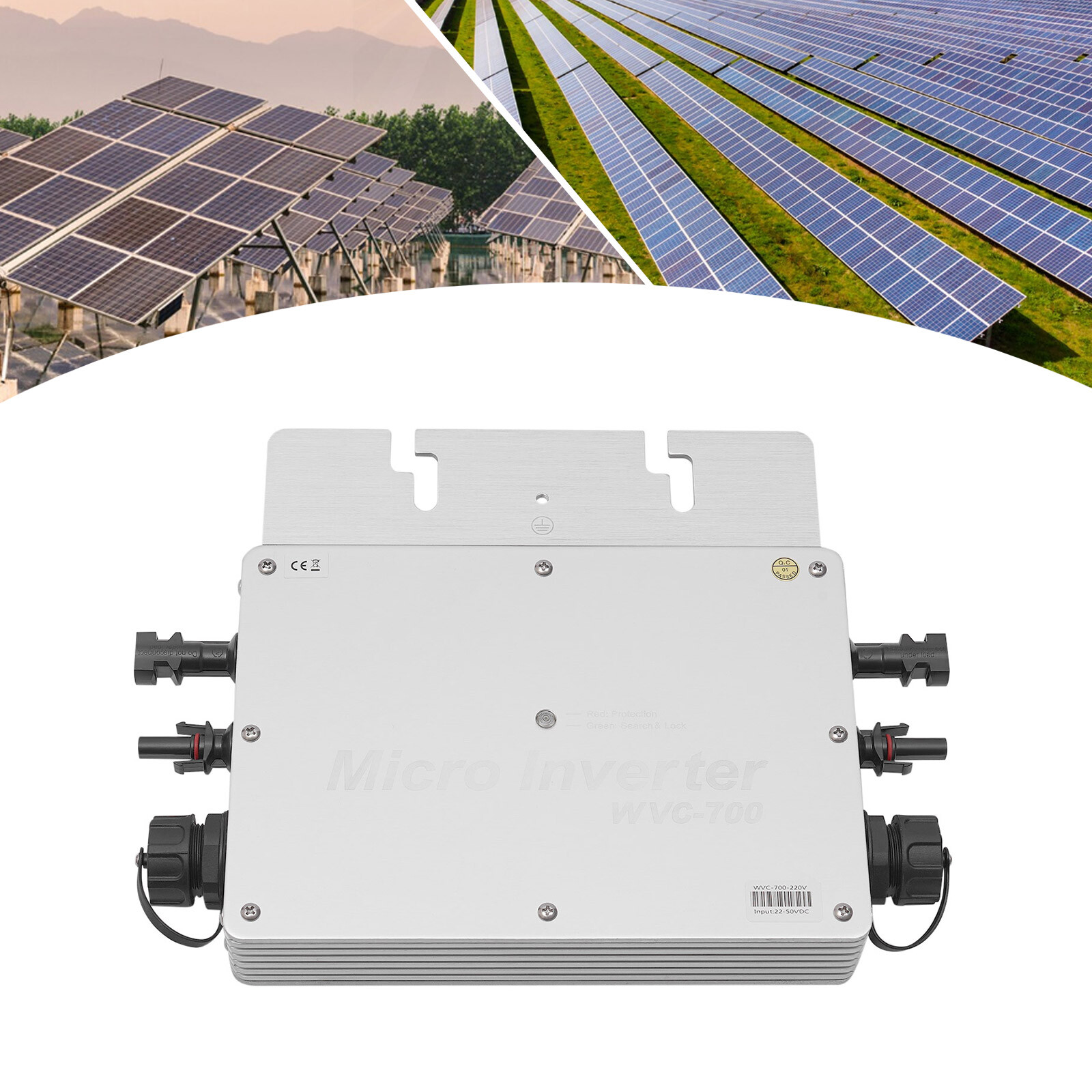

IP65 Micro Inverter Solar Grid Tie Micro Power Inverter Kit 120V 700W Waterproof
Specification Material: Aluminum Alloy Color: Silver Model: XJ-WVC-700W Plug: US Standard Voltage: 110V Maximum Input Power: 2 × 350W Recommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 30-50V Maximum Input DC Voltage: 54V Peak Power Tracking Voltage: 22-45V Operating Voltage Range: 17-50V Minimum/Maximum Starting Voltage: 22-50V Maximum DC Short Circuit Current: 40A Maximum Input Working Current: 30A Output Voltage: 120V Output Peak Power: 700W Rated Output Power: 650Watt Rated Output Current: 6.36A Rated Voltage Range: 80-160VAC Rated Frequency Range: 57-62.5Hz Power factor: >99% Number of Connections Per Series Circuit: 6 (Single-phase) Output Efficiency: 120V Static MPPT Efficiency: 99.5% Maximum Output Efficiency: 91.2% Power Loss at Night: <1W Total Wave Distortion: <5%.
Specifications
| Brand | Unbranded |
| Color | Silver |
| Power Source | Solar |
| Type | Charger/Inverter |
| Model | XJ-WVC-700W |
| Application | Home/Garden |
| Voltage | 110V |
| Power | 700W |
| Current Rating | 22-50V |
| Resistance Properties | Waterproof |
| Current Output | 120V |
| Material | Aluminium Alloy |
| Plug Type | US Standard |
| Recommended Solar Panel | Power 2 × 350W |
| Maximum Input DC Voltage | 54V |
| Peak Power Tracking Voltage | 22-45V |
| Min/Max Start-up Voltage | 22-50V |
| Maximum DC Short Circuit Current | 40A |
| Maximum Input Operating Current | 30A |
| Output Peak Power | 700W |
| Rated Output Power | 650Watt |
| Rated Output Current | 6.36A |
| Rated Voltage Range | 80-160VAC |
| Rated Frequency Range | 57-62.5Hz |
| Power Factor | ＞99％ |
| Number Of Circuit Connections Per String | 6 (Single-phase) |
| Static MPPT Efficiency | 99.5% |
| Maximum Output Efficiency | 91.2% |
| Operating Temperature Range | - 40 ℃ to+60 ℃ |
| Waterproof Rating | IP65 |
| Cooling Method | Self-cooling |
| Grid Detection | DIN VDE 1026 UL1741 |
| Net Weight | 1.8kg/3.96lbs |
| Gross Weight | 2.45kg/5.4lbs |
Specification Material: Aluminum Alloy Color: Silver Model: XJ-WVC-700W Plug: US Standard Voltage: 110V Maximum Input Power: 2 × 350W Recommended Solar Panel: Power 2 × 350W, Open Circuit Voltage 30-50V Maximum Input DC Voltage: 54V Peak Power Tracking Voltage: 22-45V Operating Voltage Range: 17-50V Minimum/Maximum Starting Voltage: 22-50V Maximum DC Short Circuit Current: 40A Maximum Input Working Current: 30A Output Voltage: 120V Output Peak Power: 700W Rated Output Power: 650Watt Rated Output Current: 6.36A Rated Voltage Range: 80-160VAC Rated Frequency Range: 57-62.5Hz Power factor: >99% Number of Connections Per Series Circuit: 6 (Single-phase) Output Efficiency: 120V Static MPPT Efficiency: 99.5% Maximum Output Efficiency: 91.2% Power Loss at Night: <1W Total Wave Distortion: <5%.
