Linear MGT, DNT00068, 2510-372 MegaCode Gate Safety Edge Transmitter Kit 318MHz

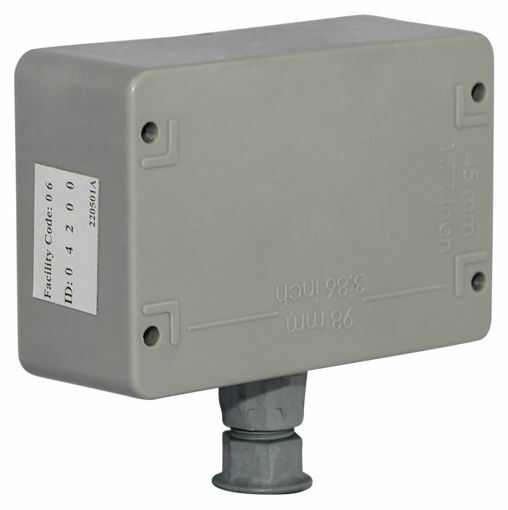

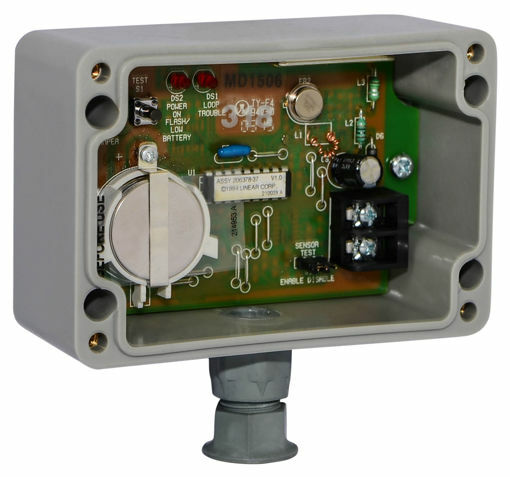

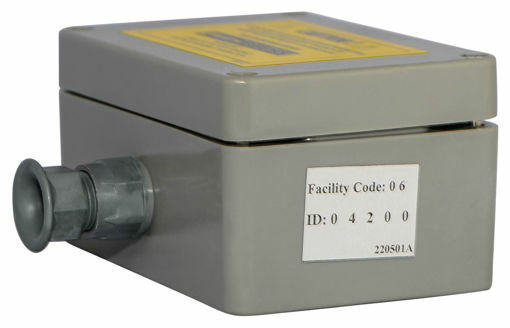

Linear MGT, DNT00068, 2510-372 MegaCode Gate Safety Edge Transmitter Kit 318MHz Linear MGT, DNT00068, 2510-372 MegaCode Gate Safety Edge Transmitter Kit 318MHz The Model MGT Gate Safety Edge Transmitter is for adding fully supervised obstacle sensing for motorized gates, doors or barrier arms in a Linear access control system. The transmitter mounts directly on the gate, door, or barrier and wires to a standard exterior safety edge sensor (for full featured compatibility, a Miller gate edge sensor with an optional .001 uF capacitor is recommended). If an object is hit during the gate closing, the sensor will present a closed circuit across the connecting wires and the MGT will transmit a message to the access controller to reverse the movement of the gate. The MGT is compatible with AE-500, AE1000Plus, AE2000Plus, and AP-5 commercial telephone entry and access controllers. It is also compatible with RE-1 and RE-2 residential telephone entry systems.The MGT is the industry’s only fully supervised gate safety edge transmitter. It automatically sends an hourly status report to the access controller, indicating battery condition and if the transmitter is operational. Should the edge sensor be disconnected, shorted, or tampered with, the MGT will report a trouble condition.The MGT transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.FeaturesSafety edge transmitterSignals access controller for stop or reverse when safety edge activatesNo cables or coiled wiresMounting hardware (4 screws) suppliedVisor clip includedPower: Two 2450 batteriesRF Frequency: 318 MHzCodes: 1,000,000+ (MegaCode format)Dimensions: 4.28″ W x 2.875″ H x 2.25″ DCompatible with AM3Plus, AE1000Plus, AE2000Plus, AE-500, RE-1, RE-2, AP-5, APeX Controller equipped gate operators, and MegaCode receiversOrder number: DNT00068MGTFrequency:318 MHzBattery Life:Up to 5 yearsColor:gray caseFull Supervision:Automatic, hourly status report to controller of battery condition, operating status, or trouble condition; tamper triggered by cover removalPower:Two 3V 2450 lithium batteries (supplied)Dimensions:4″ W x 4.28″ H x 2.2″ DModels compatible with the MGTModelDescriptionAE-500Commercial Telephone Entry System – Two DoorsAE1000PlusCommercial Telephone Entry System with Access Control – Four DoorsAE2000PlusCommercial Telephone Entry System with Access Control – Four Doors, Large ScreenAM-RPRRemote Proximity ReceiverAP-5Wireless Access Controller – Two Gate or DoorsRE-1NResidential Telephone Entry SystemRE-1SSResidential Telephone Entry SystemRE-2NResidential Telephone Entry SystemRE-2SSResidential Telephone Entry SystemWORWiegand Output Receiver Payments & Returns Policy
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | LINEAR DNT00068 |
| Compatible Brand | Linear |
| Type | Safety Edge Transmitter |
| MPN | DNT00068 |
| Frequency | 318 MHz |
| Brand | Linear |
| Manufacturer Warranty | 1 Year |
Linear MGT, DNT00068, 2510-372 MegaCode Gate Safety Edge Transmitter Kit 318MHz Linear MGT, DNT00068, 2510-372 MegaCode Gate Safety Edge Transmitter Kit 318MHz The Model MGT Gate Safety Edge Transmitter is for adding fully supervised obstacle sensing for motorized gates, doors or barrier arms in a Linear access control system. The transmitter mounts directly on the gate, door, or barrier and wires to a standard exterior safety edge sensor (for full featured compatibility, a Miller gate edge sensor with an optional .001 uF capacitor is recommended). If an object is hit during the gate closing, the sensor will present a closed circuit across the connecting wires and the MGT will transmit a message to the access controller to reverse the movement of the gate. The MGT is compatible with AE-500, AE1000Plus, AE2000Plus, and AP-5 commercial telephone entry and access controllers. It is also compatible with RE-1 and RE-2 residential telephone entry systems.The MGT is the industry’s only fully supervised gate safety edge transmitter. It automatically sends an hourly status report to the access controller, indicating battery condition and if the transmitter is operational. Should the edge sensor be disconnected, shorted, or tampered with, the MGT will report a trouble condition.The MGT transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.FeaturesSafety edge transmitterSignals access controller for stop or reverse when safety edge activatesNo cables or coiled wiresMounting hardware (4 screws) suppliedVisor clip includedPower: Two 2450 batteriesRF Frequency: 318 MHzCodes: 1,000,000+ (MegaCode format)Dimensions: 4.28″ W x 2.875″ H x 2.25″ DCompatible with AM3Plus, AE1000Plus, AE2000Plus, AE-500, RE-1, RE-2, AP-5, APeX Controller equipped gate operators, and MegaCode receiversOrder number: DNT00068MGTFrequency:318 MHzBattery Life:Up to 5 yearsColor:gray caseFull Supervision:Automatic, hourly status report to controller of battery condition, operating status, or trouble condition; tamper triggered by cover removalPower:Two 3V 2450 lithium batteries (supplied)Dimensions:4″ W x 4.28″ H x 2.2″ DModels compatible with the MGTModelDescriptionAE-500Commercial Telephone Entry System – Two DoorsAE1000PlusCommercial Telephone Entry System with Access Control – Four DoorsAE2000PlusCommercial Telephone Entry System with Access Control – Four Doors, Large ScreenAM-RPRRemote Proximity ReceiverAP-5Wireless Access Controller – Two Gate or DoorsRE-1NResidential Telephone Entry SystemRE-1SSResidential Telephone Entry SystemRE-2NResidential Telephone Entry SystemRE-2SSResidential Telephone Entry SystemWORWiegand Output Receiver Payments & Returns Policy
