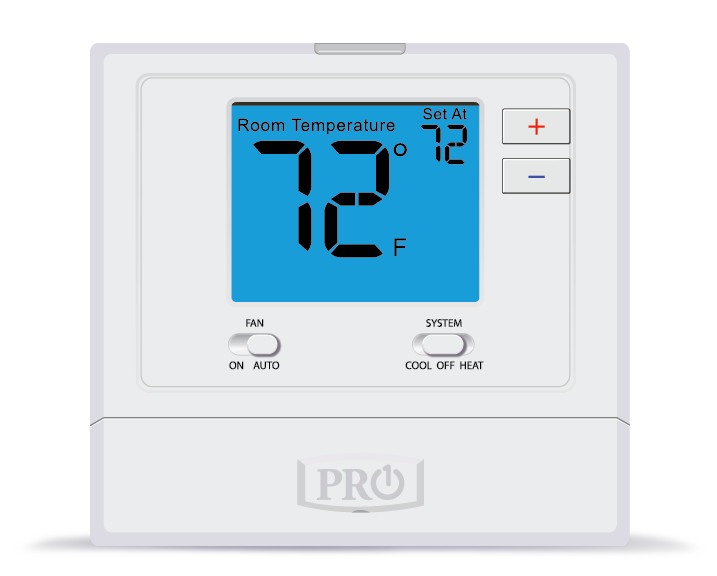

PRO1 IAQ T701 Digital Non-Programmable Thermostat, Single Stage, 1 Heat - 1 Cool
PRO1 IAQ T701 Digital Non-Programmable Thermostat, Single Stage, 1 Heat - 1 CoolProducts usually ship within 1 business day.4 sq. inch displayBlue backlightGlow in the dark light buttonEasy access battery compartmentElectric or Gas configurationSeparate heating and cooling swing (cycle rate) adjustmentsRoom temperature calibration adjustments5 minute compressor delay protection (selectable on or off)Simple private label badge systemEasy wire color coded terminal blocksUniversal sub-baseMounts on wall or junction boxBattery or 24v power SpecificationsThe display range of temperature: 41˚F to 95˚F (5˚C to 35˚C) The control temperature range:44˚F to 90˚F (7˚C to 32˚C)Load rating:1 amp per terminal, 1.5 amp maximum all terminals combinedDisplay accuracy:± 1 °FSwing (cycle rate or differential):Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°FPower source:18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteriesOperating ambient:32° to +105° (0° to + 41°C)Operating humidity:90% non-condensing maximumDimensions of thermostat:4.7"W x 4.4"H x 1.1"D
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | Emerson |
| Power Source | Battery |
| User Interface | Digital |
| Color | White |
| MPN | T701 |
| Compatible Product | Central Air Conditioner |
| Thermostat Shape | Square |
| Mounting | Wall-Mounted |
| Brand | Pro1 |
| Sensor Technology | Temperature |
| Voltage Type | Low Voltage |
| Type | Digital Room Thermostat |
| Control Style | Push Button |
| Voltage | 24 V |
| System Switching | Heat-Cool-Off |
| Model | T701 |
| Features | Adjustable Thermostat |
| Programmability | Non-Programmable |
PRO1 IAQ T701 Digital Non-Programmable Thermostat, Single Stage, 1 Heat - 1 CoolProducts usually ship within 1 business day.4 sq. inch displayBlue backlightGlow in the dark light buttonEasy access battery compartmentElectric or Gas configurationSeparate heating and cooling swing (cycle rate) adjustmentsRoom temperature calibration adjustments5 minute compressor delay protection (selectable on or off)Simple private label badge systemEasy wire color coded terminal blocksUniversal sub-baseMounts on wall or junction boxBattery or 24v power SpecificationsThe display range of temperature: 41˚F to 95˚F (5˚C to 35˚C) The control temperature range:44˚F to 90˚F (7˚C to 32˚C)Load rating:1 amp per terminal, 1.5 amp maximum all terminals combinedDisplay accuracy:± 1 °FSwing (cycle rate or differential):Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°FPower source:18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteriesOperating ambient:32° to +105° (0° to + 41°C)Operating humidity:90% non-condensing maximumDimensions of thermostat:4.7"W x 4.4"H x 1.1"D
