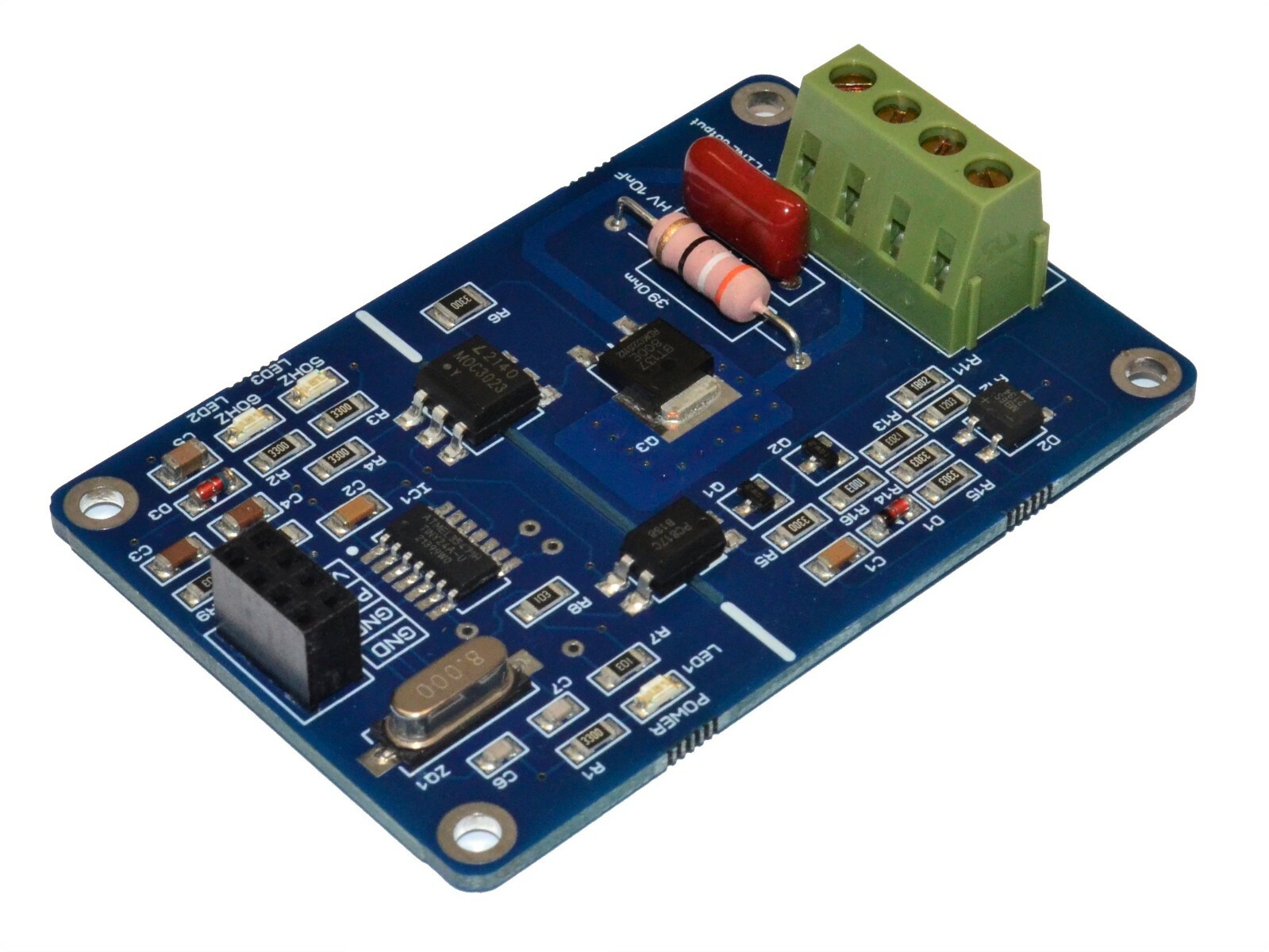

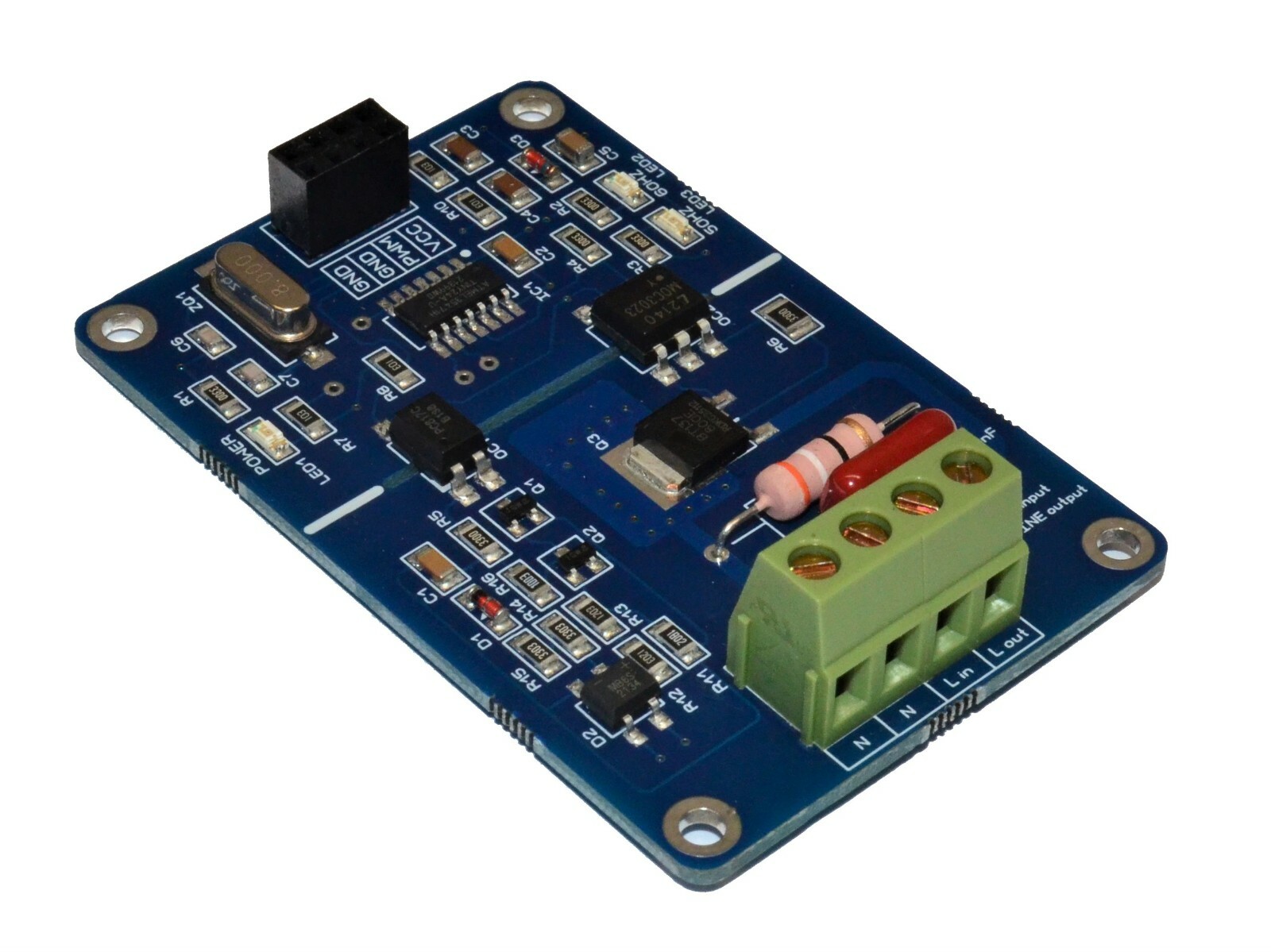

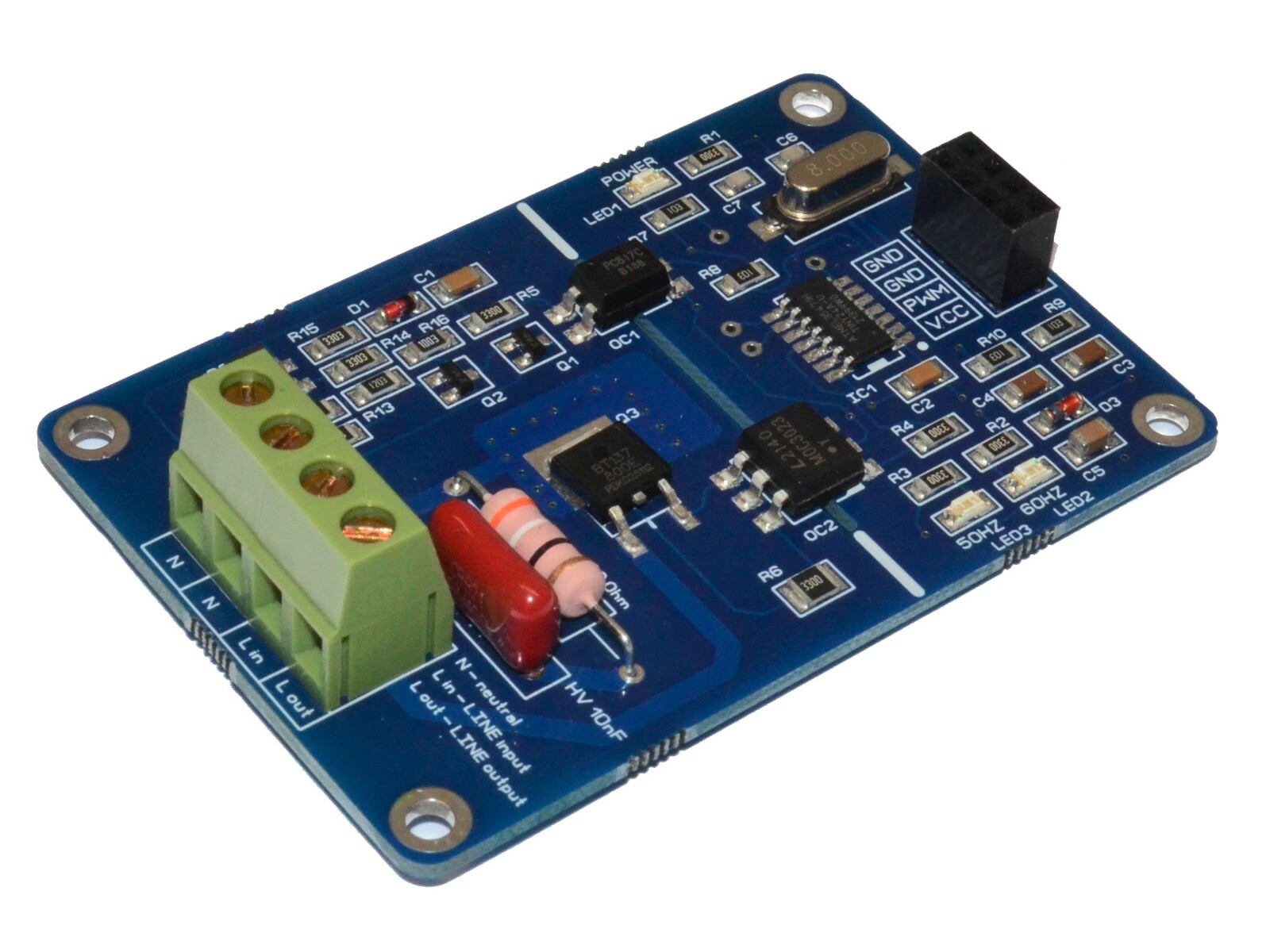

PWM AC Light Dimmer Module 50Hz 60Hz Arduino Raspberry LED Smart Home 80V-240VAC
PWM 8 Amps TRIAC MAIN VOLTAGE DIMMER This module is designed to control the intensity of incandescent lamps,AC LED dimmable bulbs, LED Strips, Power of heating elements and AC motor speedthrough a micro-controller by PWM signal or voltage level. Device specification :PCB dimensions: 50mm x 75mmMounting holes diameter: 3.2mmDistance between holes: vertical 68mm, horizontal 43mmWorking voltage 80...240VACPeak current up to 8 ApmsDevice power supply - 5V or 3.3VCompatible for 50Hz and 60Hz AC LINEAutodetect AC LINE frequency - 50Hz or 60HzPWM input signal up to 10kHzInput voltage level up to VCC (0-3.3V / 0-5V)50HZ LED - show detected 50Hz AC Line60HZ LED - show detected 60Hz AC LineBoth LED flashing - when AC Line is not detectedPOWER LED - indicate device powerOn-board Snubber circuit for triac protection, when you're controlling inductive loadLow voltage side and high voltage side is completely isolatedFully compatible with any MCU, Arduino or Raspberry boardsNOT appropriate to change the brightness of fluorescent lampsTo control LED STRIP, diode rectifier must be connected before AC INPUT.AC LOAD dimming control via firing angle method. Load wiring - https://drive.google.com/file/d/1i1qhV3xMatKr6LXPItaIIgs11PYhewd5/view?usp=sharing PWM wiring - https://drive.google.com/file/d/1cu-nlVf6ZBXQPDXaJeyv8bt0Xk_b3Bds/view?usp=sharing Resistor wiring - https://drive.google.com/file/d/1U0fQZQL_N9W4l1xI7EUOpumVyyTqzlCq/view?usp=sharing Arduino testing sketch - drive.google.com/file/d/0B6GJokXFb5oEdFAxVEItdWN2S1U/view?usp=sharing Device in action #1 - https://youtu.be/yT47lLbgLvgDevice in action #2 - https://youtu.be/IcLAhaMT4Ew
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | PWM 1CH DIMMER |
| Country/Region Of Manufacture | Latvia |
| Country//Region Of Manufacture | Latvia |
| Type | Light Dimmer |
| MPN | Does Not Apply |
| Brand | KRIDA Electronics |
| Application | Automotive |
PWM 8 Amps TRIAC MAIN VOLTAGE DIMMER This module is designed to control the intensity of incandescent lamps,AC LED dimmable bulbs, LED Strips, Power of heating elements and AC motor speedthrough a micro-controller by PWM signal or voltage level. Device specification :PCB dimensions: 50mm x 75mmMounting holes diameter: 3.2mmDistance between holes: vertical 68mm, horizontal 43mmWorking voltage 80...240VACPeak current up to 8 ApmsDevice power supply - 5V or 3.3VCompatible for 50Hz and 60Hz AC LINEAutodetect AC LINE frequency - 50Hz or 60HzPWM input signal up to 10kHzInput voltage level up to VCC (0-3.3V / 0-5V)50HZ LED - show detected 50Hz AC Line60HZ LED - show detected 60Hz AC LineBoth LED flashing - when AC Line is not detectedPOWER LED - indicate device powerOn-board Snubber circuit for triac protection, when you're controlling inductive loadLow voltage side and high voltage side is completely isolatedFully compatible with any MCU, Arduino or Raspberry boardsNOT appropriate to change the brightness of fluorescent lampsTo control LED STRIP, diode rectifier must be connected before AC INPUT.AC LOAD dimming control via firing angle method. Load wiring - https://drive.google.com/file/d/1i1qhV3xMatKr6LXPItaIIgs11PYhewd5/view?usp=sharing PWM wiring - https://drive.google.com/file/d/1cu-nlVf6ZBXQPDXaJeyv8bt0Xk_b3Bds/view?usp=sharing Resistor wiring - https://drive.google.com/file/d/1U0fQZQL_N9W4l1xI7EUOpumVyyTqzlCq/view?usp=sharing Arduino testing sketch - drive.google.com/file/d/0B6GJokXFb5oEdFAxVEItdWN2S1U/view?usp=sharing Device in action #1 - https://youtu.be/yT47lLbgLvgDevice in action #2 - https://youtu.be/IcLAhaMT4Ew
