SZMWKJ Complete 6000N Dual Axis Solar Tracker - Solar Panel Tracking Track Kits

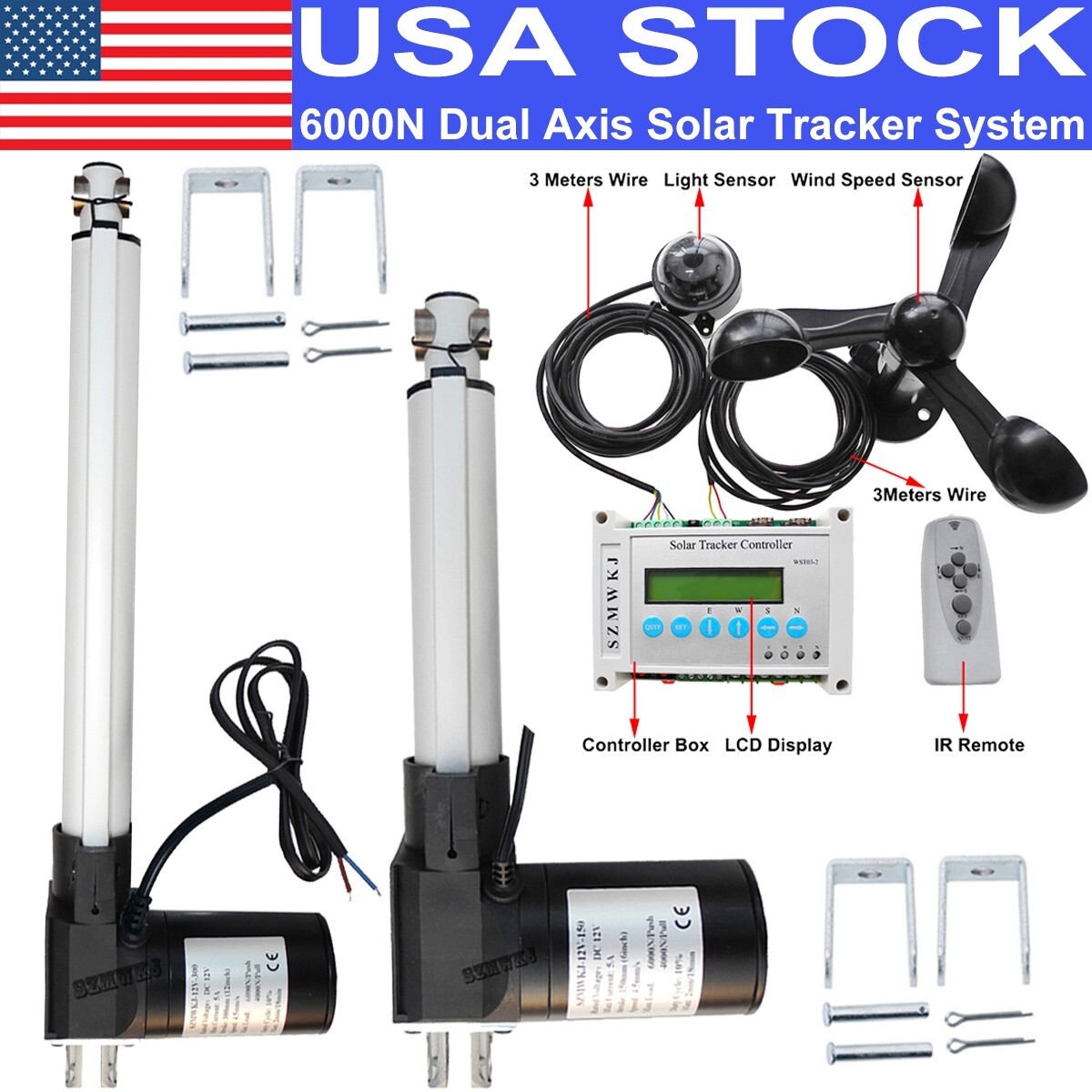

SZMWKJ Complete 6000N Dual Axis Solar Tracker - Solar Panel Tracking Track Kits SZMWKJ Complete 6000N Dual Axis Solar Tracker - Solar Panel Tracking Track Kits Here for sale is Complete Dual Axis Solar Tracker Kits, items Include 2PCS 6000N Linear Actuators&Mounting Brackets and the Electronic LCD Controller Unit you need for a dual axis solar tracker system.We also provide the wind speed sensor (Anemometer) which is matching the solar tracker controller and can make the whole system to stay in a save position in strong wind condition. Build your own frame and you will get a professional grade Dual Axis Solar Tracker System! Wiring Diagram: About the 6000N Linear Actuators: For the 6000N linear actuators, we provide 150/200/300/400/450mm Stroke Optional, here for sale is 1PCS 150mm 6" Stroke&1PCS 300mm 12" Stroke, if you need other size, Pls Click Here About the Solar Tracker Controller: This is WST03-2 Dual Axis Solar Tracker Controller, The whole unit contains the Controller Box, Light Sensor With 3 Meters Wire and IR (infrared) Remote control. The controller analyzes the signal from the light sensor, then control the motor of the corresponding direction to execute positive rotation, reverse rotation and stop, and make the platform to be aligned with the sun. Three Modes will appear during the controller's auto working, the controller will automatically switch the three modes according to different conditions. The three Modes are: Sunny Day Auto Tracking Mode, Night (Cloudy Day) Mode, Strong Wind Protection Mode. Users can set the parameters and working modes by the LCD screen for actual needs. There is an IR Remote for manual control, it can be used for testing when you assemble/use the controller the first time. Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs. We provide more instruction and detailed settings in the English User's Manual. About the Wind Speed Sensor (Anemometer) : This wind speed sensor is composed of a shell, three wind cups and a circuit module. The whole sensor has a high strength, weather resistance, corrosion resistance and water resistance, will be to ensure the long-term use of the instrument, and the accuracy of the wind speed collection. It is very suitable for outside measurement. Application: Solar tracking system: Solar photovoltaic System, solar thermal system, light guide and lighting, etc. Want more information? Additional information and detailed instructions can be found in the User's Manual Package Included: * 1PCS 6000N 150mm (6") 12V DC North/South Linear Actuator.* 1PCS 6000N 300mm (12") 12V DC East/West Linear Actuator.* 4PCS Silver Mounting Brackets W/ 4PCS Bolts and 4PCS Cotter Pins for the linear actuators.* 1PCS Electronic LCD Controller Box.* 1PCS Light Sensor with 3 Meters Wire.* 1PCS IR Remote Control (No Battery Included).* 1PCS Wind Speed Sensor.* 1PCS English User's Manual. Product Highlights of the Solar Tracker System: * Standard 1 year warranty.* Easy-installation.* Dual axis solar tracker provides up to 40% more power production.* With 2PCS 6000N/600kg/1320lbs max lift linear actuators for large/high power solar panel system.* Engineered to hold up to 2000 Watts of solar panels.* Small self–consumption. Caution: * The Input Voltage for the whole system should be DC 12V.* Never approach a solar tracker while the Solar Tracker electronics are “on”.* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.* Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker. About Shipping: * This item will be shipped out within 1-3 Business Days after confirmed payment received. * Goods in stock in USA warehouses, buyer can get the parcel around 3-5 business days. * We provide tracking number freely for all buyers. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items. * Any potential customs tax fee applied to the parcel should be covered by the buyer. On Oct 18, 2023 at 20:15:41 PDT, seller added the following information:
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Output | 15A or Less |
| System Input Voltage | DC 12V |
| Linear Actuator Stroke Length | 150mm/6 Inch |
| System Configuration | Does Not Apply |
| Warranty | Lifetime Warranty |
| Linear Actuator Max Push Load | 6000N/600KG/1320Lbs |
| Solar Technology | Solar Tracking |
| Power Source | Electricity |
| Current Rating | 15A or Less |
| MPN | Does Not Apply |
| Brand | SZMWKJ |
| Linear Actuator Speed | 4.5mm/s |
| Linear Actuator Max Pull Load | 4000N/400KG/880lbs |
| Voltage | 12 V |
| Model | DSTBW6000N-150 |
| Recommended Environment | Outdoor |
| Features | Automatically Tracking |
| Country/Region Of Manufacture | China |
| Resistance Properties | Does Not Apply |
| Application | Electronics |
| Power | Does Not Apply |
SZMWKJ Complete 6000N Dual Axis Solar Tracker - Solar Panel Tracking Track Kits SZMWKJ Complete 6000N Dual Axis Solar Tracker - Solar Panel Tracking Track Kits Here for sale is Complete Dual Axis Solar Tracker Kits, items Include 2PCS 6000N Linear Actuators&Mounting Brackets and the Electronic LCD Controller Unit you need for a dual axis solar tracker system.We also provide the wind speed sensor (Anemometer) which is matching the solar tracker controller and can make the whole system to stay in a save position in strong wind condition. Build your own frame and you will get a professional grade Dual Axis Solar Tracker System! Wiring Diagram: About the 6000N Linear Actuators: For the 6000N linear actuators, we provide 150/200/300/400/450mm Stroke Optional, here for sale is 1PCS 150mm 6" Stroke&1PCS 300mm 12" Stroke, if you need other size, Pls Click Here About the Solar Tracker Controller: This is WST03-2 Dual Axis Solar Tracker Controller, The whole unit contains the Controller Box, Light Sensor With 3 Meters Wire and IR (infrared) Remote control. The controller analyzes the signal from the light sensor, then control the motor of the corresponding direction to execute positive rotation, reverse rotation and stop, and make the platform to be aligned with the sun. Three Modes will appear during the controller's auto working, the controller will automatically switch the three modes according to different conditions. The three Modes are: Sunny Day Auto Tracking Mode, Night (Cloudy Day) Mode, Strong Wind Protection Mode. Users can set the parameters and working modes by the LCD screen for actual needs. There is an IR Remote for manual control, it can be used for testing when you assemble/use the controller the first time. Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs. We provide more instruction and detailed settings in the English User's Manual. About the Wind Speed Sensor (Anemometer) : This wind speed sensor is composed of a shell, three wind cups and a circuit module. The whole sensor has a high strength, weather resistance, corrosion resistance and water resistance, will be to ensure the long-term use of the instrument, and the accuracy of the wind speed collection. It is very suitable for outside measurement. Application: Solar tracking system: Solar photovoltaic System, solar thermal system, light guide and lighting, etc. Want more information? Additional information and detailed instructions can be found in the User's Manual Package Included: * 1PCS 6000N 150mm (6") 12V DC North/South Linear Actuator.* 1PCS 6000N 300mm (12") 12V DC East/West Linear Actuator.* 4PCS Silver Mounting Brackets W/ 4PCS Bolts and 4PCS Cotter Pins for the linear actuators.* 1PCS Electronic LCD Controller Box.* 1PCS Light Sensor with 3 Meters Wire.* 1PCS IR Remote Control (No Battery Included).* 1PCS Wind Speed Sensor.* 1PCS English User's Manual. Product Highlights of the Solar Tracker System: * Standard 1 year warranty.* Easy-installation.* Dual axis solar tracker provides up to 40% more power production.* With 2PCS 6000N/600kg/1320lbs max lift linear actuators for large/high power solar panel system.* Engineered to hold up to 2000 Watts of solar panels.* Small self–consumption. Caution: * The Input Voltage for the whole system should be DC 12V.* Never approach a solar tracker while the Solar Tracker electronics are “on”.* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.* Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker. About Shipping: * This item will be shipped out within 1-3 Business Days after confirmed payment received. * Goods in stock in USA warehouses, buyer can get the parcel around 3-5 business days. * We provide tracking number freely for all buyers. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items. * Any potential customs tax fee applied to the parcel should be covered by the buyer. On Oct 18, 2023 at 20:15:41 PDT, seller added the following information:
