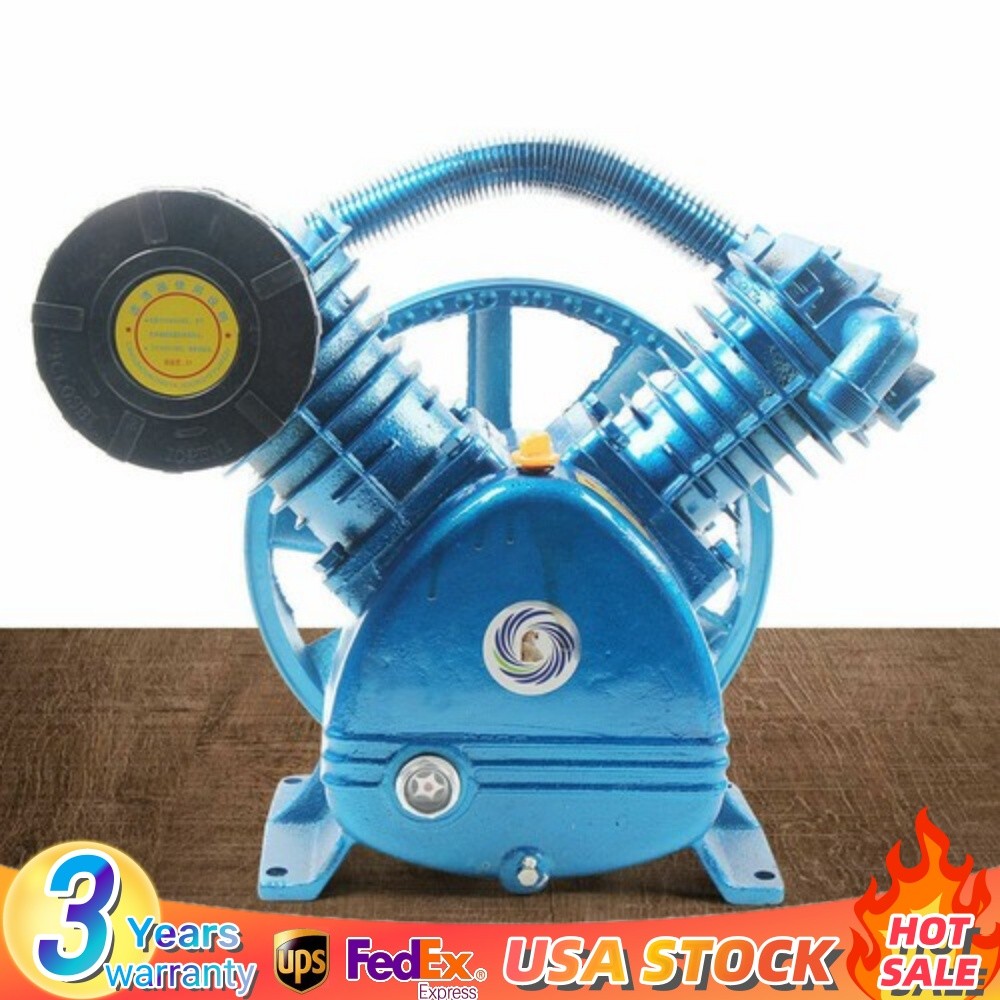

V Style Twin-Cylinder Air Compressor Pump Motor Head 2- Stage 175PSI 5HP
Specifications Color: Blue Material: Cast Iron, Aluminum, Carbon Steel Process: Painting Model: V-0.6/12.5 Compression Level: 2-Level Air Delivery: 13.6~18.7m³/H /8~11cfm Rated Pressure: 175 Psi /1.16mpa Driving Power: 4kw(5.5hp) Pump Speed: 800rpm Cylinder Diameter: 90mm/3.54in; 65mm/2.56in Rated Exhaust Volume: 0.6l/20.29oz/Min Number of Cylinders: 2 Main Engine Wheel: 34cm/13.39in Pipe Interface: 3.2cm/1.26in Product Base Size(L*W): 26*14cm/ 10.24*5.51in Hg-wmtzxl-2615-Pj Gross Weight: 6.75kg/14.88 Lbs Net Weight: 6.41kg/14.13 Lbs Hg-wmtzxl-2615 Gross Weight: 25.37kg/55.93 Lbs Net Weight: 24.1kg/53.13 Lbs Package Included 1* Air Compressor Pump Head 1* Flywheel.
Specifications
| Brand | Unbranded |
| Rated Pressure | 175 PSI |
| Driving Power | 4KW (5.5HP) |
| Pump Speed | 800RPM |
| Cylinder Diameter | 3.54" (90mm) |
| Distance of Screw Hole | 26cm*14cm (10.2"*5.5") |
| Rated Exhaust Volume | 0.6L/Min |
| Voltage | 110 V |
| Portability | Portable |
| Power Source | Corded Electric |
| Color | Blue |
| Horse Power | 5.5HP |
| Tank Material | Aluminum |
| Lubrication Type | As the description |
| Maximum Working Pressure | As the description |
| Set Includes | As the description |
Specifications Color: Blue Material: Cast Iron, Aluminum, Carbon Steel Process: Painting Model: V-0.6/12.5 Compression Level: 2-Level Air Delivery: 13.6~18.7m³/H /8~11cfm Rated Pressure: 175 Psi /1.16mpa Driving Power: 4kw(5.5hp) Pump Speed: 800rpm Cylinder Diameter: 90mm/3.54in; 65mm/2.56in Rated Exhaust Volume: 0.6l/20.29oz/Min Number of Cylinders: 2 Main Engine Wheel: 34cm/13.39in Pipe Interface: 3.2cm/1.26in Product Base Size(L*W): 26*14cm/ 10.24*5.51in Hg-wmtzxl-2615-Pj Gross Weight: 6.75kg/14.88 Lbs Net Weight: 6.41kg/14.13 Lbs Hg-wmtzxl-2615 Gross Weight: 25.37kg/55.93 Lbs Net Weight: 24.1kg/53.13 Lbs Package Included 1* Air Compressor Pump Head 1* Flywheel.
