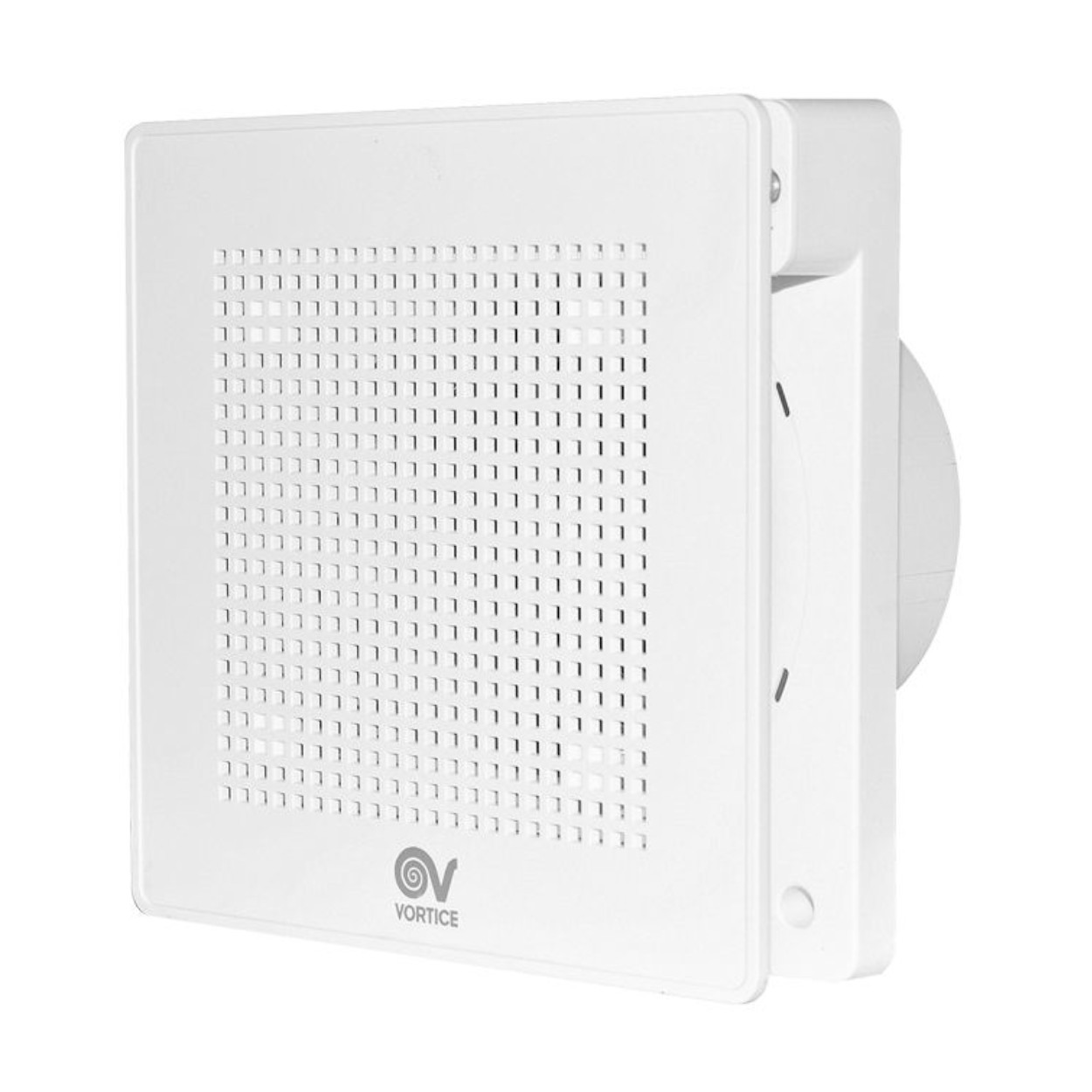

VORTICE Zone 1 Bathroom Vent Fan IP45 Axial Exhaust 100 mm 2-Speed Quiet
Dimensions and technical data 230V ~ 50Hz Housing color: white Housing material: plastic, UV-resistant, non-yellowing Nominal width: 100 mm Bearing: ball bearing Speed levels: 2 Power: 2.1/3.6W Current consumption: 0.030 / 0.041 A Revolutions per minute: 1680 / 2280 Air output: 65 / 95 m³/h Sound pressure Lp-3m: 21 / 27.8 dB(A) Total pressure Pmax: 26.5 / 50 Pa max. Fluid temperature: +50°C Protection class: IP45 Protection class: II Front cover: 159 x 159 x 77.5 mm Total depth: 132mm Diameter of pipe socket: 98 mm Weight: 0.6kg on/off via on-site switch (not included in delivery) thermal overload protection Integrated non-return flap prevents cold air from entering Mounting: wall, ceiling Use: Ventilation in small rooms, toilets, bathrooms, area 1 of wet rooms (DIN VDE 0100-701).
Specifications
| Diameter | 9,8 cm |
| Type | Exhaust Fan |
| Energy Efficiency Class | Not rated |
| Shape | Square |
| Sound Power | 28dB |
| Measuring Unit | Unit |
| Number Of Step Type Wing Bit | 5 or more |
| Height | 15,9 cm |
| Width | 15,9 cm |
| MPN | 11268 |
| Performance | 3.6W |
| Finish | Matte |
| Country Of Origin | Italy |
| Ventilation System | Exhaust Fan |
| Particle Board Nung | 230V |
| Weight | 0,6 kg |
| Brand | Vortice |
| Colour | White |
| Manufacturer | Vortice |
| EAN | 8010300112688 |
| Power Source | Ac Power |
| Time Control | Without Timer |
| Bleed Style | Continuous |
| Deep | 13,2 cm |
Dimensions and technical data 230V ~ 50Hz Housing color: white Housing material: plastic, UV-resistant, non-yellowing Nominal width: 100 mm Bearing: ball bearing Speed levels: 2 Power: 2.1/3.6W Current consumption: 0.030 / 0.041 A Revolutions per minute: 1680 / 2280 Air output: 65 / 95 m³/h Sound pressure Lp-3m: 21 / 27.8 dB(A) Total pressure Pmax: 26.5 / 50 Pa max. Fluid temperature: +50°C Protection class: IP45 Protection class: II Front cover: 159 x 159 x 77.5 mm Total depth: 132mm Diameter of pipe socket: 98 mm Weight: 0.6kg on/off via on-site switch (not included in delivery) thermal overload protection Integrated non-return flap prevents cold air from entering Mounting: wall, ceiling Use: Ventilation in small rooms, toilets, bathrooms, area 1 of wet rooms (DIN VDE 0100-701).
